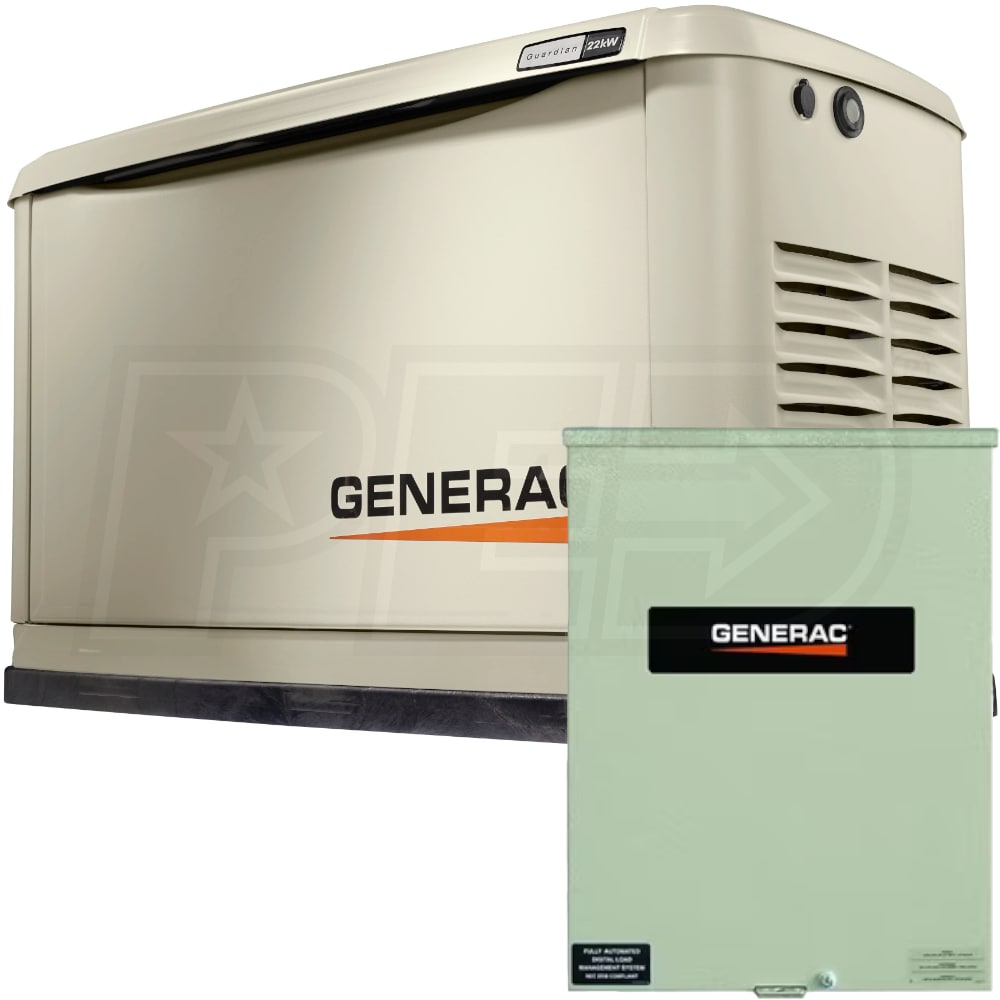

Generac Guardian® 24kW Aluminum Standby Generator System (400A Service Disconnect + AC Shedding) w/ Wi-Fi

Model:

EGD-7209-RTSW400A3

Write A Review
$8,836.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601
synchrony card logo
$133 / Month
With our 88 months 7.99% APR*
88 fixed monthly payments required.
Generac Guardian® 24kW Aluminum Standby Generator System (400A Service Disconnect + AC Shedding) w/ Wi-Fi
Generac Guardian® 24kW Aluminum Standby Generator System (400A Service Disconnect + AC Shedding) w/ Wi-Fi
Model: EGD-7209-RTSW400A3
$8,836.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

24,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    ****Please Note - Product Shown With Optional Fascia Kit***

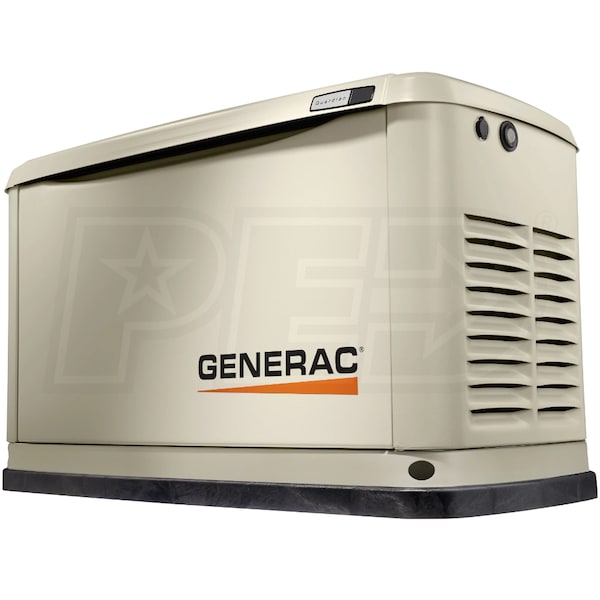

  • 24kW (LPG) / 21kW (NG) Guardian Air-Cooled Standby Generator
  • Protects your home and family during a power outage
  • Digital Power Management (DPM) protects against overload
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • 400-Amp Service Entrance Rated Automatic Smart Switch
  • Installs between main meter & service panel for faster & less costly installation
  • DPM technology allows for the Smart Control of (4) A/C units
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Add Up To (8) Generac Load Managers (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • 5-Year Limited Warranty + 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • Generac's G-Force Engine
  • Specifically designed for the demanding environment standby generators endure
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • True Power Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ 2.0 Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Quiet-Test™ Self-Test Mode
  • Low RPM, 5 or 12 minute test for reduced noise and fuel consumption
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additional Features:
  • Flexible fuel line and Direct-To-Dirt composite mounting pad
  • Built-in Battery Charger (Battery Sold Separately)
  • Product Includes
    • (1) Generac Guardian® 24kW Aluminum Home Standby Generator w/ Wi-Fi (7209)
    • (1) Generac 400-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect) (RTSW400A3)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Generac Guardian® 24kW Aluminum Home Standby Generator w/ Wi-Fi (7209)
  • (1) Generac 400-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect) (RTSW400A3)
EGD-7209-RTSW400A3
specs product image PID-124747
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
455 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
21000 Watts
LP Power Capacity
24000 Watts
NG Fuel Consumption @ 50% Load
206 ft³/hr
NG Fuel Consumption @ 100% Load
306 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
100 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
400-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
455 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
21000 Watts
LP Power Capacity
24000 Watts
NG Fuel Consumption @ 50% Load
206 ft³/hr
NG Fuel Consumption @ 100% Load
306 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
100 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
RTSW400A3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
22 Inches
Product Height
10 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
