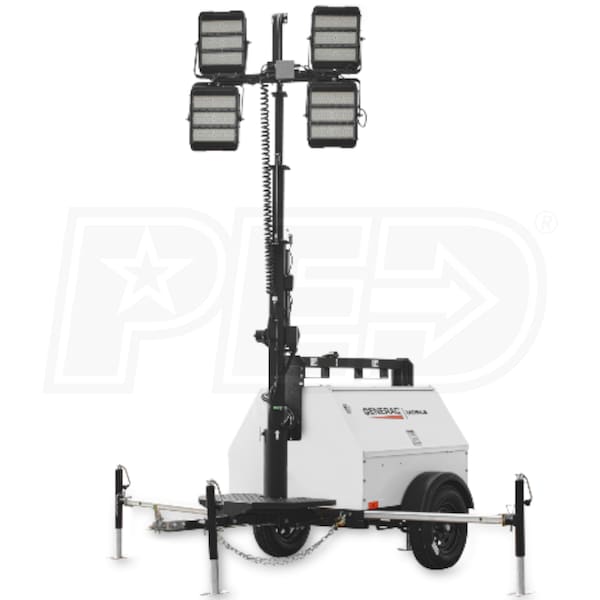

Generac MLT4080KV-STD - 8kW Towable Diesel Vertical Mast LED Light Tower w/ Kubota Engine & Electric Winch

Model:

MLT4080KVLED-STD4

Write A Review
$17,599.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$264 / Month
With our 88 months 7.99% APR*
88 fixed monthly payments required.
Generac MLT4080KV-STD - 8kW Towable Diesel Vertical Mast LED Light Tower w/ Kubota Engine & Electric Winch
Generac MLT4080KV-STD - 8kW Towable Diesel Vertical Mast LED Light Tower w/ Kubota Engine & Electric Winch
Model: MLT4080KVLED-STD4
$17,599.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Grade

Professional

Style

Tow-Behind

Run Watts

8,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Kubota

  • MLT4080KV-STD - 8kW Vertical Mast Light Tower (Kubota® / Electric Winch)
  • Designed & engineered for optimum performance, reliability and longevity
  • 4 x 320-Watt LED Luminaires (Lm/fixture: 47,000) 188,000 Total Lumens
  • Coverage at 0.5 ft-c or more: 28,040 ft2 (2,605 m2)
  • Aluminum and polymer housing; IP68 LED modules; IP65 rated drivers
  • Fixture-mounted drivers; Friction disc mounting for tool-free positioning
  • 23-Foot, 5-Section Vertical Mast w/ Electric Winch
  • Allows for quick setup, Raises mast in 15 seconds
  • Vertical mast allows for more compact storage and transportation
  • 359° Ground-Level Mast/Fixture Rotation w/ Locking System
  • Distinctive angle fixture mount for common light distribution
  • 1.12L Kubota® D1105 Liquid Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • 56-Gallon Polyethylene Internal Fuel Tank
  • Provides up to 165 hours of run time with all 4-lights "On"
  • 3.5" Fill port for easier access
  • 120/240V - 66/33A Marathon Electric Brushless Alternator
  • Robust design provides up to 8 kW of standby output
  • (2) 120V 20A GFCI Duplex Outlet & (1) 240V 30A (L6-30R) Twistlock Outlet
  • Individually breakered for added safety during operation
  • 14-Gauge Steel Enclosure - 68 dB(A) @ 23'
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Multi-lingual operating/safety decals; Manual holder w/ operating manual
  • Tubular Steel Trailer w/ 48" Removable Tongue
  • (4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position
  • Front step platform for easy adjustment of light fixtures
  • DOT Approved Tail, Side, Brake and Directional Lights
  • 2200 lb. Leaf spring axle; Single wall polyethylene fenders
  • 13" ST175/80D13 - 6 ply wheel/tire; 56" Axle Span
  • 2" Ball hitch & safety chains w/ spring loaded safety hooks
  • Includes Starting Battery
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 2-Year / 2,000 Hour Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
MLT4080KVLED-STD4
specs product image PID-76327
General Information
Product Category
Light Tower
Overview
Product Category
Light Tower
Weight
1720 Pounds
Certification
EPA Tier 4
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Light Tower
Product Length
113 Inches
Product Width
70 Inches
Product Height
102 Inches
Additional Model Numbers

MLT4080KV-STD, MLT4080KVLED-STD4

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
66/33 Amps
Tank Size
56 Gallons
Fuel Tank Material
Plastic
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
HP
15.4 HP
CC
1120 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
