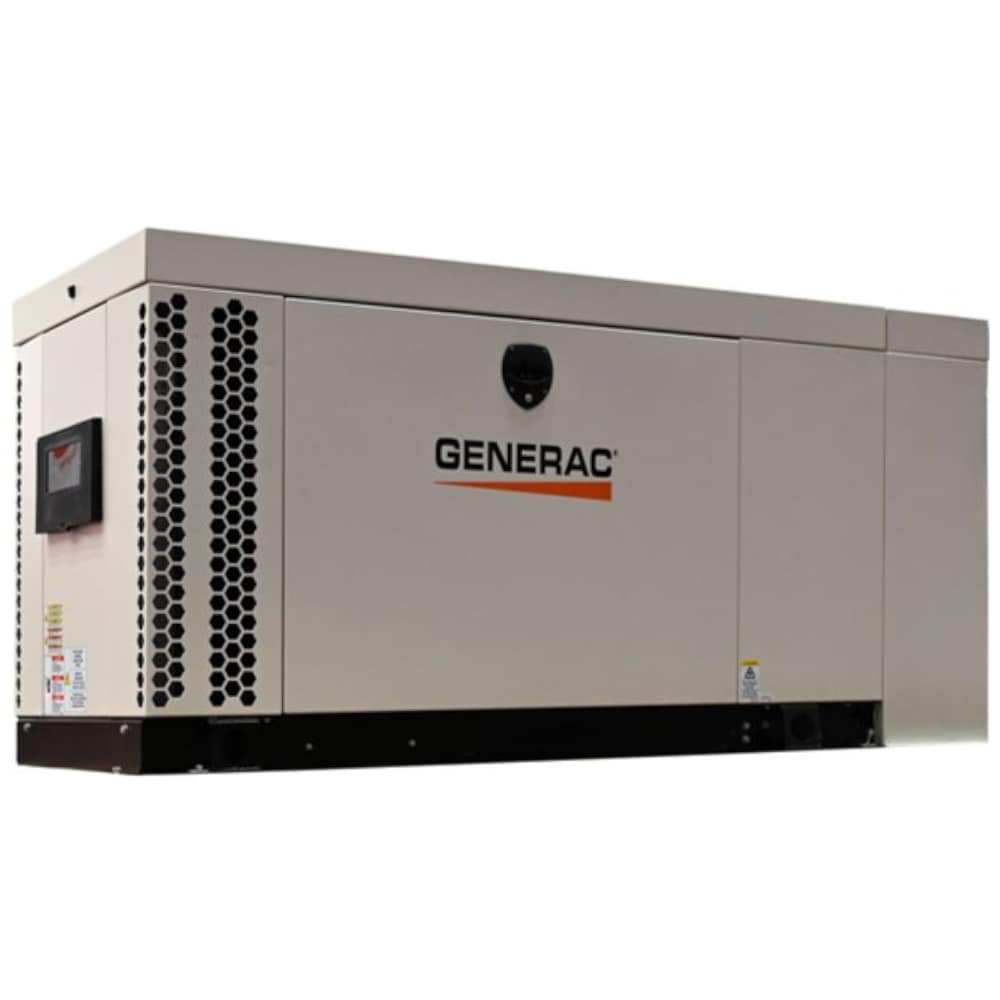

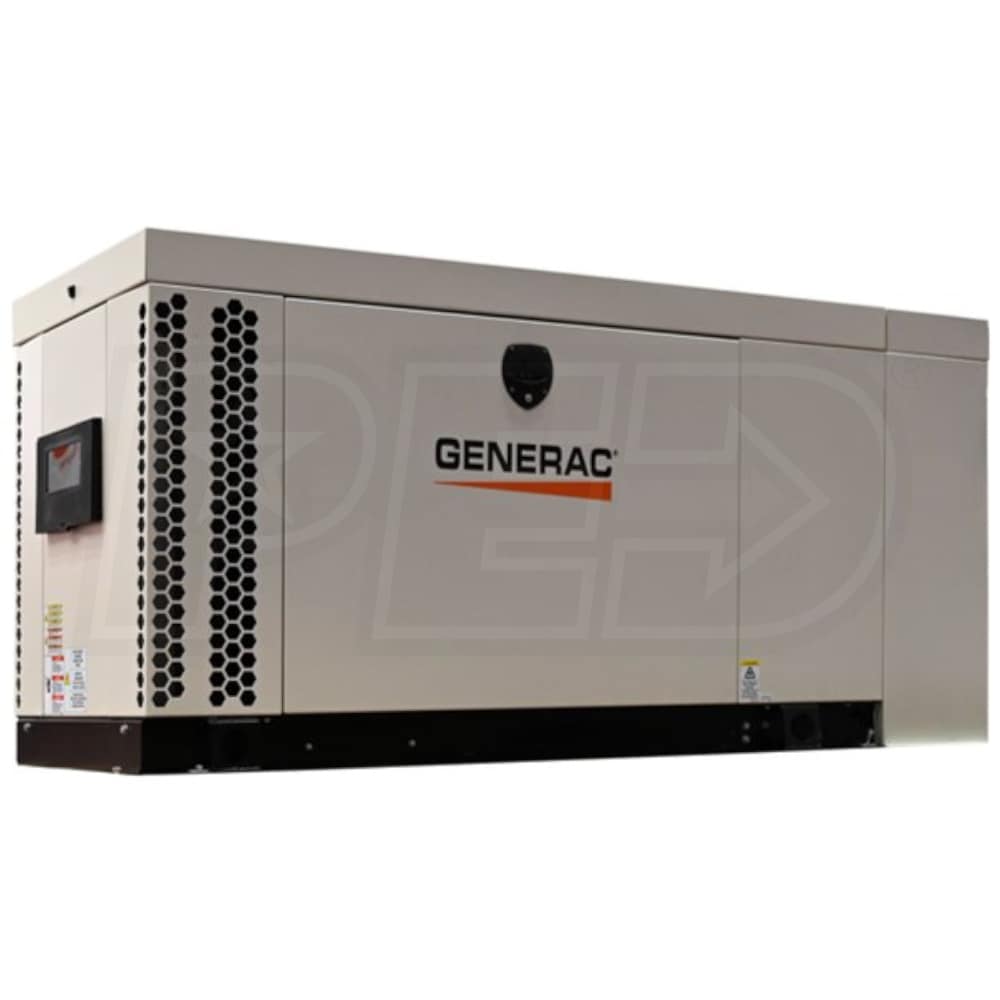

Generac Protector® RA Series 30kW Automatic Extended Run Standby Diesel Generator w/ Mobile Link™ (120/240V 3-Phase)

Model:

RA03022JDAL

Write A Review
$18,677.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$281 / Month
With our 88 months 7.99% APR*
88 fixed monthly payments required.
Generac Protector® RA Series 30kW Automatic Extended Run Standby Diesel Generator w/ Mobile Link™ (120/240V 3-Phase)
Generac Protector® RA Series 30kW Automatic Extended Run Standby Diesel Generator w/ Mobile Link™ (120/240V 3-Phase)
Model: RA03022JDAL
$18,677.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

30,000 Rated Watts

Voltage

120/240 Three-Phase

Fuel

Diesel

Engine

Perkins

    ^Please Note - Requires Loading Dock or Forklift For Delivery^

    BASE TANK IS NOT DISPLAYED IN PRODUCT IMAGE
  • Generac RD03022JDAL - Protector® RA Series Extend Run Diesel Standby Generator
  • For light commercial applications w/ 120/240V 3-Phase service
  • Fully Automatic Operation When Paired w/ Generac ATS
  • Generator is only compatible with Generac Auto Transfer Switches
  • Mobile Linkâ„¢ and Fleet Standard Cellular Connectivity
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection
  • True Power Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Perkins 2.2L In-Line Turbocharged 4-Cylinder Diesel Engine
  • Fuel efficient design runs at 1800 RPM for long engine life
  • 250-Hour Oil service interval for lower maintenance costs
  • Integrated, Extended-Run, 130-Gallon Double-Wall Base Fuel Tank
  • Provides up to 100 hours of run time @ 1/2 load
  • Power Zone 410 Controller
  • LCD Display provides service & maintenance intervals
  • Optional NFPA 110 Controller Kit (Not Included)
  • Quiet-Test™
  • Runs at a lower RPM, is quieter and consumes less fuel
  • Isochronous Electronic Governor Control
  • Precise load response & voltage/frequency regulation (±1%)
  • Corrosion-Resistant Aluminum Enclosure
  • Enhanced durability, ideal for coastal & salt-water environments
  • Sound dampening design limits sound pressure to a low 70dB(A)
  • Code Ready - Compatibility With A Variety Of Environments
  • External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
  • UL/CUL 2200-Listed Generator - 5-Year / 2000-Hour Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RA03022JDAL
specs product image PID-157360
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
2463 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
96 Inches
Product Width
35 Inches
Product Height
73.8 Inches
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Fuel Type
Diesel
Rated Amps
90 Amps
Diesel Fuel Consumption @ 50% Load
1.37 gallons/hr
Tank Size
61 Gallons
Run Time @ 50% Load
41.6 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Perkins
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
