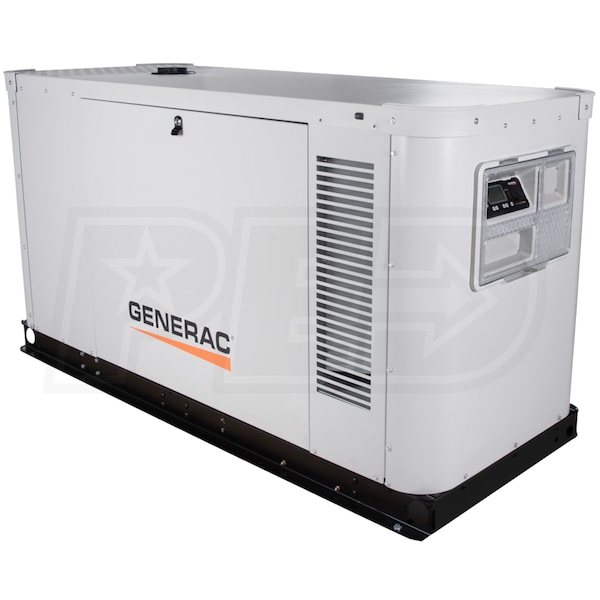

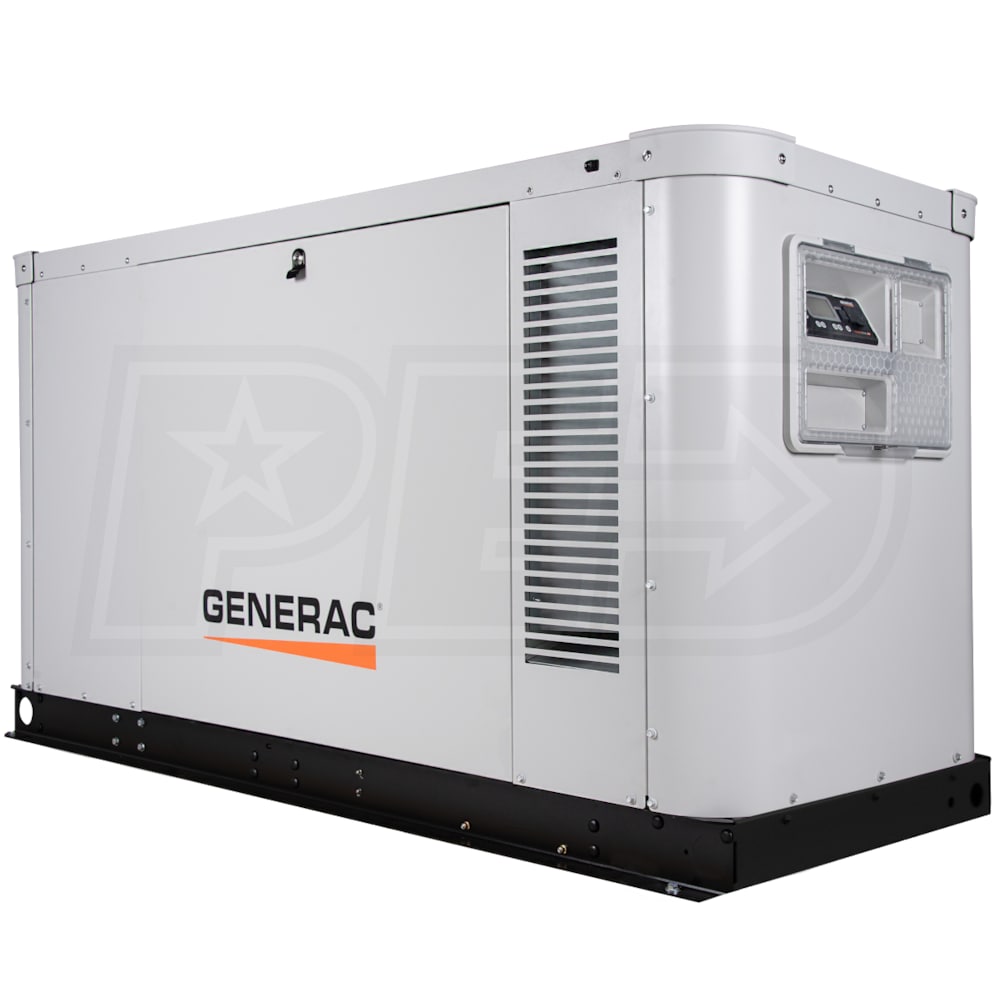

Generac Protector® XG Series 40kW Automatic Standby Generator (Premium-Grade) w/ Cellular Mobile Link™ (120/240V Single-Phase) (48-State)

Model:

XG04045ANAX

Write A Review
$17,216.85
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability December 23, 2024
Shipping to60601
synchrony card logo
$259 / Month
With our 88 months 7.99% APR*
88 fixed monthly payments required.
Generac Protector® XG Series 40kW Automatic Standby Generator (Premium-Grade) w/ Cellular Mobile Link™ (120/240V Single-Phase) (48-State)
Generac Protector® XG Series 40kW Automatic Standby Generator (Premium-Grade) w/ Cellular Mobile Link™ (120/240V Single-Phase) (48-State)
Model: XG04045ANAX
$17,216.85
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

40,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • 40kW Protector® XG Series Premium-Grade Standby Generator
  • Designed for luxury homes & small commercial buildings
  • Runs Off Natural Gas or LP Fuel Source
  • Now controller is selectable for easier installation

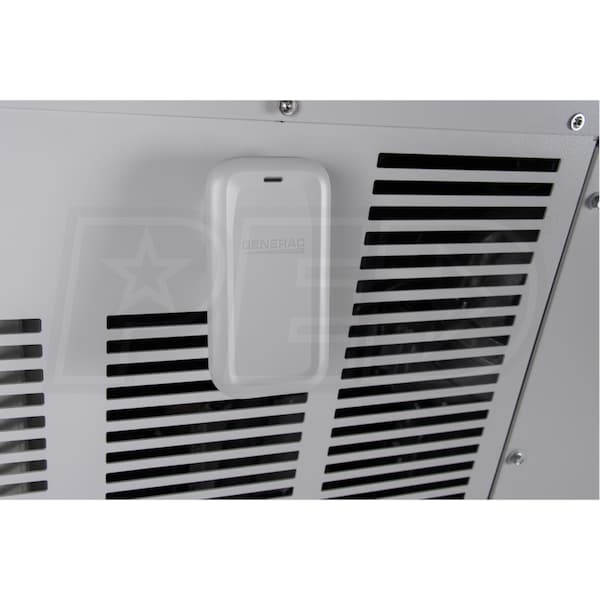

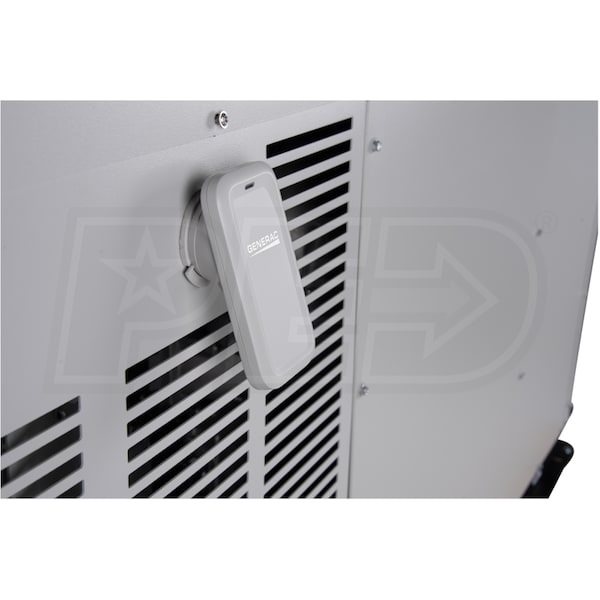

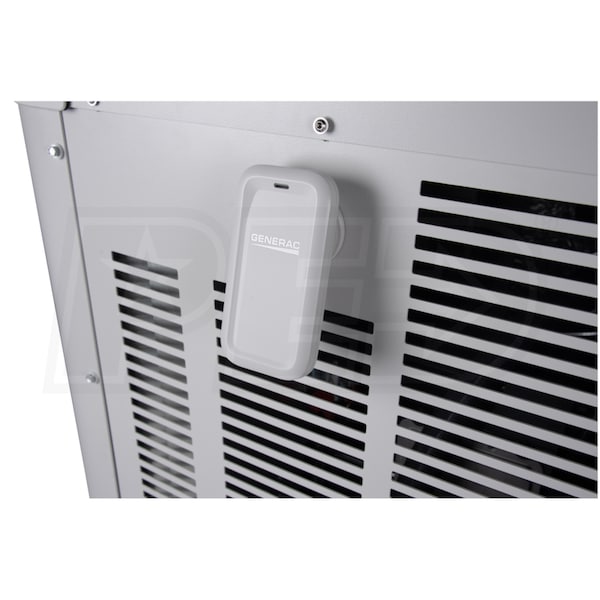

  • Mobile Link™ and Fleet Standard Cellular Connectivity
  • Monitor generator status on a smart phone, tablet or PC
  • 5-Year Limited Warranty + 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • True Power Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Quiet-Test™
  • Low-speed exercise mode for quieter weekly tests; 58 dB @ 23'

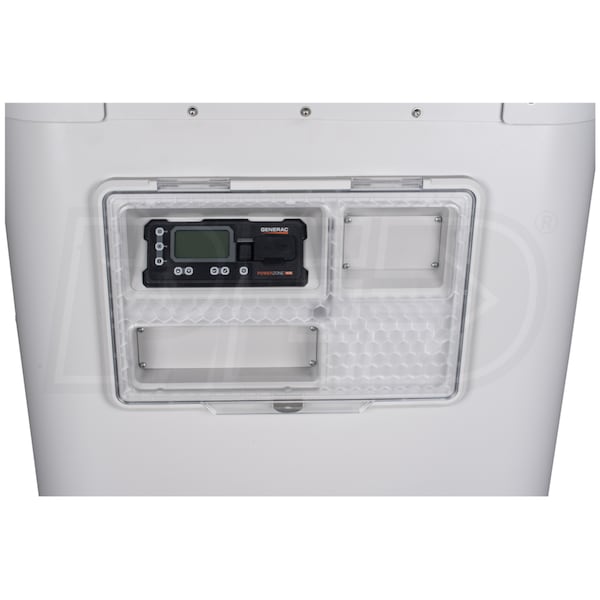

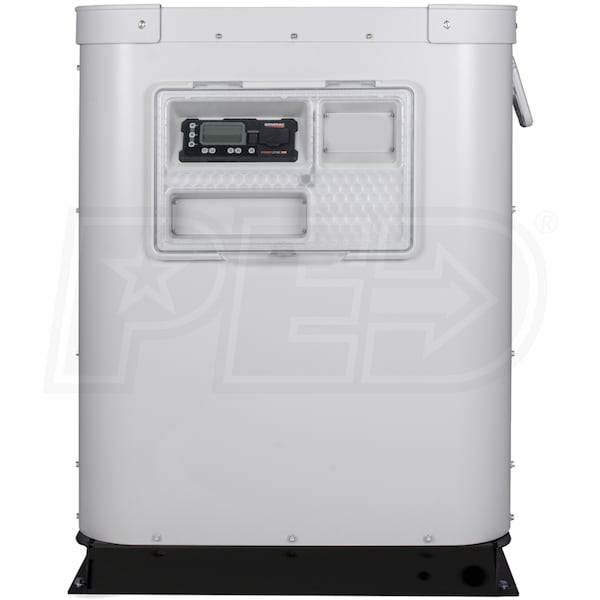

  • Power Zone 410 Controller
  • LCD Display provides service & maintenance intervals
  • NFPA 110 Capable

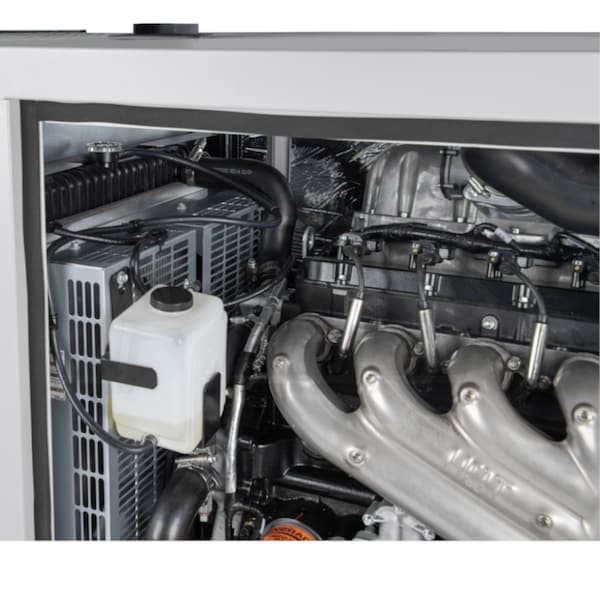

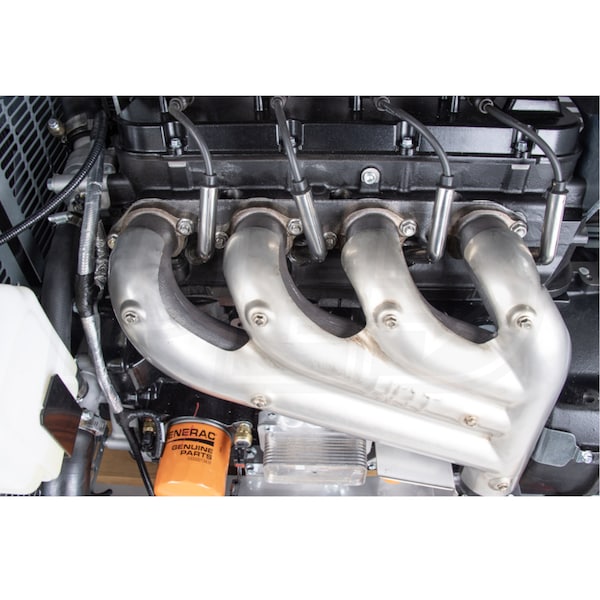

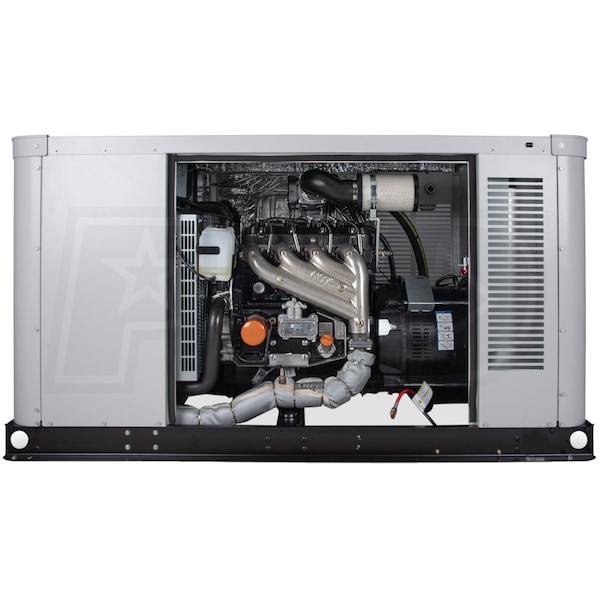

  • 4.5L Inline 4-Cylinder, Automotive-Style Engine
  • Operates at half the speed of other engines (1800 vs 3600 RPM)
  • Hydraulic lifter helps minimize maintenance costs
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
  • Lockable, external viewing window for quick status check
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
  • Additional Features:
  • Built-in Battery Charger (Battery Not Included)
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Non-SCAQMD Compliant - Not For Sale In CALIFORNIA
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

XG04045ANAX
specs product image PID-151637
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1781 Pounds
CARB Compliant
No
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
83.4 Inches
Product Width
34 Inches
Product Height
45.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
40000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
40000 Watts
LP Power Capacity
40000 Watts
NG Fuel Consumption @ 50% Load
289 ft³/hr
NG Fuel Consumption @ 100% Load
494 ft³/hr
LP Fuel Consumption @ 50% Load
3.8 gallons/hr
LP Fuel Consumption @ 100% Load
5.7 gallons/hr
Rated Amps
167 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
58 Test (64 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
200 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac
Starting System
12v Auto Start
CC
4500 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
