Features
Type
Standard
Amp Rating
200
Load Mgmt.
Voltage
120/208 Three-Phase
Enclosure
NEMA 3R
- 3-Phase Automatic Transfer switch
- Only works with 120/208 3-Phase generators
- Fully Automatic Operation
- Standard Installation
- May require a sub-panel or disconnect for serviceability
- Larger Applications
- Nema 3R Aluminum Enclosure
- For Use With Generac Generators Only
- UL Lilsted 2200
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RTSN200G3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
49 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
24 Inches
Product Width
20 Inches
Product Height
7.25 Inches
UPC
696471615180
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Reviews
Generac RTSN200G3 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Jared, the Generator Expert
How-To Articles
How To Pick the Perfect Automatic Transfer Switch
I recently spoke with someone who wanted to back up their home with a standby g...
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Manual Transfer Switch
During a sudden power outage, you probably don’t feel like running multip...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

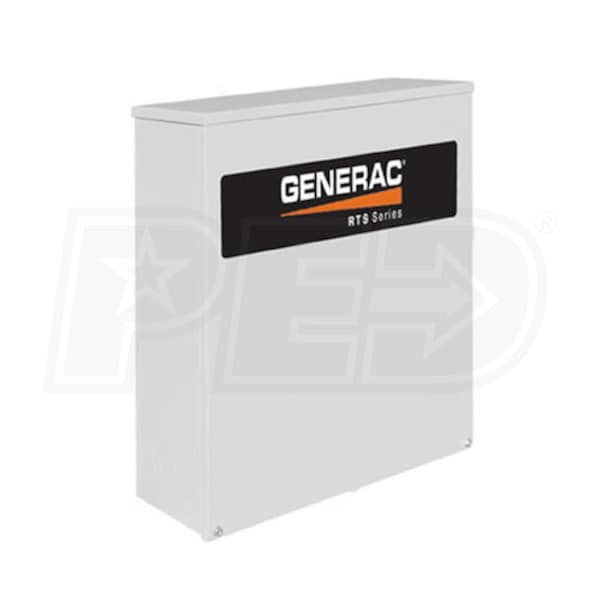

Generac 200-Amp Automatic Transfer Switch (120/208V 3-Phase)
