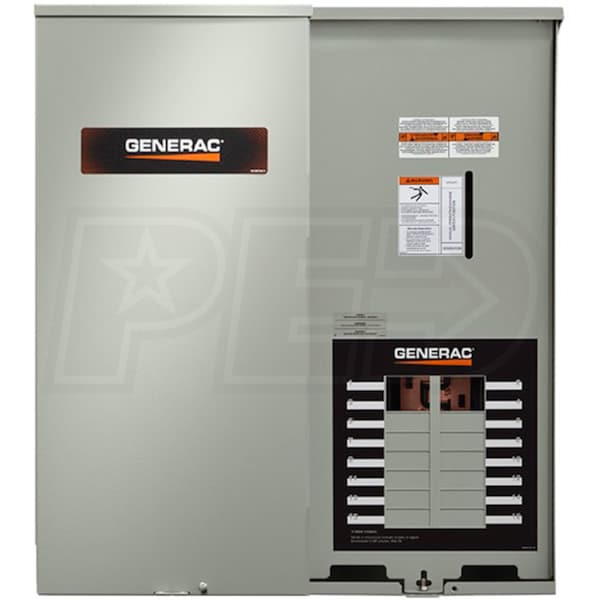

Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center

Model:

RXG16EZA3

Write A Review
$589.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
synchrony card logo
$99 / Month
Suggested monthly payments with 6 month financing.
Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model: RXG16EZA3
$589.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Load Center

Amp Rating

100

Circuits

16

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Generac 100-Amp Outdoor AutomaticTransfer Switch
  • Designed to operate with Generac air-cooled generators (7-16kW Only)
  • 16-Circuit Integrated Load Center For Essential Circuit Backup
  • For large main service & only partial generator backup
  • Also when main electrical breaker panel is located outdoors
  • 16-Circuit Breaker Panel (Breakers Not Included)
  • Use with Siemens, Eaton, or Square D 1-Inch breakers
  • Expandable to 24-Circuits
  • Bottom (4) breaker spaces will accommodate tandem breakers
  • UL/CUL Listed
  • Suitable for use in optional standby systems (NEC702)
  • Aluminum NEMA 3R Indoor/Outdoor Enclosure
  • Electrostatically applied & baked powder paint to resist corrosion
  • Heavy Duty Generac Contactor - Rated @ 250 VAC - 1P
  • UL recognized device, designed for years of service
  • *Note - Generator controller handles all timing, sensing & exercise
  • Tech Spec: Only For Use w/ Generac Air-Cooled Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 10,000 Amps --- Lug Range: 1/0 - #14
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXG16EZA3
specs product image PID-77439
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
39 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
30.1 Inches
Product Width
13.5 Inches
Product Height
6.91 Inches
UPC
696471069907
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
16000 Watts
UL Listed
Yes
