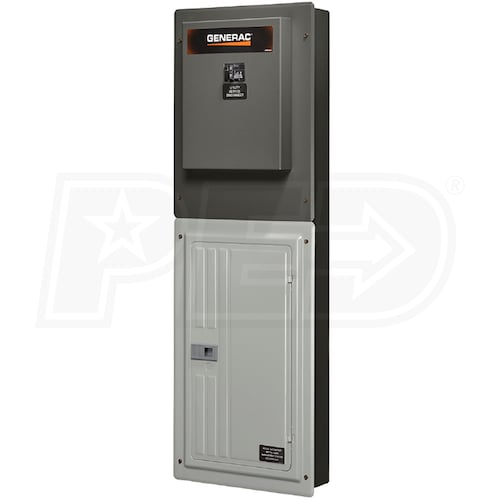

Generac 100-Amp GenReady™ Automatic Transfer Switch & Load Center w/ Power Management (Service Disconnect)
Model:
RXG24SHA1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
7
Model: 0K06950SRV
$30.49
In-Stock
Model: 7000
$152.99
In-Stock
$120.99
Only 3 In-Stock
Model: 5703
$26.99
In-Stock
Model: 0J5141
$109.99
In-Stock
$26.99
Factory-Direct
$319.99
In-Stock
Features
Type
Service Disconnect
Amp Rating
100
Circuits
24
Voltage
120/240 Single-Phase
Enclosure
NEMA 1R
Generac 100-Amp GenReady™ Automatic Transfer Switch & Load Center w/ Power Management (Service Disconnect)
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Generac 100-Amp GenReady™ Automatic Transfer Switch & Load Center
- Ideal during new construction or major electrical retrofit
- Compatible with Evolution or Nexus generator controllers
- 100-Amp Main Circuit Breaker
- Designed for single-phase operation
- 24-Space Main Load Center (Breakers Not Included)
- 40 Circuit capacity with the use of tandem breakers
- Accepts GFCI, AFCI and tandem breakers
- For use with Siemens, Murray, Square D and Eaton 1" breakers
- 100-Amp Automatic Transfer Switch
- Service-entrance rated for reduced installation costs
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Manage Up To (4) Individual HVAC Loads - No Hardware Req.
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Up To (8) Generac Load Managers (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- NEMA 1 Indoor Rated Enclosure
- Flush-mount design with electrostatically applied & baked powder coat paint
- Installation Flexibility
- Multiple GenReady™ panels can be supported with a single generator
- Allows for the generator to be installed at a later time
- Tech Spec Summary: Only For Use w/ Generac Generators
- UL67 & UL1008
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXG24SHA1
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
47 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Depth
4.84 Inches
Product Width
15.5 Inches
Product Height
45.14 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Max Circuits
40
Enclosure
NEMA 1R
Number of Circuit Breakers
24
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
