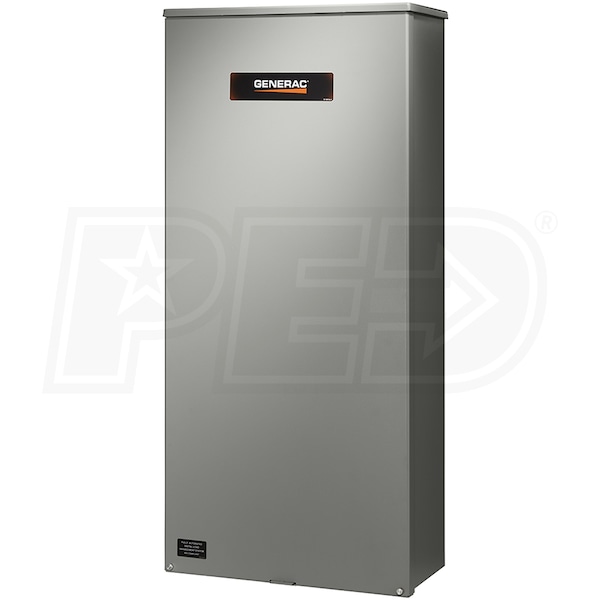

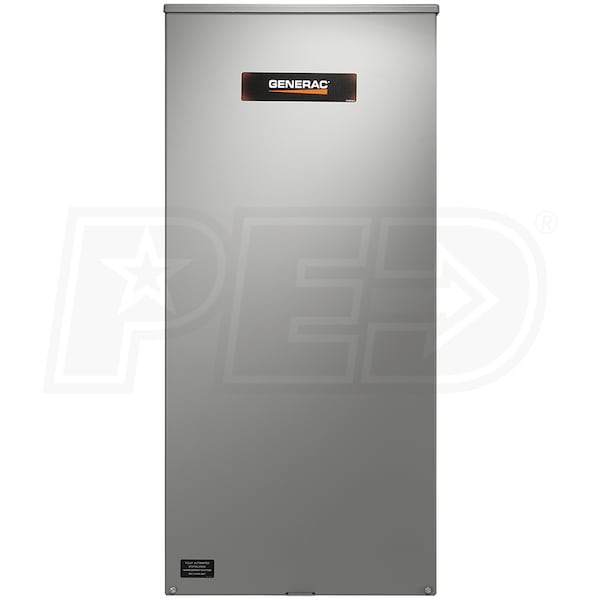

Generac 200-Amp Automatic Smart Transfer Switch & 20-Circuit Load Center w/ Power Management (Service Disc.)

Model:

RXGW20SHA3

Write A Review
$1,299.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$217 / Month
Suggested monthly payments with 6 month financing.
Generac 200-Amp Automatic Smart Transfer Switch & 20-Circuit Load Center w/ Power Management (Service Disc.)
Generac 200-Amp Automatic Smart Transfer Switch & 20-Circuit Load Center w/ Power Management (Service Disc.)
Model: RXGW20SHA3
$1,299.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Service Disconnect

Amp Rating

200

Circuits

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Generac 200-Amp Auto Smart Transfer Switch w/ Power Management
  • Compatible with Evolution™ or Nexus™ generator controllers
  • Improved Design
  • 35% Smaller footprint & greater branch circuit capacity
  • Integrated 20-Circuit Load Center (Breakers Not Included)
  • 40-Circuit capacity with the use of tandem breakers
  • For use with Siemens, Murray, Square D and Eaton 1" breakers
  • Accepts GFCI, AFCI and tandem breakers
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Req.
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Generac Load Managers (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: 2/0 - #14
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXGW20SHA3
specs product image PID-99689
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
45 Pounds
Certification
ETL
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
38.5 Inches
Product Width
17 Inches
Product Height
8 Inches
UPC
696471076219
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Max Circuits
20
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
