Features
Type
Standard
Amp Rating
200
Load Mgmt.
Built-In
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R

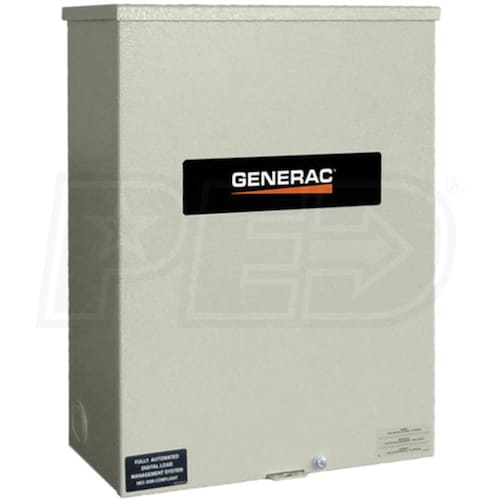

- Generac 200-Amp Automatic Transfer Switch w/ Power Management
- Compatible with Evolution or Nexus generator controllers
- Designed For Standard Installation
- Requires a sub-panel for overload protection
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Be Smart....Get More Out Of Your Generator
- Cycles power on and off as needed for different appliances
- Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Up To (8) Generac Load Managers (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- NEMA 3R Indoor/Outdoor Rated
- Steel, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (Gray)
- Tech Spec Summary: Only For Use w/ Generac Generators
- Load Transition Type: Open Transition
- Withstand Rating: 10,000 Amps --- Lug Range: 250 MCM - #6
- 5-Year Limited Warranty - UL Listed
- *Please Note* - No Inner Dead Front Cover Included
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXSC200A3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
22.5 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
20 Inches
Product Width
14.6 Inches
Product Height
7 Inches
UPC
696471069617
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Reviews
(12)
Generac RXSC200A3 Reviews & Ratings
Customer Rating
4.75
(12 Ratings)
5
(9)
(9)4(3)
(3)3(0)
(0)2(0)
(0)1(0)
(0)
Good Deal
By Brett G
Oklahoma
Purchased 07/27/2023 |
Review Posted 08/18/2023
Fair price with fast shipping, all in all a very good deal.
Brett G Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Second Transfer Switch
By Stephen O
Wisconsin
Review Posted 02/07/2023
I bought this transfer switch to stand beside a switch that came with generac generator. Installation was simple as guided and worked perfectly as expected. I received the unit sooner than expected. Very pleased.
Stephen O Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, High Quality
Cons:
None
Generators Direct
By Elizabeth N
Virginia
Review Posted 10/19/2022
The price and quick service (delivery) was outstanding. Made the purchase on a Thursday afternoon. The transfer equipment was delivered the next day (Friday) and the unit and battery were delivered 3 days later on Monday. What more can I say?
Elizabeth N Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
5/5
Cons:
None
Very Impressive
By Joe
Wisconsin
Review Posted 07/05/2022
Ordered Friday afternoon, it was delivered Saturday afternoon. Couldn't be happier or more impressed with the service from Electric Generators Direct. Thank you.
Joe Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, High Quality
Cons:
None
Generac 200 Amp Transfer Switch
By Martin W.
Welling, Oklahoma
Purchased 11/24/2020 |
Review Posted 04/14/2021
Has been installed works well. It was installed with a older 20 kw generator. So far working like it should.
Martin W. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Light Weight
Replacement For Original Transfer Switch
By Jeff S.
St. Charles, Illinois
Purchased 03/23/2020 |
Review Posted 05/05/2020
The mounting was larger, but having deeper dimensions, it helped with installation of 1 1/4 conduit
Jeff S. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the rating, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Exceeded Expectations, Features, Id Buy It Again
Generac 200-Amp Automatic Smart Transfer Switch
By Robert T.
Hackensack, New Jersey
Purchased 11/12/2019 |
Review Posted 01/03/2020
The back plate take too much space and there is no room for the pipe to come in on the back.
Robert T. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the rating, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).
Rating Breakdown
4/5
4/5
4/5
3/5
Pros:
Easy To Use, Light Weight, Id Buy It Again
Cons:
Packaging
Good Replacement For 100 Amp Load Center Transfer Switch
By Steven B.
HOWELL, Michigan
Purchased 07/22/2019 |
Review Posted 09/23/2019
We purchased this transfer switch to upgrade the 100 Amp load center that came with our Generac generator purchased from Power Equipment Direct in 2014. Now instead of only having some circuits backed up our whole house supply transfers over automatically. PED had the best online price. Installation was straightforward and the instructions were clear.
Steven B. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the review, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Features, High Quality
Cons:
Packaging
Good Product, Good Company.
By Norman C.
Plainview, Arkansas
Purchased 03/18/2019 |
Review Posted 04/08/2019
Can't give any more Stars for performance as I haven't purchased my generator yet, but I think it will be just fine. Wanted to hook everything up ready so I didn't need to get the utility company back to pull the meter. Ordered it over the phone as I had a couple of questions. Helpful and knowledgeable staff.
Norman C. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the great review, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).
Rating Breakdown
5/5
5/5
1/5
5/5
Pros:
Price, Easy To Use
Final Inspection Should Have Caught This!
By Bernie S.
Bonita Springs, Florida
Purchased 07/18/2018 |
Review Posted 09/24/2018
Great little switch but factory should make sure the little spade connectors make tight contact. The commercial power control leads that powers the solenoid switch were loose as a goose, to not make contact on the "normal" power side. All it took to fix is a squeeze on the connectors. Works great now but it cost us a service call and a little egg on our face.
Bernie S. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the great review, we appreciate your feedback. If you have any questions, feel free to reach out to us at 888-GENERAC (436-3722). We're available 24 hours a day, 7 days a week.
Rating Breakdown
5/5
4/5
5/5
5/5
Pros:
Easy To Use, Price, Light Weight, I'd Buy It Again
Cons:
loose terminations
