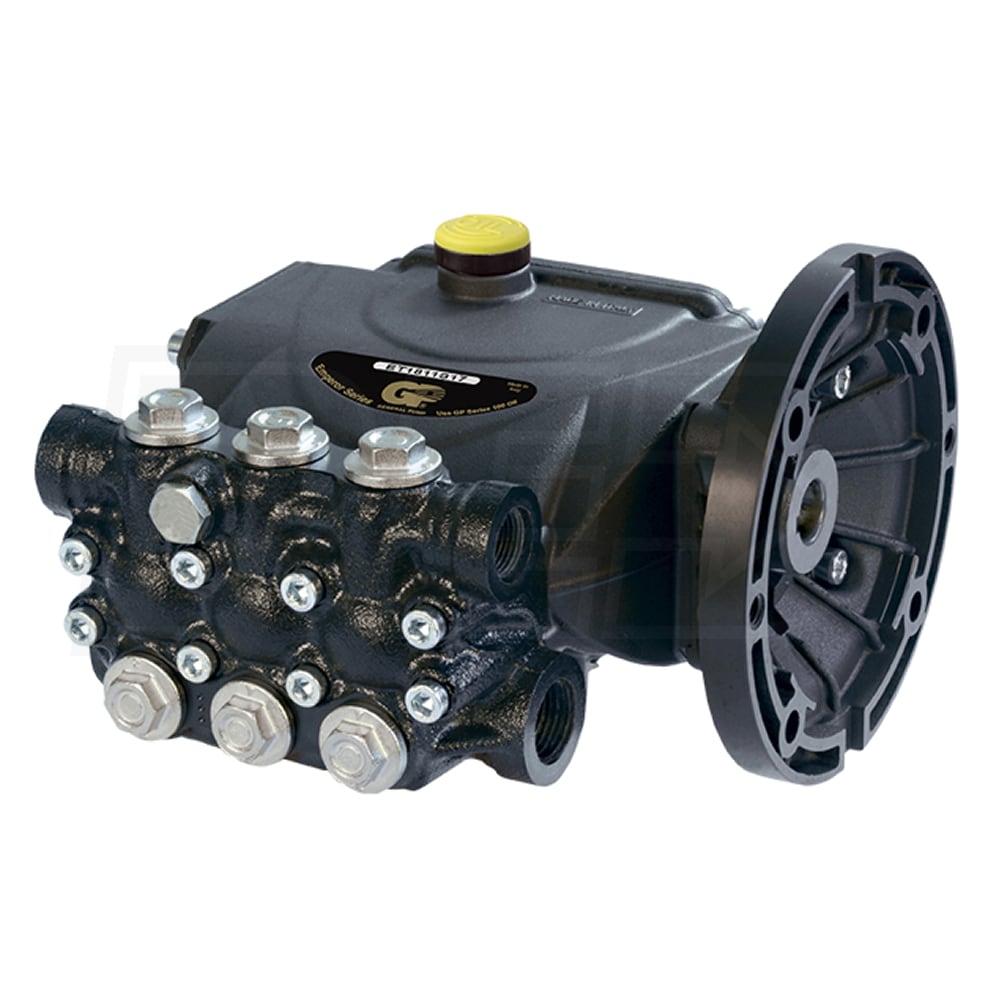

General Pump ET Series 2610 PSI 1.85 GPM (Shaft Electric Flange) Triplex Pressure Washer Pump

Model:

ET1504E34

Write A Review
$343.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

General Pump ET Series 2610 PSI 1.85 GPM (Shaft Electric Flange) Triplex Pressure Washer Pump
General Pump ET Series 2610 PSI 1.85 GPM (Shaft Electric Flange) Triplex Pressure Washer Pump
Model: ET1504E34
$343.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Electric

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Female)

  • Quality Replacement For Worn Out Pumps
  • These pumps are 100% Made in Italy
  • "HR" anti-corrosion surface treatment on manifold
  • New Pump Design
  • Oversized connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • 8.5 oz. oil capacity means better cooling & lubrication
  • NEMA56C Electric Motor Mounting Flange w/ 5/8" Hollow Shaft Diameter
  • Inlet Port Thread 1/2"-14 BSP-F / Discharge Port 3/8"-19 BSP-F
  • Plunger stroke 157 in. (4 mm) / Plunger bore 591 in. (15 mm)
  • Max 2610 PSI, 1.85 GPM, up to 165°F
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps

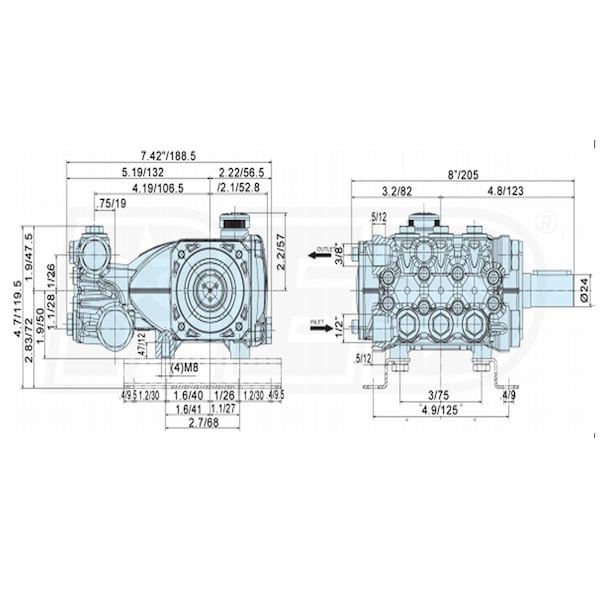

  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ET1504E34
specs product image PID-109547
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
11 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
7.3 Inches
Product Width
7.4 Inches
Product Height
5.5 Inches
UPC
682491108351
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
1.85
Rated PSI
2610 PSI
