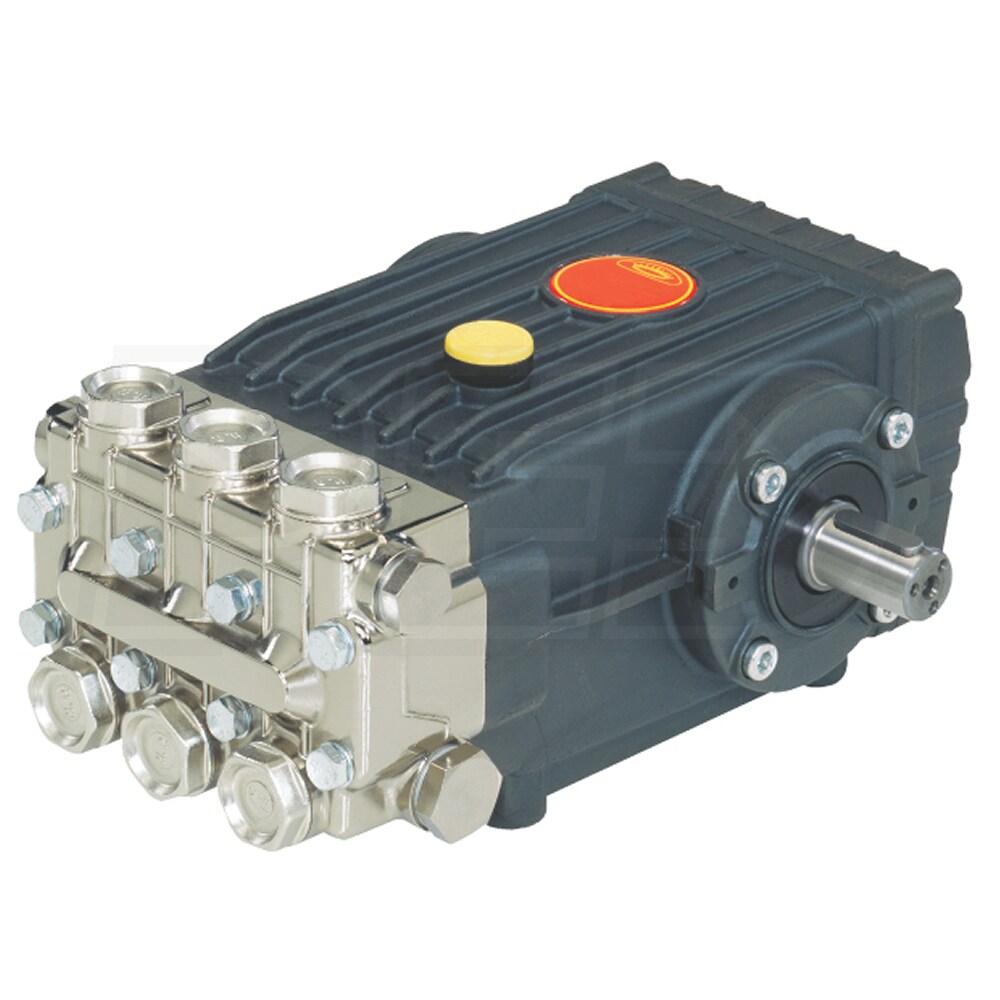

General Pump Emperor Series 3000 PSI 5.6 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

Model:

HTS2016S

Write A Review
$957.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

General Pump Emperor Series 3000 PSI 5.6 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
General Pump Emperor Series 3000 PSI 5.6 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
Model: HTS2016S
$957.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

  • High Quality Replacement For Worn Out Pumps
  • The preferred pump frame in the pressure cleaning industry
  • Ideal for use in carpet cleaning and other high pressure cleaning applications
  • Triplex Plunger Pump w/ High Tech Packings
  • Solid ceramic plungers run cooler
  • Superior low-pressure & high pressure seal
  • Specifically designed to handle rigorous duty cycles, high temperatures and chemicals
  • Durable Components w/ Heavy Duty Tapered Roller Bearings
  • Nickel-plated forged brass manifold lasts longer than cheaper models
  • Nickel-plated inlet/outlet valve plugs
  • 24 MM Solid Shaft (.945 inches) Handles 1450 RPM
  • Inlet port thread 1/2" -14 BSP-F
  • Discharge port thread 3/8" -19 BSP-F
  • Plunger bore .787 in / 20 mm, plunger stroke .630 in. / 16 mm
  • Crankcase oil capacity 40.6 ounces
  • Rated PSI 125 and max temperature 185° F
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

HTS2016S
specs product image PID-106516
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
32 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
12.4 Inches
Product Width
10 Inches
Product Height
6.9 Inches
Power Type
Gas
UPC
682491120193
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
5.0
Rated PSI
2300 PSI
Chemical Injections
Sold Separately
