General Pump TP2530J34UIL
General Pump TP2530J34UIL
General Pump TP2530J34UIL
General Pump TP2530J34UIL
General Pump TP2530J34UIL
Hover to zoom
1 of 2
General Pump TP2530J34UIL
General Pump TP2530J34UIL

General Pump Series 51 2500 PSI 2.88 GPM (3/4" Shaft) Triplex Pressure Washer Pump w/ Unloader & Injector

Model:

TP2530J34UIL

Write A Review
$331.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

General Pump Series 51 2500 PSI 2.88 GPM (3/4
General Pump Series 51 2500 PSI 2.88 GPM (3/4" Shaft) Triplex Pressure Washer Pump w/ Unloader & Injector
Model: TP2530J34UIL
$331.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 8
$50.99
Factory-Direct
$27.99
Factory-Direct
$167.00
In-Stock
$206.00
Factory-Direct
$14.00
Factory-Direct

Features

Grade

Consumer

Style

Gas

Pump Brand

General

Inflow

Garden Hose (Female)

  • High Quality Replacement For Worn Out Pumps
  • Consumer grade is ideal for all general cleaning applications
  • Triplex Plunger Pump With Ceramic Plungers
  • Runs cooler and lasts longer than axial pumps
  • Continuously lubricated packings extend time between rebuilds
  • Durable Components Fit Left Handed Mounts
  • Forged brass manifold lasts longer than aluminum
  • Oversized connecting rods increase performance
  • Stainless steel inlet and outlet valves won't corrode
  • Comes Standard With SAE J609 Gasoline Engine Mounting Flange
  • **Do not use NPT inlet fitting
  • Easily Connects To Many Gas Pressure Washers
  • 3/4" / 19mm hollow shaft; fits left handed mounts
  • Pump inlet port thread 3/8-19 BSPP-F
  • Unloader inlet port thread 1/2-14 BSPP-F**
  • Pump discharge port thread 1/4-19 BSPP-F; unloader discharge port thread 3/8-19 BSPP-M
  • Bore .591 in. / 15 mm, stroke .283 in. / 7.2 mm
  • Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps

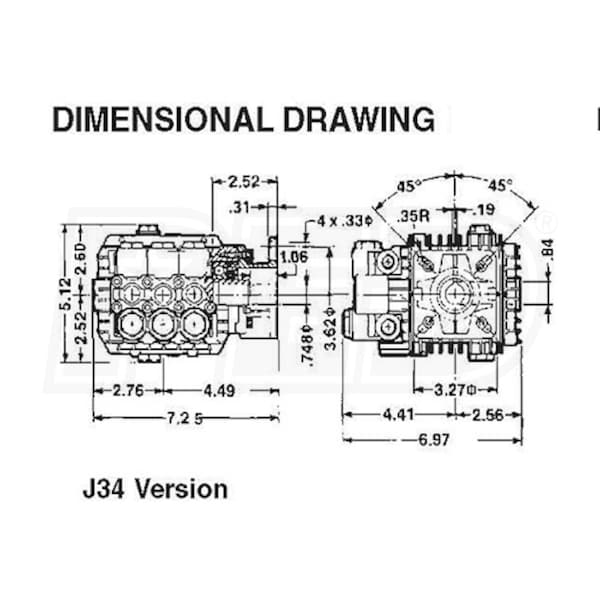

  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

TP2530J34UIL
specs product image PID-3222
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
11.4 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
7 Inches
Product Width
5.5 Inches
Product Height
8 Inches
UPC
682491014973
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
Garden Hose (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
3
Rated PSI
2500 PSI
Chemical Injections
Sold Separately

Reviews

(2)
General Pump TP2530J34UIL Reviews & Ratings
Verified Buyer
Verified Buyer
Great Product That Works!!
By Charlie H.
Jefferson City, Missouri
Purchased 03/29/2021 |
Review Posted 05/07/2021
Bought this triplex pump to replace my old pump. Works great!!
Charlie H. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Reliable, High Quality, Id Buy It Again
Verified Buyer
Verified Buyer
Replacement pump
By Andy
Rifle, Colorado
Purchased 03/15/2011 |
Review Posted 02/25/2012
In March of 2011 I had a series 51 general Pump that needed reparing, so I did some shopping around for the parts that I needed to repair my pump to get it back up and running again.

Every place that I contacted about the parts that I needed to repair my pump they wanted $400.00 to $500.00 for the parts. I was about to give up and just trash the pump until I came across Pressure Washers Direct. I bought the same pump from them for less than the price of the parts that I needed to repair my old pump.

I us my pressure washer on a regular bases for clenning my vehicles and atvs and it is doing just as good now as the day that I bought the pump.

Oh and the service was great!!! and I recived my new pump from Pressure Washers Direct with in 6 days. I am very well satisfied with Pressure Washers Direct and recommend them to anyone who is looking for anything.

Thank You Pressure Washers Direct
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jim, the Pressure Washer Expert
Hello, Is my honda engine GC190 ( 5.2 hp) will match to the General pump model tp2530J34UIL. Thanks, Joseph
Joseph Padilla
from California
November 02, 2011
