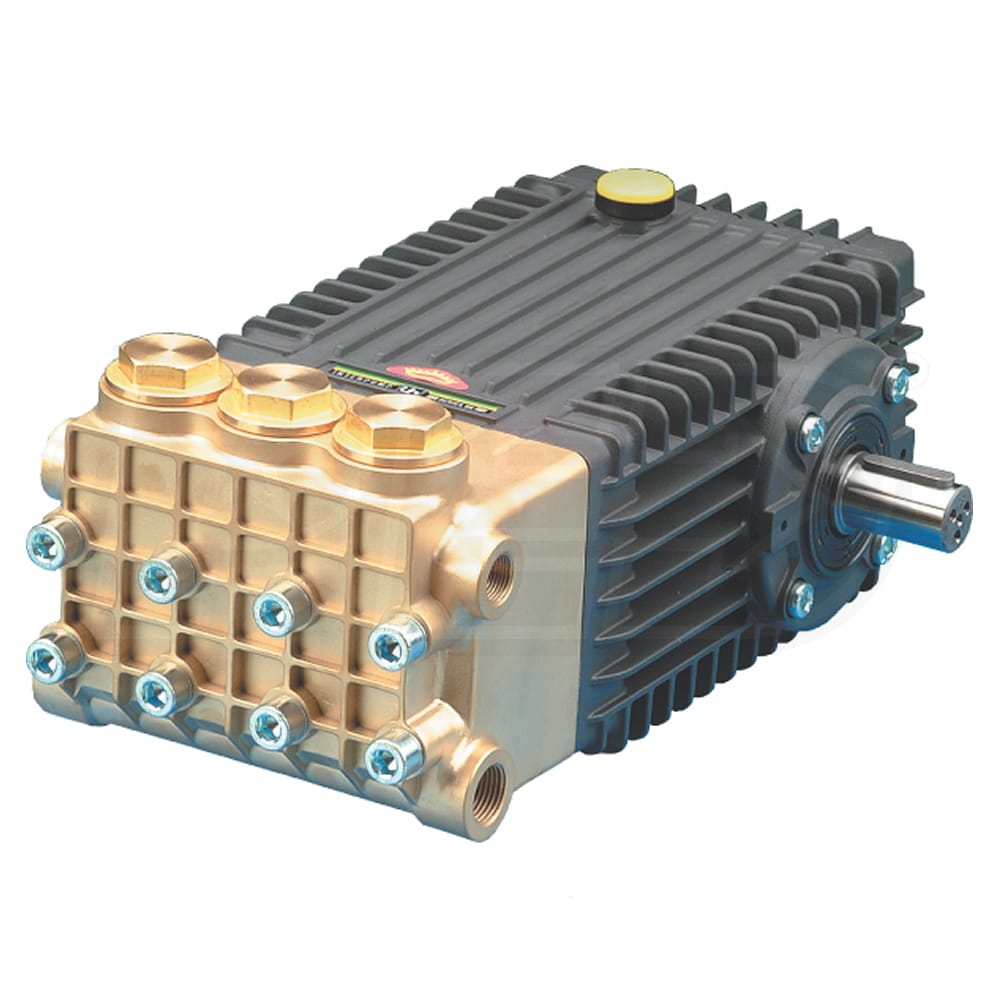

General Pump 66 Series 5800 PSI 4.3 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
Model:
TSP1619
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Optional Accessories
5
$206.00
Only 3 In-Stock
Model: PWD-ULTIMATEQCKIT
$27.99
Factory-Direct
Model: 82246
$520.00
Factory-Direct
Model: 82245
$230.00
Factory-Direct
$141.00
Factory-Direct
Features
Grade
Professional
Style
Gas
Pump Brand
General
- High Quality Replacement For Worn Out Pumps
- The preferred pump frame in the pressure cleaning industry
- Triplex Plunger Pump
- Solid ceramic plungers run cooler
- Continuously lubricated packings last longer
- Durable Components
- Forged brass manifold lasts longer than cheaper models
- Over-sized connecting rods for maximum life
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- New plunger design improves "thermal shock" resistance
- 24 MM Solid Shaft (.945 inches) Handles 1750 RPM
- Inlet port thread 1/2" BSP-F
- Discharge port thread 3/8" BSP-F
- Plunger bore .629 in / 16 mm, plunger stroke .748 in / 19 mm
- Crankcase oil capacity 37.2 ounces
- Rated PSI 125 and max temperature 165° F
- Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
- There is a 25% restocking fee on returned pumps
- See the Owner's Manual (under the Specs tab) for dimensions
- Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
TSP1619
Pump
Pump Brand
General
Adjustable Pressure
No
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
51.8 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
13.8 Inches
Product Width
9.8 Inches
Product Height
7.7 Inches
Power Type
Gas
UPC
682491120117
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
4.3
Rated PSI
5800 PSI
Chemical Injections
Sold Separately
Reviews
(1)
General Pump TSP1619 Reviews & Ratings
General Pump 66 Series
By Ricardo M
Georgia
Purchased 09/04/2024 |
Review Posted 09/27/2024
If you're looking for a rugged, reliable high-pressure pump for your industrial or commercial needs, the General Pump 66 Series is an outstanding choice. This solid-shaft, belt-drive triplex pump combines power, durability and efficiency, meeting the most demanding jobs.
Key Features:
Maximum pressure of 5800 PSI: With a handling capacity of up to 5800 PSI, this pump is ideal for tasks that require high cleaning force, such as in industries, construction or fleet vehicle washing.
4.3 GPM Flow Rate: Its 4.3 gallons per minute flow rate provides excellent performance in pressure washing applications, ensuring efficient and fast cleaning.
Belt Drive System: The belt drive not only extends the life of the pump by reducing vibration and wear, but also makes maintenance and repair easier.
Triplex Design: The triplex design allows for smoother and more efficient operation compared to other pump types, ensuring longer life and better performance in demanding conditions.
Solid Shaft: The solid shaft provides a strong and reliable connection, which improves the pump's durability and overall strength.
Advantages:
High Quality Construction: Manufactured with first-class materials that ensure long service life even in harsh environments.
Low maintenance: The design of this pump makes it easy to maintain, making it a practical choice for those who want to minimize downtime.
Versatility: Its ability to handle high pressures and flow rates makes it suitable for a wide variety of applications, from heavy industrial cleaning to large surface maintenance.
Conclusion:
The General Pump 66 Series is an excellent investment for those looking for a rugged and reliable pressure washer pump. Its ability to generate high levels of pressure, along with its durable design and easy maintenance, make it an outstanding choice in the market. Ideal for industrial or commercial uses, it delivers solid, long-lasting performance on every job.
Key Features:
Maximum pressure of 5800 PSI: With a handling capacity of up to 5800 PSI, this pump is ideal for tasks that require high cleaning force, such as in industries, construction or fleet vehicle washing.
4.3 GPM Flow Rate: Its 4.3 gallons per minute flow rate provides excellent performance in pressure washing applications, ensuring efficient and fast cleaning.
Belt Drive System: The belt drive not only extends the life of the pump by reducing vibration and wear, but also makes maintenance and repair easier.
Triplex Design: The triplex design allows for smoother and more efficient operation compared to other pump types, ensuring longer life and better performance in demanding conditions.
Solid Shaft: The solid shaft provides a strong and reliable connection, which improves the pump's durability and overall strength.
Advantages:
High Quality Construction: Manufactured with first-class materials that ensure long service life even in harsh environments.
Low maintenance: The design of this pump makes it easy to maintain, making it a practical choice for those who want to minimize downtime.
Versatility: Its ability to handle high pressures and flow rates makes it suitable for a wide variety of applications, from heavy industrial cleaning to large surface maintenance.
Conclusion:
The General Pump 66 Series is an excellent investment for those looking for a rugged and reliable pressure washer pump. Its ability to generate high levels of pressure, along with its durable design and easy maintenance, make it an outstanding choice in the market. Ideal for industrial or commercial uses, it delivers solid, long-lasting performance on every job.
Ricardo M Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price
Cons:
None
