General Pump 47 Series 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive / Left Hand)

Model:

TSS1021L

Write A Review
$547.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601

General Pump 47 Series 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive / Left Hand)
General Pump 47 Series 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive / Left Hand)
Model: TSS1021L
$547.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Pump Brand

General

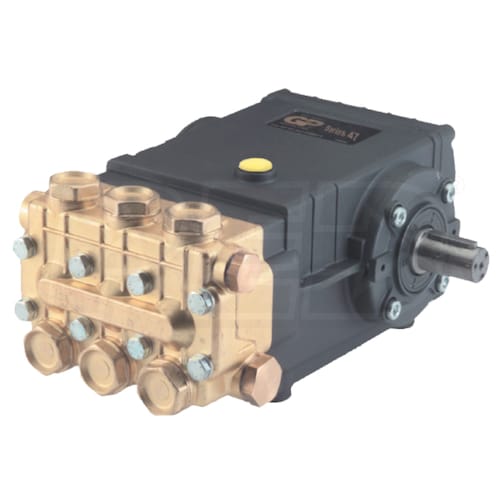

  • ***Pump Is Left For Hand Pumps - Image Shows Right Hand Pump ***
  • High Quality Replacement For Worn Out Pumps
  • The preferred pump frame in the pressure cleaning industry
  • Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
  • Solid ceramic plungers run cooler
  • Continuously lubricated packings last longer
  • Durable Components
  • Forged brass manifold lasts longer than cheaper models
  • Over-sized connecting rods for maximum life
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Unitized stainless steel inlet and discharge valves
  • 24 MM Solid Shaft (.945 inches) Handles 1125 RPM
  • Inlet port thread 1/2-14 BSPP-F
  • Discharge port thread 3/8-19 BSPP-F
  • Plunger bore .787 in. / 20 mm, plunger stroke .630 in / 16mm
  • 9.2 EBHP and crankcase oil capacity 40.6 ounces
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

TSS1021L
specs product image PID-113817
Pump
Pump Brand
General
Adjustable Pressure
No
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
32 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
12.6 Inches
Product Width
9.2 Inches
Product Height
6.9 Inches
Power Type
Gas
UPC
682491067818
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4.5
Rated PSI
3500 PSI
Chemical Injections
Sold Separately
