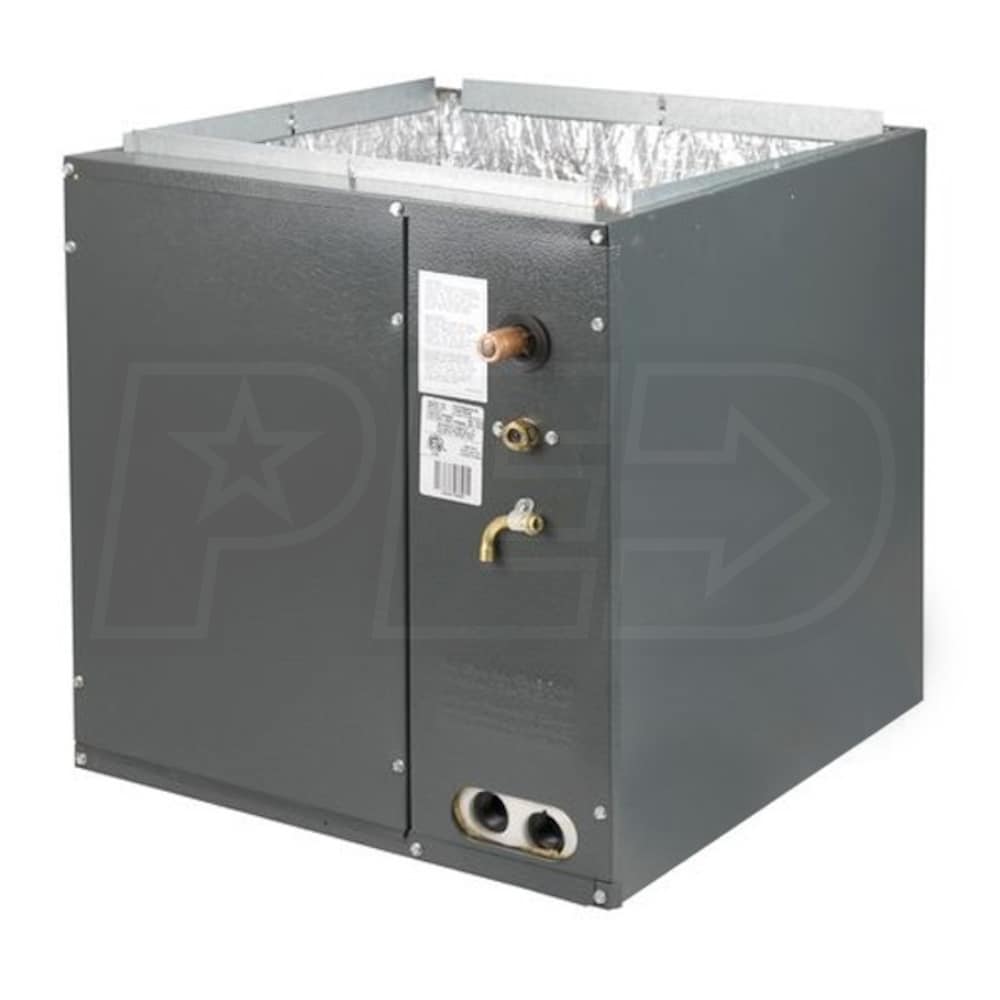

Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 24.5" Width

Model:

CAPF4961D6

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 24.5
Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 24.5" Width
Model: CAPF4961D6
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

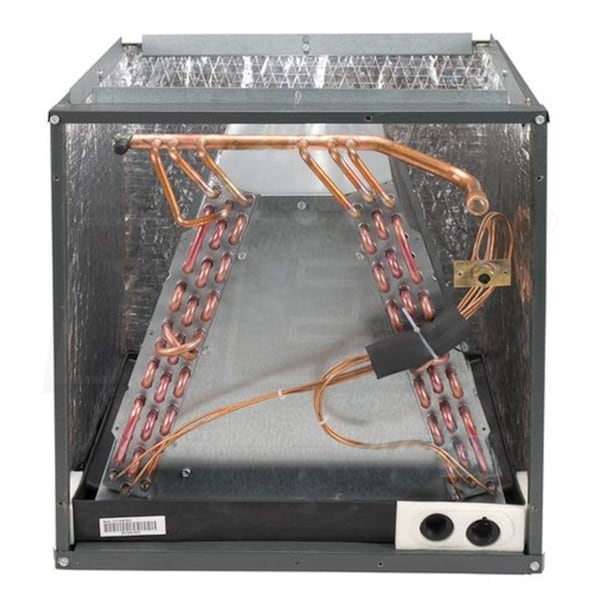

    An air conditioner or heat pump is only as good as its evaporator coil. Luckily, Goodman designs their evaporator coils with the same mind for accessibility, longevity, and value as their other heating and cooling equipment. The CAPF4961D6 is a cased A coil for use in upflow or downflow applications. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. Whether you're replacing a failing coil or installing a new system, you can choose the CAPF with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Secure Cabinet
  • A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.
  • Condensate Management
  • The CAPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
  • Multi-Refrigerant Compatibility
  • R-22 refrigerant is no longer in production, but many older systems still use it. The CAPF is compatible with both R-22 and its replacement, R-410A. This makes it the perfect fit for any homeowner.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAPF4961D6
specs product image PID-26375
Overview
Product Category
Evaporator Coil
UPC
663051541023
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
30 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
76 Pounds
Shipping Weight
86 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
