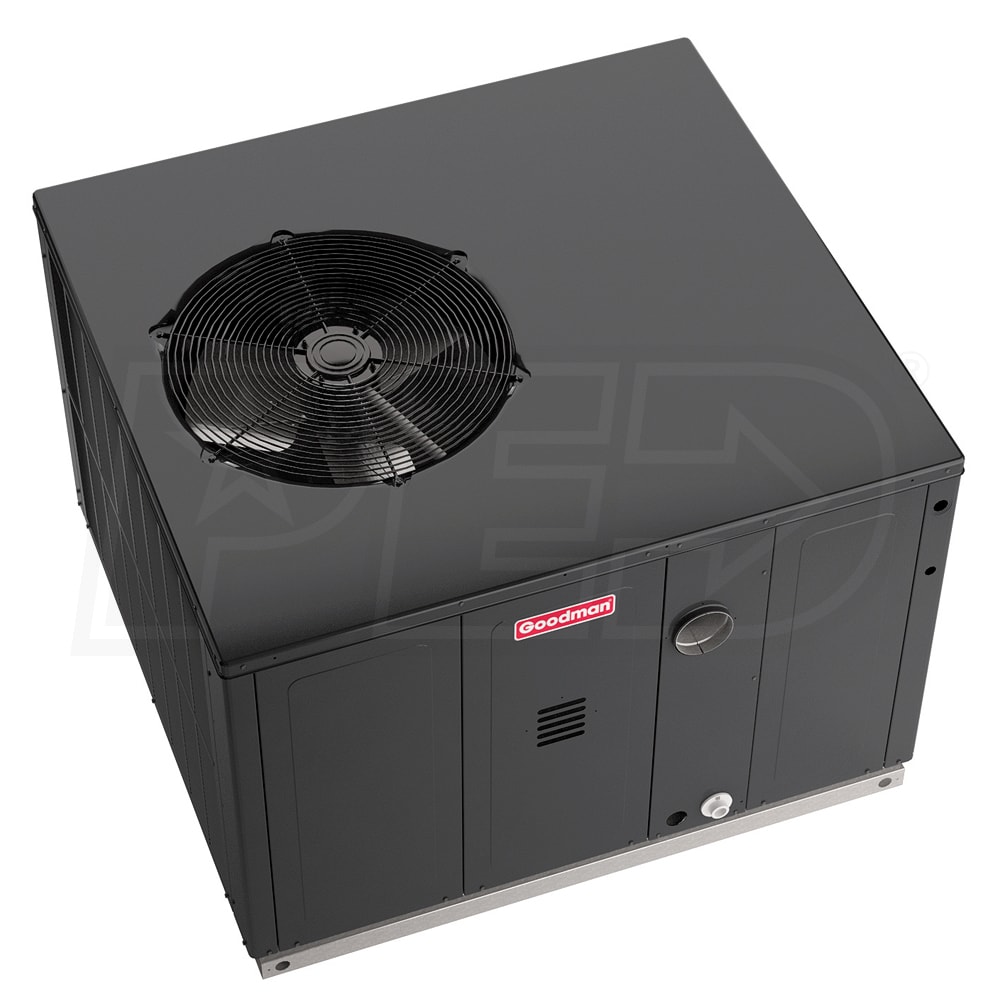

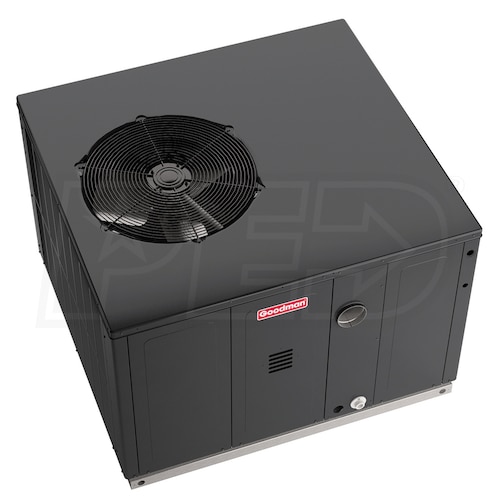

Goodman GPGM3 - 2.5 Ton Cooling - 60,000 BTU/Hr Heating - Packaged Gas/Electric Central Air System - 13.4 SEER2 - 81% AFUE - 208-230/1/60
Model:
GPGM33006041
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Heavy-Duty Aluminized-Steel Heat Exchanger
- The GPGM's furnace employs a reliable corrosion-resistant dual-diameter T-140 aluminized steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer to enhance the heat exchanger's dependability and longevity.
- Advanced Coil Design
- The condenser coil of this packaged unit is designed with aluminum fins and copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
- High Efficiency Scroll Compressor
- This unit utilizes a high efficiency two-stage scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
- Efficient Circulation
- The multi-speed ECM blower motor reduces electrical consumption ensuring efficient circulation.
- High-Quality Steel Cabinet
- This cabinet is built to last. With its steel construction and UV-resistant powder-paint finish and a steel louver coil guard that protects your equipment from wear and tear.
- Secure Cabinet
- Fully insulated blower compartment and aluminum foil-facing internal insulation reinforced with fiberglass scrim and convenient access panels.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential application. The GPGM3 is a packaged gas/electric central air system. It combines a gas-fired furnace, air conditioning condenser, evaporator coil, and Multi-speed ECM blower into a single unit. The GPGM3 heat exchanger and coil feature Goodman's superior designs that ensure efficient operations whether your home needs heating or cooling. This unit is equipped for either downflow or horizontal airflow and it features access panels to expedite installation. Streamline your comfort today with this Goodman packaged unit.
Product Note
The Goodman 20464501PDGK Horizontal Duct Cover Kit is required for downflow installation.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
GPGM33006041
General Information
Type
Gas/Electric Packaged Unit
Product Line
GPGM3
Product Category
Packaged HVAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
ECM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Gas Conversion Kit
Available
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
81 %
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling Capacity
28600 BTU
Heating Capacity
60000 BTU
Maximum Air Flow
1225 CFM
Minimum Air Flow
960 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
78 dB
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
13.4
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
10.6
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
22.8 Amps
Recommended Breaker Size
35 Amps
Dimensions
Product Height
34 1/2 Inches
Product Width
47 Inches
Product Depth
51 Inches
Product Weight
420 Pounds
Shipping Weight
442 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
209319526
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Heat Exchanger Warranty
20 Limited Years
Compressor Warranty
Limited* 10 Years
