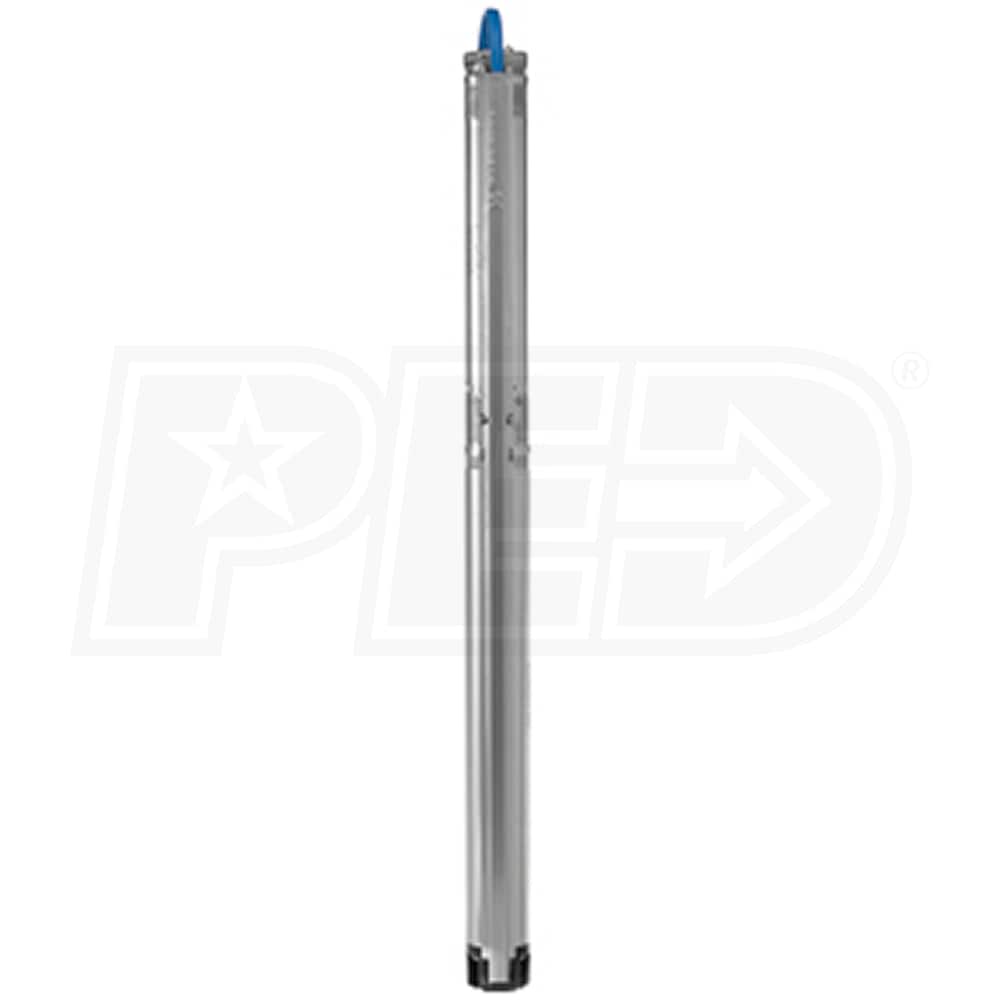

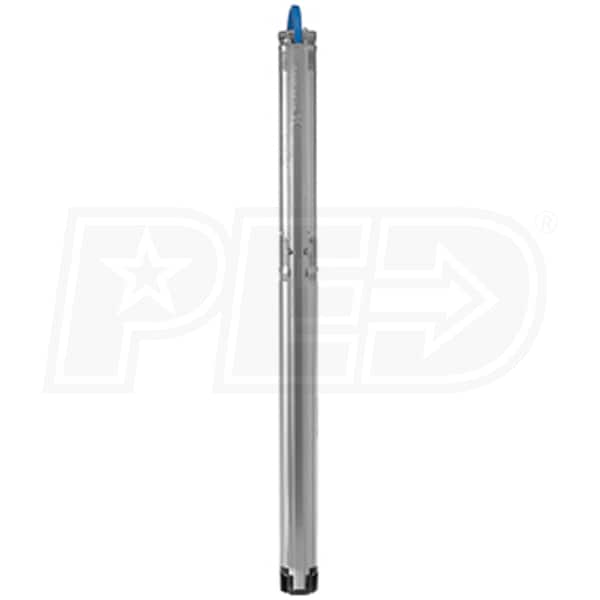

Grundfos 5SQ05-180 - 5 GPM 1/2 HP SQ-Series Deep Well Submersible Pump (180' Rated Head) (2W - 200-240V)

Model:

96160132

Write A Review
Grundfos 5SQ05-180 - 5 GPM 1/2 HP SQ-Series Deep Well Submersible Pump (180' Rated Head) (2W - 200-240V)
Grundfos 5SQ05-180 - 5 GPM 1/2 HP SQ-Series Deep Well Submersible Pump (180' Rated Head) (2W - 200-240V)
Model: 96160132
Call 1 (800) 710-7499 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 2-5 Business Days

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 9
$7.00
Backordered
$8.00
Only 2 In-Stock
$5.00
Backordered
$5.00
$4.00
Only 5 In-Stock
$99.99
Factory-Direct
$24.99
Only 3 In-Stock
$24.99
Only 3 In-Stock

Features

Inlet Size

N/A

Style

Deep Well

GPM

5 Gallons

  • Grundfos 5SQ05-180 - SQ Series 3" Submersible Well Pump (2W - 200-240V)
  • Ideal for use with 3" I.D. or larger boreholes
  • Rated 5 GPM @ 180' Head Lift
  • Please see documents for sizing / pump curve information
  • 1/2 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V)
  • Highly-efficient design with thermal overload protection for added safety
  • Fitted with a replaceable cable plug for ease of use
  • Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear & provides ability to use smaller gauge wire
  • Dry-Running Protection
  • Helps extend pump life by preventing pump damage due to lack of water in well
  • Highly-Efficient Stainless Steel Pump
  • Polyamide reinforced hydraulic pump components for more efficient energy use
  • "Floating" Impellers w/ Tungsten Carbine/Ceramic Bearings
  • Allows for high wear resistance to sand which extends pump life
  • Top-Bearing Upthrust Protection
  • Provides added protection to motor/pump during start-up
  • Overvoltage & Undervoltage Protection
  • Prevents damage to the motor if voltage moves outside rated range
  • Overload Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Overtemperature Protection
  • Built-in temperature sensor ensures optimum operating conditions for the motor
  • 2-Year Warranty

Specifications

96160132
specs product image PID-80406
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
5.2
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
5 Gallons
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Composite
Total Head Lift
300 Feet
Discharge Port Size
1 Inch
Submersible
Yes
Series
SQ
Engine
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
12 Pounds
Consumer Warranty
2 Years
Product Length
30.4 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
