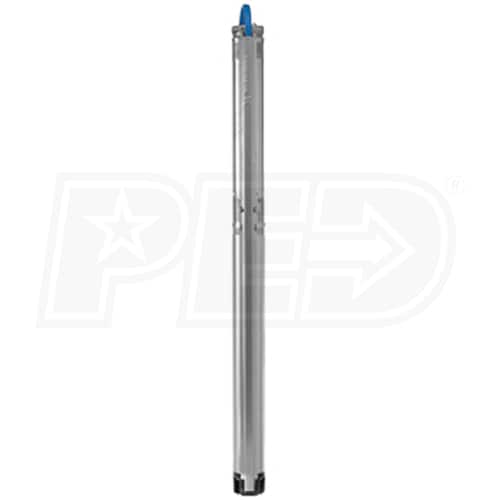

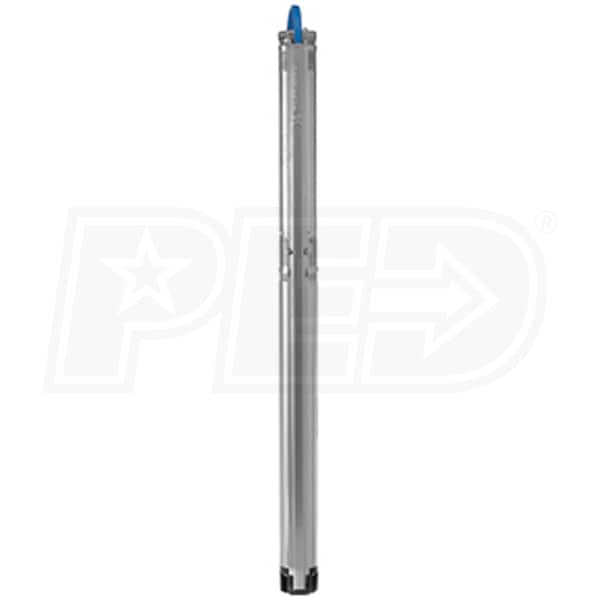

Grundfos 5SQ07-230 - 5 GPM 3/4 HP SQ-Series Deep Well Submersible Pump (230' Rated Head) (2W - 200-240V)

Model:

96160133

Write A Review
Grundfos 5SQ07-230 - 5 GPM 3/4 HP SQ-Series Deep Well Submersible Pump (230' Rated Head) (2W - 200-240V)
Grundfos 5SQ07-230 - 5 GPM 3/4 HP SQ-Series Deep Well Submersible Pump (230' Rated Head) (2W - 200-240V)
Model: 96160133
Call 1 (800) 710-7499 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Estimated Availability 7-9 Weeks
  Learn More
Estimated Availability
Secure your place in line to receive this item once the manufacturer has provided us new inventory. Keep in mind orders are fulfilled in the order they are received. If you wish to no longer wait on the item, you are more than welcome to cancel the order. However, please keep in mind you will lose your place in line.
Shipping to60601
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

5 Gallons

  • Grundfos 5SQ07-230 - SQ Series 3" Submersible Well Pump (2W - 200-240V)
  • Ideal for use with 3" I.D. or larger boreholes
  • Rated 5 GPM @ 230' Head Lift
  • Please see documents for sizing / pump curve information
  • 3/4 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V)
  • Highly-efficient design with thermal overload protection for added safety
  • Fitted with a replaceable cable plug for ease of use
  • Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear & provides ability to use smaller gauge wire
  • Dry-Running Protection
  • Helps extend pump life by preventing pump damage due to lack of water in well
  • Highly-Efficient Stainless Steel Pump
  • Polyamide reinforced hydraulic pump components for more efficient energy use
  • "Floating" Impellers w/ Tungsten Carbine/Ceramic Bearings
  • Allows for high wear resistance to sand which extends pump life
  • Top-Bearing Upthrust Protection
  • Provides added protection to motor/pump during start-up
  • Overvoltage & Undervoltage Protection
  • Prevents damage to the motor if voltage moves outside rated range
  • Overload Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Overtemperature Protection
  • Built-in temperature sensor ensures optimum operating conditions for the motor
  • 2-Year Warranty

Specifications

96160133
specs product image PID-80407
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
8.4
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
5 Gallons
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Composite
Total Head Lift
375 Feet
Discharge Port Size
1 Inch
Submersible
Yes
Series
SQ
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
13 Pounds
Consumer Warranty
2 Years
Product Length
33.6 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
