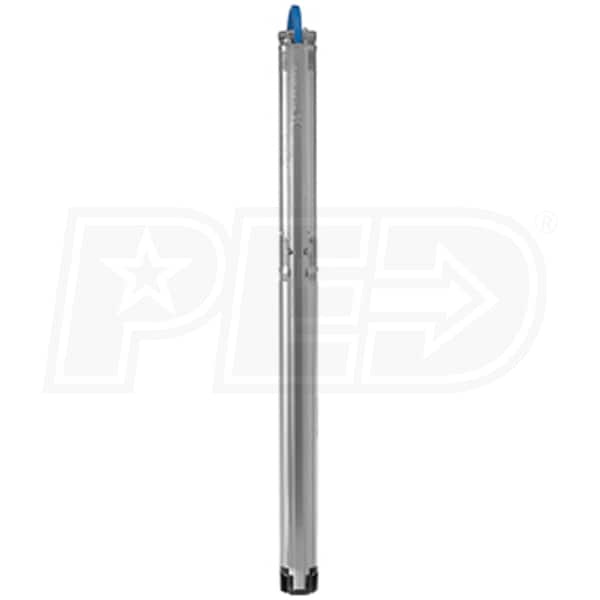

Grundfos 10SQ07-200 - 10 GPM 3/4 HP SQ-Series Deep Well Submersible Pump (200' Rated Head) (2W - 200-240V)

Model:

96160141

Write A Review
Grundfos 10SQ07-200 - 10 GPM 3/4 HP SQ-Series Deep Well Submersible Pump (200' Rated Head) (2W - 200-240V)
Grundfos 10SQ07-200 - 10 GPM 3/4 HP SQ-Series Deep Well Submersible Pump (200' Rated Head) (2W - 200-240V)
Model: 96160141
Call 1 (800) 710-7499 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 4-7 Business Days
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

10 Gallons

  • Grundfos 10SQ07-200 - SQ Series 3" Submersible Well Pump (2W - 200-240V)
  • Ideal for use with 3" I.D. or larger boreholes
  • Rated 10 GPM @ 200' Head Lift
  • Please see documents for sizing / pump curve information
  • 3/4 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V)
  • Highly-efficient design with thermal overload protection for added safety
  • Fitted with a replaceable cable plug for ease of use
  • Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear & provides ability to use smaller gauge wire
  • Dry-Running Protection
  • Helps extend pump life by preventing pump damage due to lack of water in well
  • Highly-Efficient Stainless Steel Pump
  • Polyamide reinforced hydraulic pump components for more efficient energy use
  • "Floating" Impellers w/ Tungsten Carbine/Ceramic Bearings
  • Allows for high wear resistance to sand which extends pump life
  • Top-Bearing Upthrust Protection
  • Provides added protection to motor/pump during start-up
  • Overvoltage & Undervoltage Protection
  • Prevents damage to the motor if voltage moves outside rated range
  • Overload Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Overtemperature Protection
  • Built-in temperature sensor ensures optimum operating conditions for the motor
  • 2-Year Warranty

Specifications

96160141
specs product image PID-80417
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
8.4
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Composite
Total Head Lift
290 Feet
Discharge Port Size
1-1/4 Inch
Submersible
Yes
Series
SQ
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
13 Pounds
Consumer Warranty
2 Years
Product Length
31.5 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
