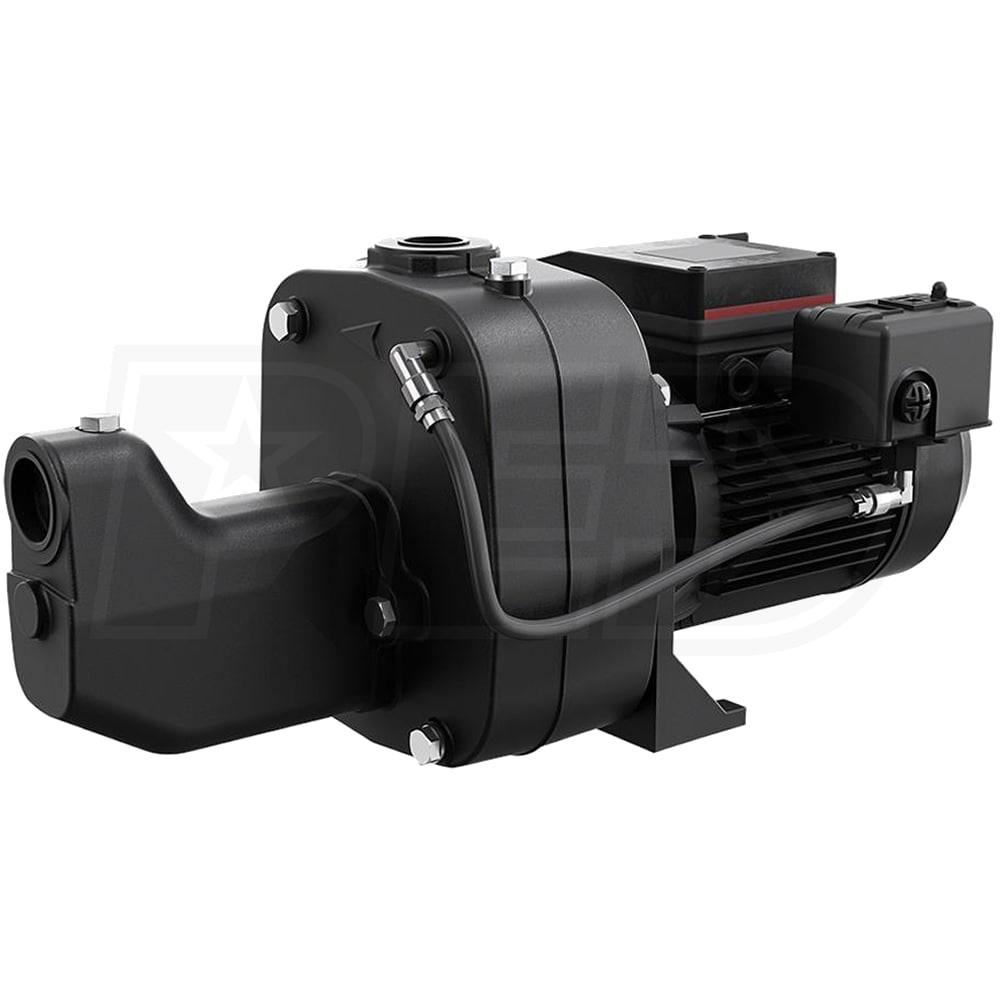

Grundfos JP20S-CI - 31 GPM 2 HP Cast Iron Shallow Well Jet Pump (112' Rated Head) 230V

Model:

97855094

Write A Review
Grundfos JP20S-CI - 31 GPM 2 HP Cast Iron Shallow Well Jet Pump (112' Rated Head) 230V
Grundfos JP20S-CI - 31 GPM 2 HP Cast Iron Shallow Well Jet Pump (112' Rated Head) 230V
Model: 97855094
Call 1 (800) 710-7499 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 4-7 Business Days
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

31 Gallons

  • Grundfos JP20S-CI - 2 HP Cast Iron Shallow Well Jet Pump (230V)
  • Ideal for use in pumping at depths of 25' or less

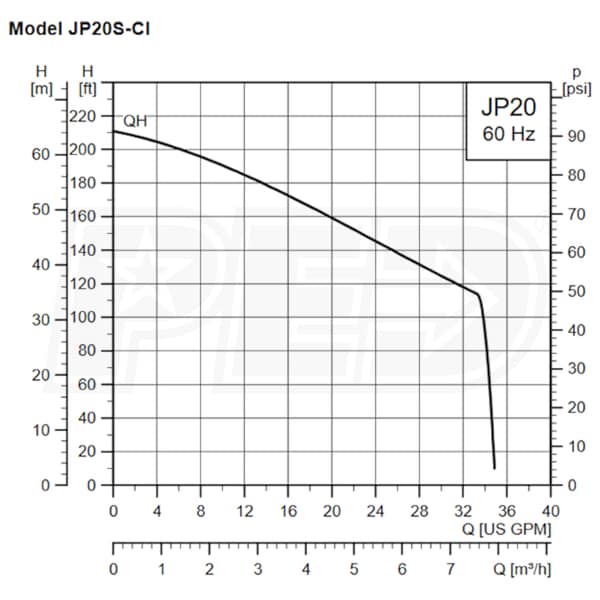

  • Rated 31 GPM @ 112' Head Lift; 203' Max Head Lift
  • 230-Volt 2 HP Grundfos TEFC Motor
  • Built-in thermal overload for motor protection
  • Includes Factory Pre-Wired 40/60 Pressure Switch
  • Allows for easy integration to your current plumbing system
  • Cast Iron Pump Housing
  • Provides longer life compared to thermoplastic pumps
  • Composite Impeller
  • Engineered for increased output, efficiency & quieter operation
  • Ceramic-Carbon Mechanical Seal
  • Provides extended seal life in clear water applications
  • Convenient Priming Plug
  • Self-priming design requires initial water-fill
  • Built-In Ejector Clean-Out Ports
  • Makes it easy to keep this nozzle unclogged and debris free
  • 2-Year Limited Warranty

Specifications

97855094
specs product image PID-80353
General Information
Product Category
Water Pump
Motor
Voltage
230 Volt
Running Amps
11
Thermal Protection
Yes
Pump
Gallons Per Minute
31 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
203.4 Feet
Submersible
No
Series
JP
Engine
Horsepower
2 HP
Overview
Product Category
Water Pump
Weight
79.4 Pounds
Consumer Warranty
2 Years
Product Length
25.04 Inches
Product Width
10.24 Inches
Product Height
10.04 Inches
UPC
8059893101754
Accessories
Pressure Switch
Yes
