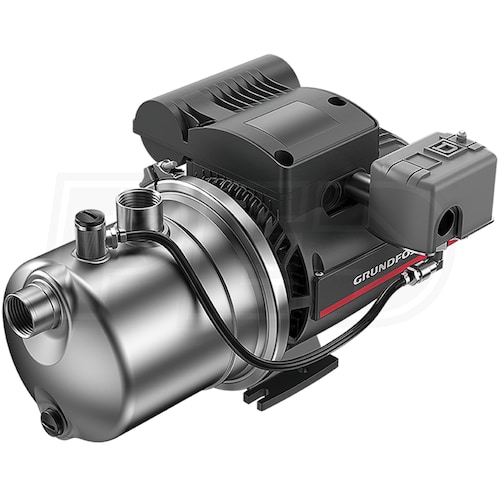

Grundfos JP 18-05-154 - 18 GPM 1/2 HP Stainless Steel Shallow Well Jet Pump (40' Rated Head) 115/230V
Model:
99463939
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1 Inch
Style
Shallow Well
GPM
18 Gallons
- Grundfos JP 18-05-154 - 1/2 HP Stainless Steel Shallow Well Jet Pump (115/230V)
- Ideal for use in pumping at depths of 25' or less

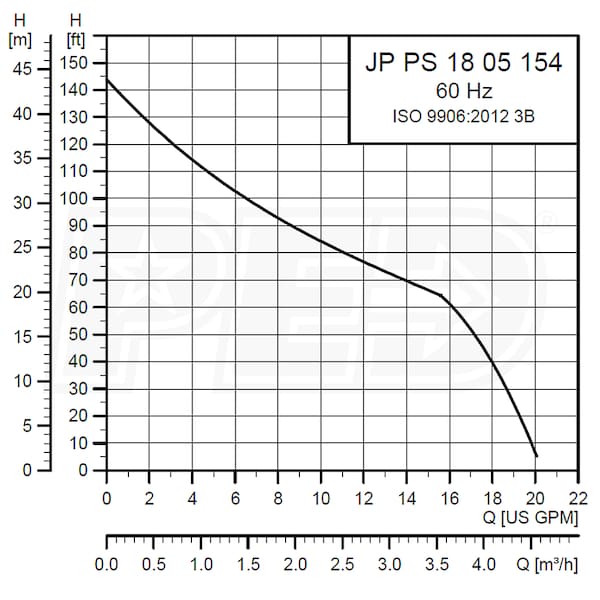

- Rated 18 GPM @ 40' Head Lift; 154' Max Head Lift
- 115/230-Volt 1/2 HP Grundfos TEFC Motor
- Dual-voltage design allows for easy installation
- Built-in thermal overload for motor protection
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Allows for easy integration to your current plumbing system
- Stainless Steel Pump Housing
- Provides increased corrosion-resistance compared to thermoplastic pumps
- Composite Impeller
- Engineered for increased output, efficiency & quieter operation
- Ceramic-Carbon Mechanical Seal
- Provides extended seal life in clear water applications
- Convenient Priming Plug
- Self-priming design requires initial water-fill
- Built-In Ejector Clean-Out Ports
- Makes it easy to keep this nozzle unclogged and debris free
- 2-Year Limited Warranty
Specifications
99463939
General Information
Product Category
Water Pump
Motor
Voltage
115-230 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
18 Gallons
Inlet Diameter
1 Inch
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
154 Feet
Submersible
No
Series
JP
Engine
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
23.4 Pounds
Consumer Warranty
2 Years
Product Length
15.9 Inches
Product Width
11.3 Inches
Product Height
8.23 Inches
Accessories
Pressure Switch
Yes
