Features
Grade
Emergency
Style
Portable
Run Watts
4,500 Rated Watts
Surge Watts
5,000
Starting Watts
Fuel
Gasoline
Engine
Honda GX

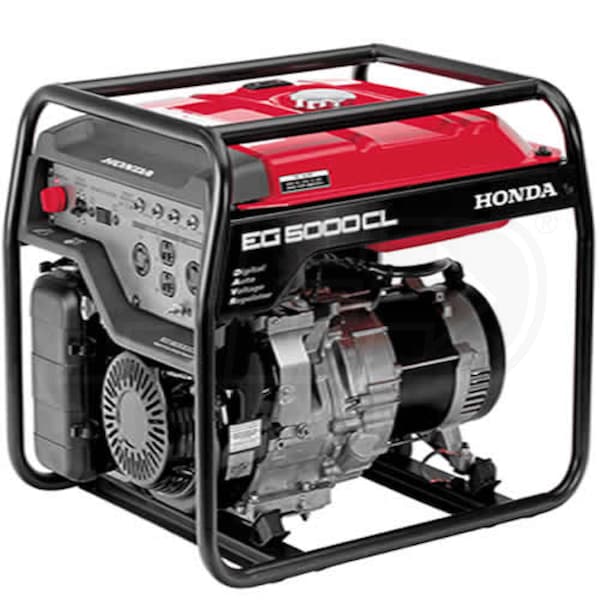

- Honda EG5000 Economy Series Portable Generator
- 3 Year Commercial/Residential Warranty
- Keeps the generator safe know matter where it is
- Great for providing power in a wide variety of applications
- 389cc Honda GX390 OHV 4-Cycle Commercial Grade Engine
- Reliable, easy-to-start and incredibly rugged
- Protected by Honda Oil Alert®
- Shuts the engine down if oil reaches an unsafe operating level
- Prevents engine damage from overheating due to lack of oil
- Honda-Exclusive DAVR (Digital Auto Voltage Regulation)
- Designed to hold the voltage stability within a +/- 1% range
- Voltage Selector Switch - 120/240V Operation
- Gives you more usable power and added flexibility
- 6.3-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 11 hours of run time @ 50% load
- 30-Amp (L14-30R) 120/240V Twist-Lock Receptacle
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- USDA-Qualified Spark Arrestor/Muffler
- Provides quieter and safer operation
- One-Piece Welded Steel Frame
- Robust design keeps generator protected from damage
- ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
EG5000CLAT
Overview
Weight
177 Pounds
CARB Compliant
Yes
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
26.8 Inches
Product Width
22.8 Inches
Product Height
22.6 Inches
UPC
786102005326
Additional Model Numbers
EG5000, EG5000CLAT
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
4500 Watts
Surge Watts
5000 Watts
Fuel Type
Gasoline
Rated Amps
19 Amps
Portability Kit
Sold Separately
Tank Size
6.3 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Lifting Eye
No
Neutral Type
Floating
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
NEMA L14-30R
1
