Honda Engines GCV160LAO-N1A
Honda Engines GCV160LAO-N1A
Hover to zoom
1 of 1

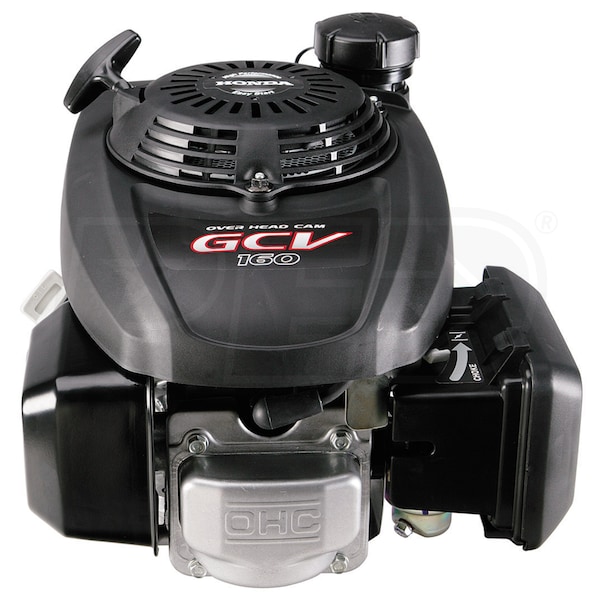

Honda GCV160 160cc OHC Vertical Engine, 7/8" x 3-5/32" Crankshaft (N1 Type)

Model:

GCV160LAO-N1A

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda GCV160 160cc OHC Vertical Engine, 7/8
Honda GCV160 160cc OHC Vertical Engine, 7/8" x 3-5/32" Crankshaft (N1 Type)
Model: GCV160LAO-N1A
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

  • Model# GCV160LAO-N1A - 7/8" x 3-8/24" Crankshaft (N1 Type)
  • 2-Year Consumer & 90-Day Commercial Warranty
  • Vertical crankshaft ideal for walk behind lawn mowers & chipper/vacs
  • Honda GCV160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 6.9 ft-lbs of torque @ 2500 RPM - Power levels are stated Net Torque
  • Overhead Cam (OHC) Technology
  • Compact, lighter and stronger for efficient, proven performance
  • Dua-Lube™ System & Lifetime Timing Belt Design
  • Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force- your shoulder will thank you
  • Single-Element Air Filter, Cross-Flow Intake Port & Electric Ignition
  • Assures easier starting with a reliable spark and fuel flow
  • Simple To Maintain & Service
  • Easy access oil drain/fill ports & optimized spark plug location
  • 1/4 Gallon Plastic Fuel Tank
  • Built-in charcoal canister in gas cap for reduced emmisions
  • EPA & CARB Compliant

Specifications

GCV160LAO-N1A
specs product image PID-81531
Engine
Engine Series
Honda GC
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
22 Lbs
CC
160 CCs
HP
4.4 HP
Net Torque
6.9 Lbs
Cylinder Bore Type
Aluminum
Bore
2.5 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Starting System
12-Volt w/ Recoil Backup
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8-24"
Overview
Weight
22 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.4 Inches
Product Width
13 Inches
Product Height
13.7 Inches
