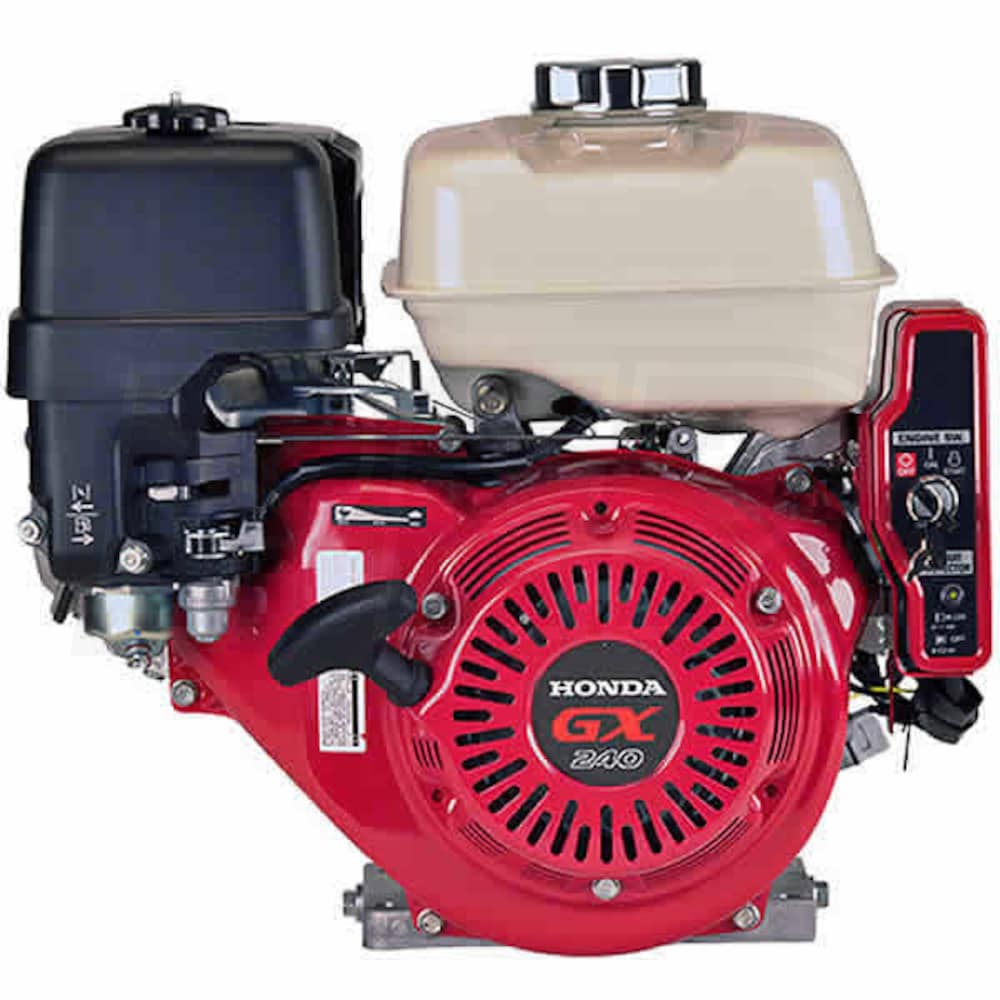

Honda Engines GX240UT2QAE2
Honda Engines GX240UT2QAE2
Hover to zoom
1 Of 5

Honda GX240™ 270cc OHV Electric Start Horizontal Engine, Oil Alert System, 1" x 3-31/64" Crankshaft

Model:

GX240UT2QAE2

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda GX240™ 270cc OHV Electric Start Horizontal Engine, Oil Alert System, 1
Honda GX240™ 270cc OHV Electric Start Horizontal Engine, Oil Alert System, 1" x 3-31/64" Crankshaft
Model: GX240UT2QAE2
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Model# GX240UT2QAE2 - Electric Start, Oil Alert, 1" x 3-31/64; Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • Great for chippers, shredders, pressure washers and air compressors
  • Honda GX240 Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 13.5 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • 12V Electric Starter (Battery Cables Not Included)
  • Heavy-duty recoil starter, Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Re-designed camshaft & muffler reduce overall engine noise by up to 5 dB
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes 1.4-Gallon Metal Fuel Tank w/ Sediment-Screen
  • 50-State Engine, EPA & CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

GX240UT2QAE2
specs product image PID-66366
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
75 Lbs
CC
270 CCs
HP
7.9 HP
Net Torque
13.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.0 Inches
Stroke
2.3 Inches
Compression Ratio
8.5:1
Systems
Starting System
12-Volt w/ Recoil Backup
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-31/64 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-31/64"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
75 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
15" Inches
Product Width
16.9" Inches
Product Height
16.6" Inches
