Honda Engines GX35NTS3
Honda Engines GX35NTS3
Hover to zoom
1 Of 5

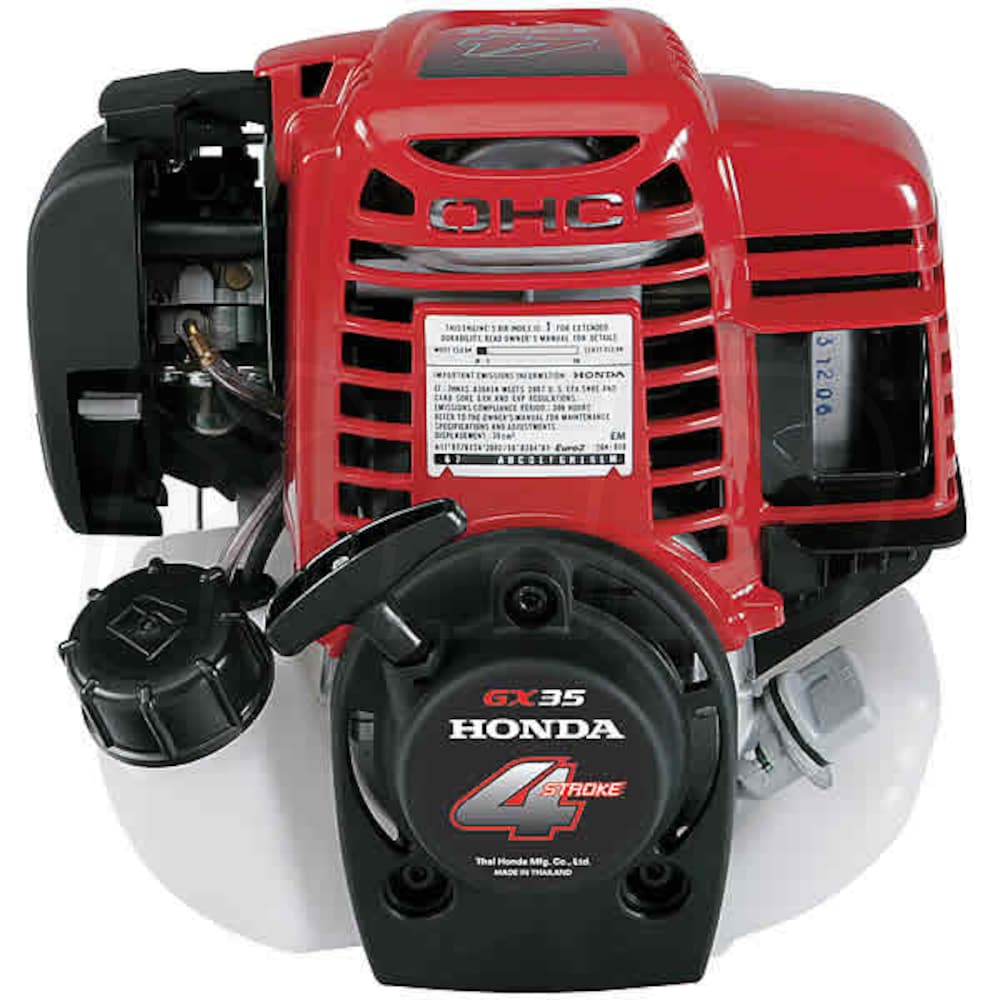

Honda GX35™ 35.8cc Mini 4-Stroke OHC Horizontal Engine, Clutched PTO

Model:

GX35NTS3

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda GX35™ 35.8cc Mini 4-Stroke OHC Horizontal Engine, Clutched PTO
Honda GX35™ 35.8cc Mini 4-Stroke OHC Horizontal Engine, Clutched PTO
Model: GX35NTS3
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Model# GX35NTS3 - Clutched PTO
  • 2-Year Consumer & 1-Year Commercial Warranty
  • Great for trimmers, augers, small lawn/garden equipment
  • Honda GX35™ Mini 4-Stroke Single Cylinder Air-Cooled Gas Engine
  • Produces 1.2 ft-lbs of torque @ 5500 RPM - Power levels are stated Net torque
  • 4-Stroke - No Fuel/Oil Mixing
  • About half the operation cost compared to a 2-stroke engine
  • Full 360° "Any-Side-Up" Operation
  • Operate & store in any position you want without compromise
  • Honda's Exclusive Rotary-Slinger Lubrication System
  • Keeps oil in misted state and continuously circulates oil for total protection
  • Overhead Cam (OHC) Technology
  • Belt-driven design & lightweight piston reduces noise & vibrations
  • Larger valves & redesigned port configiration maximize ouput
  • Ball Bearing Supported Precision Camshaft Design
  • Combined with other percision components minimize vibrations
  • Diaphragm Carburetor w/ Accelerator Pump
  • Fast, easy acceleration, regardless of position of engine
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Easy Maintenance
  • Operator-friendly oil fill/drain & spark plug location
  • Includes: Clutch w/ Crank/Piston Assembly
  • EPA & CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

GX35NTS3
specs product image PID-66380
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
7.6 Lbs
CC
35.8 CCs
HP
1.3 HP
Net Torque
1.2 Lbs
Cylinder Bore Type
Aluminum
Bore
1.5 Inches
Compression Ratio
8:1
Stroke
1.2 Inches
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
3.4 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Diaphragm
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.17 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
Clutched PTO Inches
Crankshaft Type
Clutched
PTO Height
3.9 Inches
Overview
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
8" Inches
Product Width
9.2" Inches
Product Height
9.4" Inches
