Model: 08732-0800
$6.50
In-Stock
Features
- Model# GX35NTT3 - Clutched PTO (Vertical)
- 2-Year Consumer & 1-Year Commercial Warranty
- Great for trimmers, augers, small lawn/garden equipment
- Honda GX35™ Mini 4-Stroke Single Cylinder Air-Cooled Gas Engine
- Produces 1.2 ft-lbs of torque @ 5500 RPM - Power levels are stated Net torque
- 4-Stroke - No Fuel/Oil Mixing
- About half the operation cost compared to a 2-stroke engine
- Full 360° "Any-Side-Up" Operation
- Operate & store in any position you want without compromise
- Honda's Exclusive Rotary-Slinger Lubrication System
- Keeps oil in misted state and continusously circulates oil for total protection
- Overhead Cam (OHC) Technology
- Belt-driven design & lightweight piston reduces noise & vibrations
- Larger valves & redesigned port configiration maximize ouput
- Ball Bearing Supported Precision Camshaft Design
- Combined with other percision components minimize vibrations
- Diaphragm Carburetor w/ Accelerator Pump
- Fast, easy acceleration, regardless of position of engine
- Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force, for easier and quicker starting
- Easy Maintenance
- Operator-friendly oil fill/drain & spark plug location
- Includes: Clutch w/ Crank/Piston Assembly
- EPA & CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
GX35NTT3
Engine
Engine Series
Honda GX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
7.6 Lbs
CC
35.8 CCs
HP
1.3 HP
Net Torque
1.2 Lbs
Cylinder Bore Type
Aluminum
Bore
1.5 Inches
Stroke
1.2 Inches
Compression Ratio
8:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
3.4 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Diaphragm
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.17 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
Clutched PTO Inches
Crankshaft Type
Clutched
PTO Height
3.9 Inches
Overview
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
8" Inches
Product Width
9.2" Inches
Product Height
9.4" Inches
Reviews
(5)
Honda Engines GX35NTT3 Reviews & Ratings
Good Motor Starts Quick
By David R.
Mcallen, Texas
Purchased 04/20/2021 |
Review Posted 05/12/2021
It started quickly. The only thing I had to do was buy a drill bit to make a thread so I can screw in the on/off switch since it came without a thread. Also, I wished it came with a general sticker to but on the fuel tank to make it look like my original one. Haven't fully tested it out only once, and was impressed. Would buy again.
David R. Recommends This
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
3/5
Pros:
Light Weight, Easy To Use, Id Buy It Again
Starts With One Pull
By Thomas A.
Hampton, Georgia
Purchased 03/22/2021 |
Review Posted 04/14/2021
I received the engine well packaged, clean and dry. Installed the engine, put the requisite amount of oil and non-ethanol gas in, pulled one time and it started. It's an excellent engine.
Thomas A. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
High Quality, Quiet, Light Weight, Reliable
Drop In Replacement On Mantis XP-16 Tiller
By Todd G.
Lopez Island, Washington
Purchased 10/13/2020 |
Review Posted 11/25/2020
This was a replacement for the engine on our Mantis XP-16 Garden Tiller, which we use in raised beds which we have had for over 11 years and has been an indispensable tool on our farm. The engine was shipped in a form-fitted padded box with all documentation and arrived in perfect condition. Dropped right in even down to the connector on the spark plug kill switch. Once we added oil and fuel it fired right up and runs great. PED was helpful to make sure we were buying the proper engine as there is some confusion on Honda's own website about whether a vertical or horizontal engine is required.
The price on this from PED was also the lowest anywhere by A LOT. My only criticism is that the documentation does not explicitly list how much oil is required, or to what the engine orientation is to be when measuring it (it must be laying on its gas tank, flat side). That is the reason our original engine seized up due to having only about half the required oil in it (dumb mistake for certain on my part). I am very pleased with Honda engines, and will only buy them in the future for any small engine application as they are the only company that I have found which has a good parts replacement system/inventory. Try finding a new carburetor from Briggs and Stratton sometime. Not.
The price on this from PED was also the lowest anywhere by A LOT. My only criticism is that the documentation does not explicitly list how much oil is required, or to what the engine orientation is to be when measuring it (it must be laying on its gas tank, flat side). That is the reason our original engine seized up due to having only about half the required oil in it (dumb mistake for certain on my part). I am very pleased with Honda engines, and will only buy them in the future for any small engine application as they are the only company that I have found which has a good parts replacement system/inventory. Try finding a new carburetor from Briggs and Stratton sometime. Not.
Todd G. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
Price, High Quality, Easy To Use, Quiet
Better Than The Old GX31, By Far
By Heath U.
Cave Junction, Oregon
Purchased 03/18/2020 |
Review Posted 04/11/2020
I received the engine in the manufactures foam fitted box with its manuals. It's a genuine Honda, and so far has lived up to that name. As with everything nowadays, only time will tell.
Heath U. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Light Weight, High Quality
Quality Product
By Glenn L.
Daytona Beach, Florida
Purchased 03/31/2018 |
Review Posted 04/23/2018
Very reliable product, great quality.
Glenn L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Reliable, High Quality, I'd Buy It Again
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

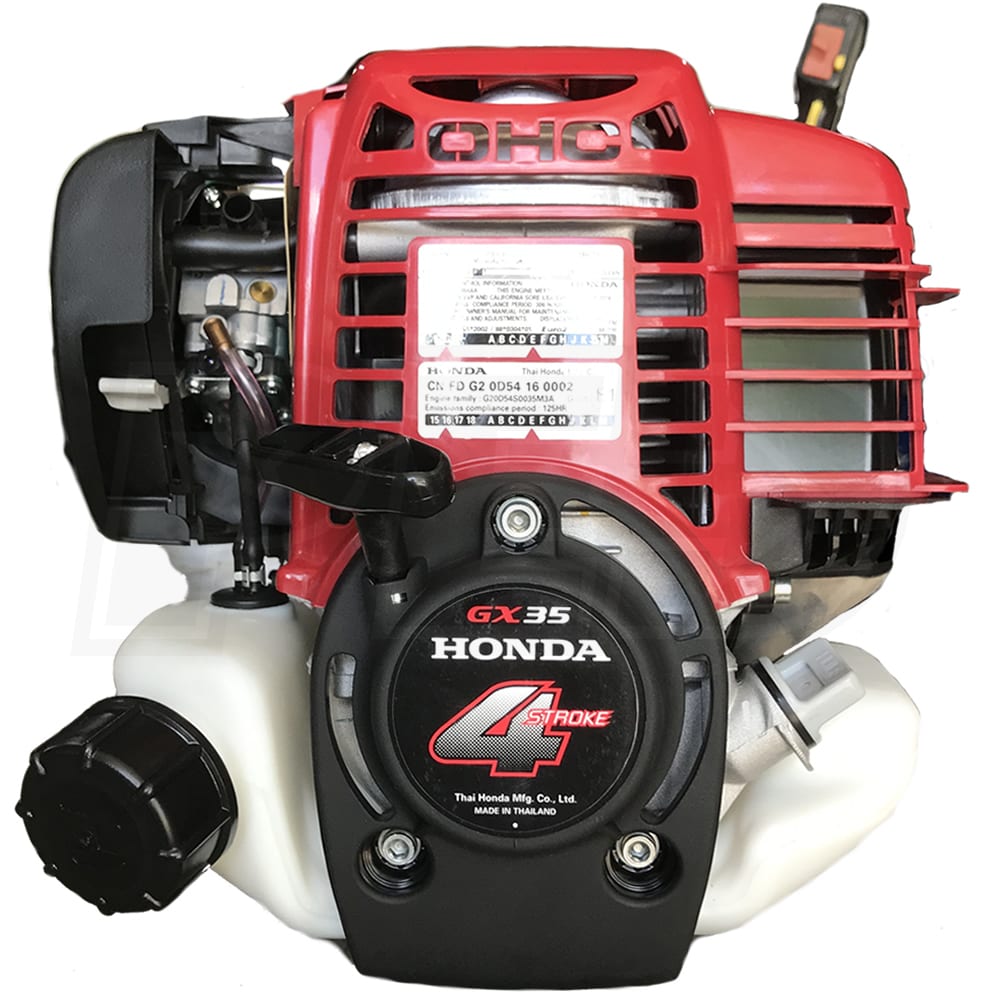

Honda GX35™ 35.8cc Mini 4-Stroke OHC Vertical Engine, Clutched PTO
