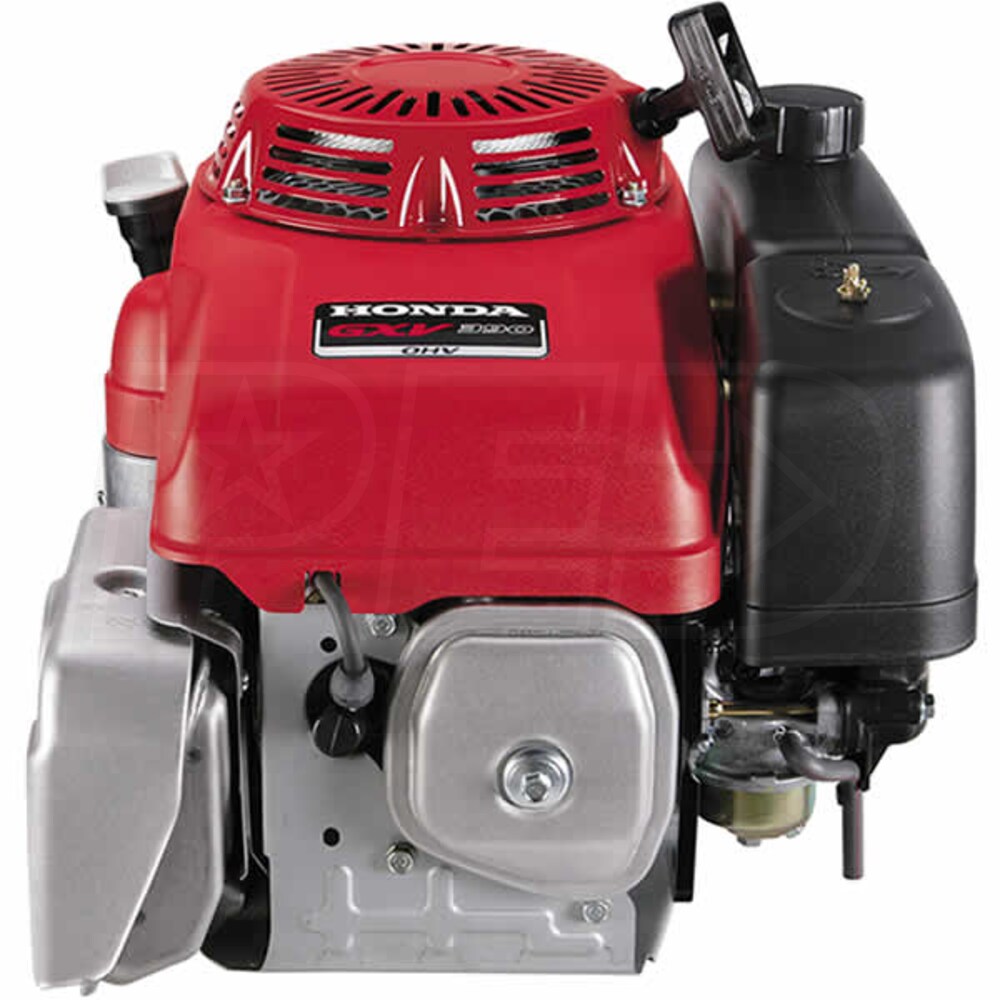

Honda GXV390™ 389cc OHV Electric Start Vertical Engine, 3A Charging, 1" x 3.11" Crankshaft

Model:

GXV390T1-DE3A

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda GXV390™ 389cc OHV Electric Start Vertical Engine, 3A Charging, 1
Honda GXV390™ 389cc OHV Electric Start Vertical Engine, 3A Charging, 1" x 3.11" Crankshaft
Model: GXV390T1-DE3A
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Model# GXV390UT1DE33 - Electric Start, 3A Charging, 1" x 3.11" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • Ideal for vertical shaft commerical turf equipment, lawn tractor, riding mower
  • Honda GXV390™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 17.8 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Preassurized / Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Float-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • .55-Gallon plastic fuel tank w/ sediment-screen
  • 12V Electric Starter (Battery Cables Not Included) & 3A Charging Coil
  • Easily integrates into your current mower for ease of use
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation (Includes Muffler)
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Manual Throttle Control & Remote Choke Control
  • Easily set the right amount of power for your application
  • EPA & CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

GXV390T1-DE3A
specs product image PID-66418
Engine
Engine Series
Honda GX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
76.3 Lbs
CC
389 CCs
HP
10.2 HP
Net Torque
17.8 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Compression Ratio
7.7:1
Stroke
2.5 Inches
Systems
Starting System
12-Volt w/ Recoil Backup
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
No
Oil Capacity
39 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.55 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.11 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.11"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
71 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
17" Inches
Product Width
15" Inches
Product Height
15.9" Inches
Additional Model Numbers

GXV390UT1DE33, GXV390T1-DE3A
