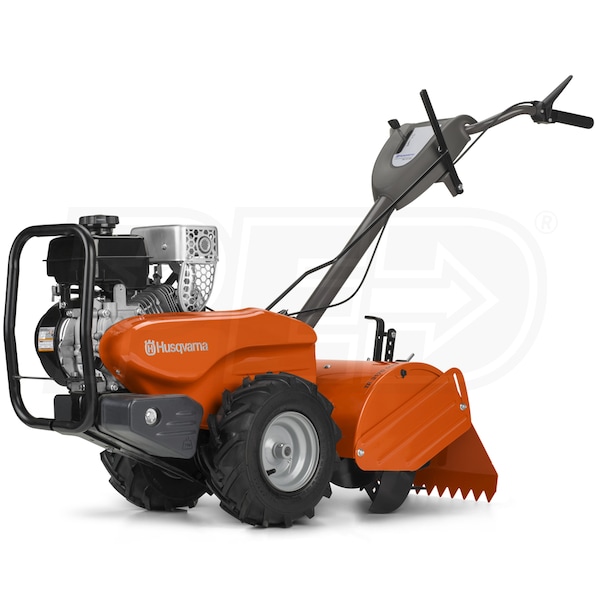

Husqvarna TR317D (17") 208cc Dual Rotating Rear Tine Tiller

Model:

TR317D

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Husqvarna TR317D (17
Husqvarna TR317D (17") 208cc Dual Rotating Rear Tine Tiller
Model: TR317D
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Dual Rotating Tines
  • Functions as a forward rotating cultivator
  • Functions as a counter rotating deep soil tiller
  • Lifetime limited warranty on tiller tines
  • Husqvarna HX208 Engine
  • 9 lb-ft gross torque
  • 190 rpm rotational speed
  • Great for both soft and extremely compacted soil
  • 17-Inch Tilling Width With Rear Tine Design
  • 6.5" working depth
  • 7 depth adjustments
  • Wide design allows you to cover more ground
  • Sealed Chain Gear Transmission
  • One gear forward and one reverse
  • Improves maneuverability and control
  • Easy Maneuvering
  • Counterweights increase weight on the wheels and improves balance
  • Easy adjust drag bar for balance in different working conditions
  • Agricultural tires' heavy thread provide better grip in cultivated and muddy soil
  • Remote Throttle Control
  • Provides added safety and convenience
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

TR317D
specs product image PID-81457
Engine
Engine Brand
Husqvarna
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
208 CCs
Fuel Tank Size
.75 Gallons
Engine Cylinders
1 Cylinder
Torque
9 Lbs
Consumer Engine Warranty
5 Years
Tines
Tine Position
Rear
Tine Direction
Dual Rotation
Tine Diameter
12 Inches
Depth Adjustments
7 Positions
Tine RPM
190
Tilling Width Max
17 Inches
Tilling Depth Min
3.5 Inches
Tilling Depth Max
6.5 Inches
Overview
Weight
200 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
48 Inches
Product Width
23.5 Inches
Product Height
33 Inches
UPC
085388592996
Additional Model Numbers

960 93 00-30, TR317D

Drive
Forward Speeds
1 Forward
Reverse Speeds
1 Reverse
Transmission
Chain Gear
Accessories
Side Shield
Yes
Hour Meter
Sold Separately
Wheels
Front Tire Size
13 x 5 Inch
Tire Type
Pneumatic Wheels
