Features

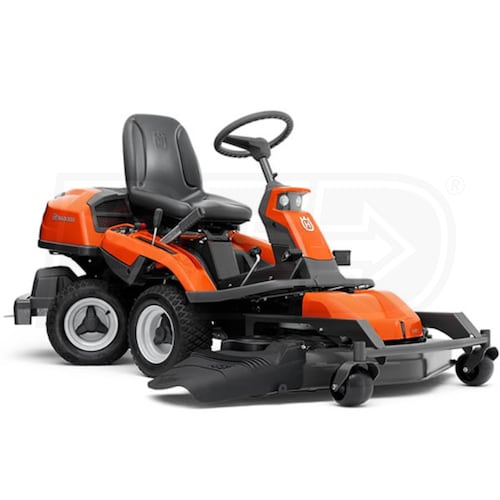

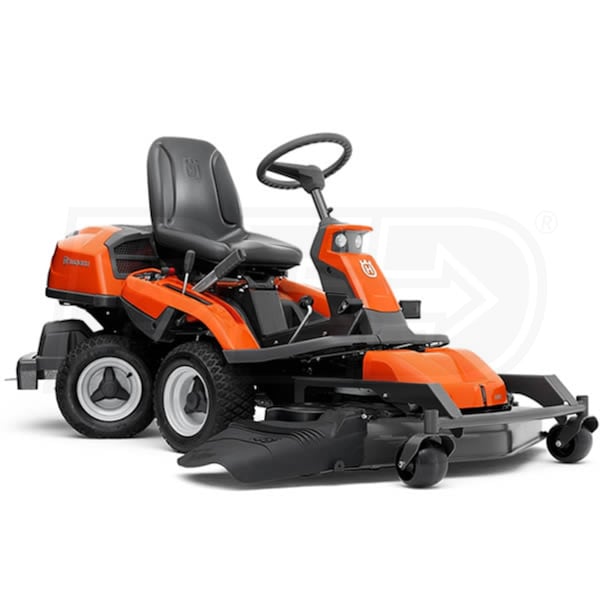

Husqvarna R322T (48") 20 HP All-Wheel Drive Articulating Riding Mower
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Special Order Item - Please Allow Up To 3 Weeks For Delivery
- The Newest Innovation In Riding Mowers
- Maneuverability of a zero turn - versatility of a lawn tractor
- Articulated Steering System
- Result in superior maneuverability with a minimum turning radius
- Maneuver easily around trees, flower beds and other obstacles
- 20HP/656cc Briggs and Stratton Endurance Series OHV Engine
- Full pressure lubrication system with premium oil filter
- All-Wheel Drive
- Pedal operated Tuff Torq K46 hydrostatic transmission
- Easures traction on uneven terrain
- Power is sent to all 4 wheels for greater traction and tire grip
- 48-Inch, 3-Blade, Front-Mounted Mower Deck
- Ensures excellent accessibility into corners and under bushes
- Blades engage automatically when the mower deck is lowered
- Quick Attach Frame
- Makes deck removal and use of optional attachments easy
- Hour meter with service minder
- Headlights -two 20W halogen lights provide efficient work light
- High back seats offers a comfortable ride
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
R322T

Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
20 HP
CC
656 CCs
Fuel Tank Size
3.2 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
2 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
571 Pounds
Consumer Warranty
3 Years
Product Length
79.5 Inches
Product Width
49.0 Inches
Product Height
45.5 Inches
Additional Model Numbers
967 03 21-01, R322T
Deck
Cutting Options
Side-Discharge
Deck Material
12-Gauge
Deck Construction
Stamped
Blades
3 Blades
Deck Positions
10 Positions
Cutting Width
48 Inches
Cutting Height
1.0-3.0 Inches
Deck Lift System
Manual Foot Operated
Engagement
Automatic
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
5.6 MPH
Maximum Reverse Speed
5.6 MPH
Drive Wheels
All Wheels
Transmission Type
Hydrostatic
Drive System
Hydrostatic
Accessories
Rear Bagger
No
Engine Guard
No
Seat Type
High Back w/ Seat Springs
Hour Meter
Included
Arm Rests
No
Front Bumper
No
Trailer Hitch
Included
Mulcher Kit
No
Headlights
Included
Wheels
Front Tire Size
16 Inch
Rear Tire Size
16 Inch
Tire Type
Pneumatic Wheels
Reviews
(2)
Husqvarna R322T Reviews & Ratings
Learn From My Mistake.
By Mason
New York
Review Posted 05/08/2023
Before you purchase this, do yourself a favor and call your LOCAL Husqvarna dealer. My local shop won't even sell these. Too much trouble. Bottom line, it's a flawed design. Unless you're cutting a fairway 3-4 times a week, you will have multiple, expensive issues. This machine is not designed or assembled for durability.
1. Belts. You will burn through your mower deck drive belts at an alarming rate. Do not purchase the Husqvarna brand belts. They're junk. You'll get very proficient at changing them.
2. Mower deck cover. The mower deck traps the clippings and packs them around the mandrel. And because those get hot (the cover makes it so you can't access the grease points) it'll catch fire. Best to leave it off.
3. Maintenance and repair. It's a challenge to try and do any repairs yourself. Just swapping out the carburetor involves removing the entire exhaust system. Another issue with maintenance is the oil drain. The plastic assembly is a good thought but the nut it's attached to which leads to the bottom of the crank case comes loose. There is no way to fit a wrench in there to tighten it so you have to keep a very, very close eye on your oil level.
As of this week it'll run for 45 minutes and just die. Add to this the fact that I've just recently paid it off. This was a poor purchase on my part. Please do not make the same error as I did.
1. Belts. You will burn through your mower deck drive belts at an alarming rate. Do not purchase the Husqvarna brand belts. They're junk. You'll get very proficient at changing them.
2. Mower deck cover. The mower deck traps the clippings and packs them around the mandrel. And because those get hot (the cover makes it so you can't access the grease points) it'll catch fire. Best to leave it off.
3. Maintenance and repair. It's a challenge to try and do any repairs yourself. Just swapping out the carburetor involves removing the entire exhaust system. Another issue with maintenance is the oil drain. The plastic assembly is a good thought but the nut it's attached to which leads to the bottom of the crank case comes loose. There is no way to fit a wrench in there to tighten it so you have to keep a very, very close eye on your oil level.
As of this week it'll run for 45 minutes and just die. Add to this the fact that I've just recently paid it off. This was a poor purchase on my part. Please do not make the same error as I did.
Mason Does Not Recommend This
Was this review helpful?
Rating Breakdown
2/5
2/5
1/5
1/5
Pros:
Climbs hills well.
Cons:
Expensive, Low Quality, Unreliable

Very nice mower, but...
By David K.
taneytown, Maryland
Purchased 02/13/2015 |
Review Posted 04/23/2015
I had to mount the mower deck myself. I needed help to do it. My big problem was that the person who helped me noticed puddles of oil on my garage floor, and I said yes every day since it was delivered.
This person owns Mason Dixon equipment repair. He said do not use it until the problem is resolved. I contacted Jose after many attempts, and he said to take it to the nearest certified dealer. Anyway, I have done that but they have a 3 to 4 week backlog, so I still can't use it. Good thing I did not sell my old rider yet. Please help in any way you can. THANKS.
This person owns Mason Dixon equipment repair. He said do not use it until the problem is resolved. I contacted Jose after many attempts, and he said to take it to the nearest certified dealer. Anyway, I have done that but they have a 3 to 4 week backlog, so I still can't use it. Good thing I did not sell my old rider yet. Please help in any way you can. THANKS.
David K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
2/5
2/5
4/5
