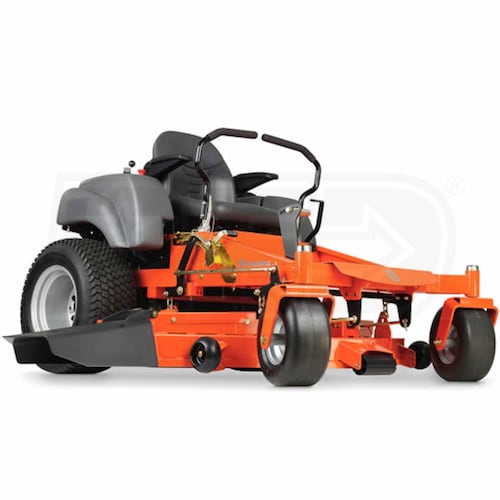

Husqvarna MZ61 (61") 27HP Zero Turn Mower

Model:

970 46 77-01

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Husqvarna MZ61 (61
Husqvarna MZ61 (61") 27HP Zero Turn Mower
Model: 970 46 77-01
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Mower Is Too Large To Fit On Lift Gate For Delivery
  • Must have a loading dock or fork lift @ delivery locale to unload
  • 27HP/810cc Briggs & Stratton Endurance Series V-Twin Engine
  • Smooth power output, quieter operation and outstanding durability
  • Full pressure lubrication system with spin-on oil filter
  • Hydro-Gear ZT3100 Hydrostatic Commercial Transmission
  • Fan cooled 10cc pumps and wheel motors on each drive wheel
  • Mow up to 4.2 acres per hour at speeds up to 8.5 mph
  • Delivers higher ground speeds with smooth performance
  • 61-Inch Fabricated (Welded) Mower Deck
  • Heavy duty 11-gauge steel w/ 3 blades and greaseable spindles
  • Twin steel sheet (1/4" combined) design for added strength
  • Impact resistant discharge shield
  • Two reinforced anti-scalp rollers + nose roller
  • Pedal-assisted deck lift adjustment from seated position
  • Mega-Sized Welded Steel Frame
  • 2'' x 3'' steel tube chassis for superior strength
  • Ergonomic High Back Seat With Armrests
  • Helps reduce fatigue and delivers a smoother ride
  • Warranty: 4 Years or 400 Hours (whichever occurs first)
  • Model 970 46 77-01 Is The Same As 967 27 75-01 - Different Crates
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

970 46 77-01
specs product image PID-12428
Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
27 HP
CC
810 CCs
Fuel Tank Size
5 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
770 Pounds
Consumer Warranty
4 Years
Commercial Warranty
4 Years
Product Length
75.5 Inches
Product Width
76 Inches
Product Height
42.0 Inches
Power Type
Gas
UPC
193028071111
Additional Model Numbers

967 27 75-01, 970 46 77-01

Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Spindle Material
Aluminum
Deck Construction
Welded
Blades
3 Blades
Deck Positions
12 Positions
Cutting Width
61 Inches
Cutting Height
1.5-4.5 Inches
Deck Lift System
Manual Foot Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
8.5 MPH
Maximum Reverse Speed
5 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT-3100 Hydro-Gear Transaxle
Accessories
Rear Bagger
Sold Separately
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Trailer Hitch
Sold Separately
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Washout Port
Yes
Wheels
Front Tire Size
13 x 6.5 Inch
Front Axle
Cast-Iron
Rear Tire Size
22 x 10 Inch
Tire Type
Pneumatic Wheels
