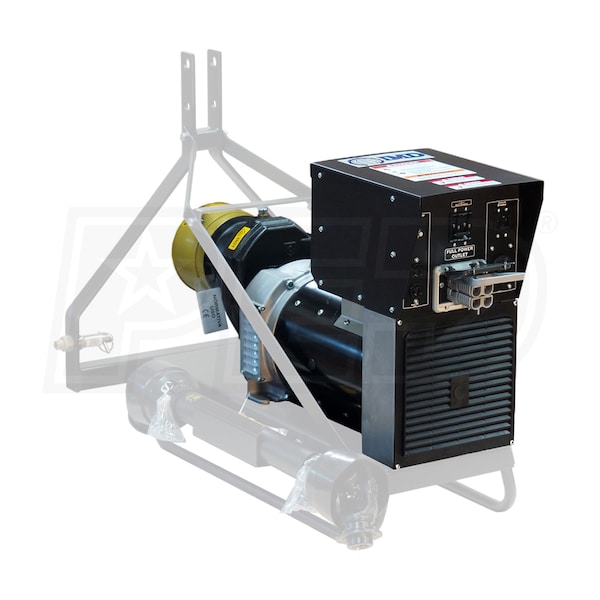

IMD PTO 31/2 S AVR - 31kW Tractor-Driven PTO Generator w/ AVR (540 RPM)

Model:

31005

Write A Review
$5,476.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

IMD PTO 31/2 S AVR - 31kW Tractor-Driven PTO Generator w/ AVR (540 RPM)
IMD PTO 31/2 S AVR - 31kW Tractor-Driven PTO Generator w/ AVR (540 RPM)
Model: 31005
$5,476.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

31,000 Rated Watts

Surge Watts

60,000
Starting Watts

  • ***Please Note - 3-Point Hitch (Sold Separately)
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 63 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Automatic Voltage Regulator (AVR)
  • Produces clean and safe electricity for sensitive electronics
  • 100% Copper Winding, Low Distortion Alternator
  • Provides THD <5%, for high quality power output
  • Aluminum & Steel Housing
  • Lightweight design for maximum durability
  • Heavy Duty Cast Iron Single Stage Gearbox
  • Lifetime pre-sealed maintenance-free bearings
  • 4" Three Bar LED Meter
  • Provides accurate display of Hertz, Volts, and Amps output
  • Added Features (Full Power Plug Not Included)
  • Magnetic circuit breaker w/ individual circuit protection
  • Simultaneous 120V & 240V output w/ Full power outlet
  • Standard 1-3/8", 6-spline input shaft (Sold Separately)

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 14-50R
Full Power Receptacle
31005
specs product image PID-92600
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
372 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
39 Inches
Product Width
19 Inches
Product Height
29 Inches
Additional Model Numbers

PTO 31/2 S AVR, 31005

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
31000 Watts
Surge Watts
60000 Watts
Rated Amps
129 Amps
Voltage Meter
Yes
Tractors HP
63 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Full Power Receptacle
1
