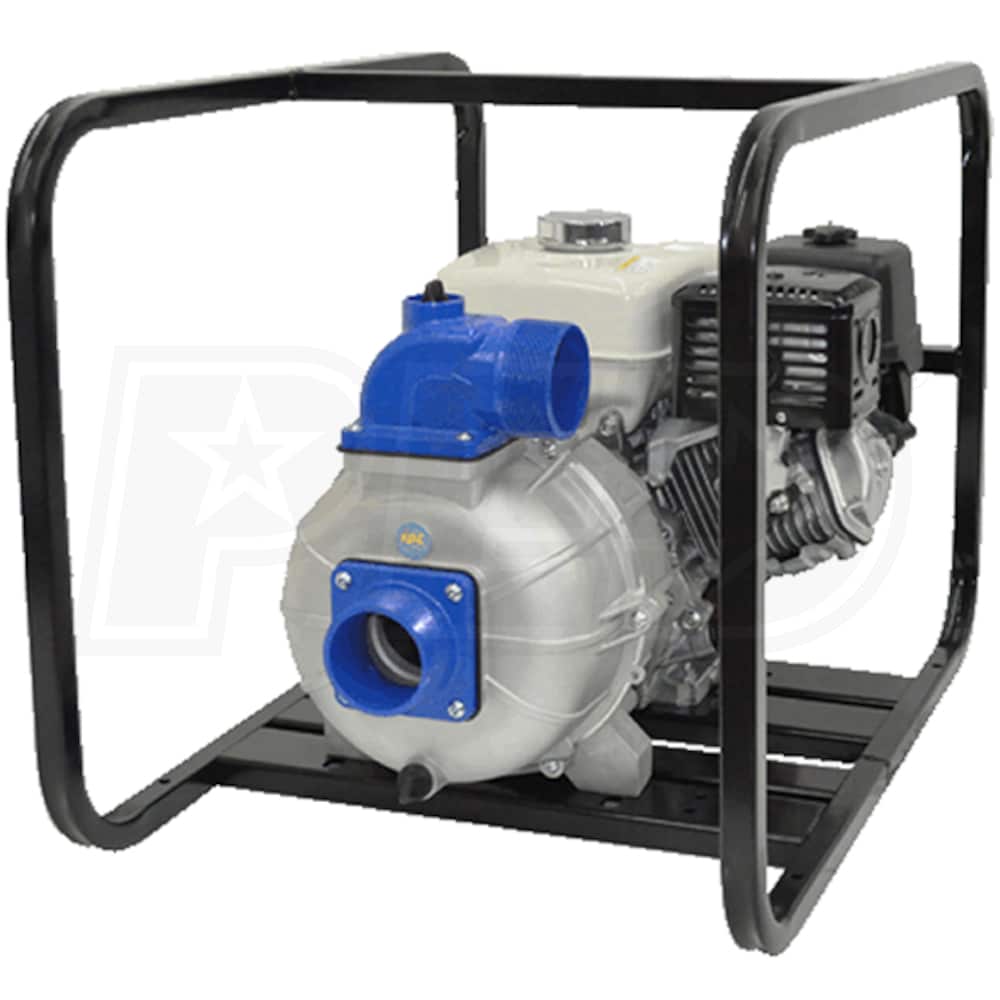

IPT Pumps 4S13XZR - 530 GPM (4") Electric Start Diesel Trash Pump w/ HATZ 1B50 Engine

Model:

4S13XZR

Write A Review
$7,551.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

IPT Pumps 4S13XZR - 530 GPM (4
IPT Pumps 4S13XZR - 530 GPM (4") Electric Start Diesel Trash Pump w/ HATZ 1B50 Engine
Model: 4S13XZR
$7,551.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

4 Inch

Style

Trash

GPM

530 Gallons

Engine

Hatz

  • IPT 4-Inch Portable, Diesel-Powered Centrifugal Trash Pump
  • Easily handles leaves, debris, and solids up to 2" diameter
  • Commercial Grade HATZ 1B50 517cc 4-Stroke Diesel Engine w/ Electric Start
  • Compact, lightweight design provides long service life & easy starting
  • Fuel efficient, provides longer runtime compared to gasoline engines
  • Low Oil Alert
  • Provides added protection against engine damage
  • Cast Aluminum Construction w/ Cast Iron (Volute/Impeller) Wearparts
  • Designed to resist abrasion which helps extend pump life
  • 4-Inch Heavy-Duty Male NPT Suction & Discharge Ports
  • Removable design allows ports to be replaced if damaged/stripped
  • Adjustable Discharge Flange
  • Versatile design, rotates in 90° increments for ease of use
  • Silicon Carbide Mechanical Seal w/ Graphite Impregnated Seat & Viton Elastomers
  • Provides exceptional abrasion and corrosion resistance for maximum performance
  • One Tool Serviceability (Tool Included)
  • Makes this pump extremely easy to service and pump maintenance
  • Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
  • Protects the pump/engine during transportation & operation
  • Helps prevent "pump-walk" when pump is running
  • Includes 4" Suction Strainer
  • 1-Year Limited Warranty
  • ***Please Note - Requires 12V Battery at least 18AH (Not Included)***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

4S13XZR
specs product image PID-76547
General Information
Product Category
Water Pump
Motor
Battery Included
No
Pump
Gallons Per Minute
530 Gallons
Inlet Diameter
4 Inch
Outlet Diameter
4 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Suction Head
26 Feet
Total Head Lift
103 Feet
Submersible
No
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start
Low Oil Shutdown
Yes
Engine Cycles
4-Cycle
CC
517 cc
Fuel Tank Size
1.32 Gallons
Run Time
1.8 Hours
Overview
Product Category
Water Pump
Weight
240 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
UPC
726846540349
Accessories
Tool Kit
Yes
Strainer
Yes
