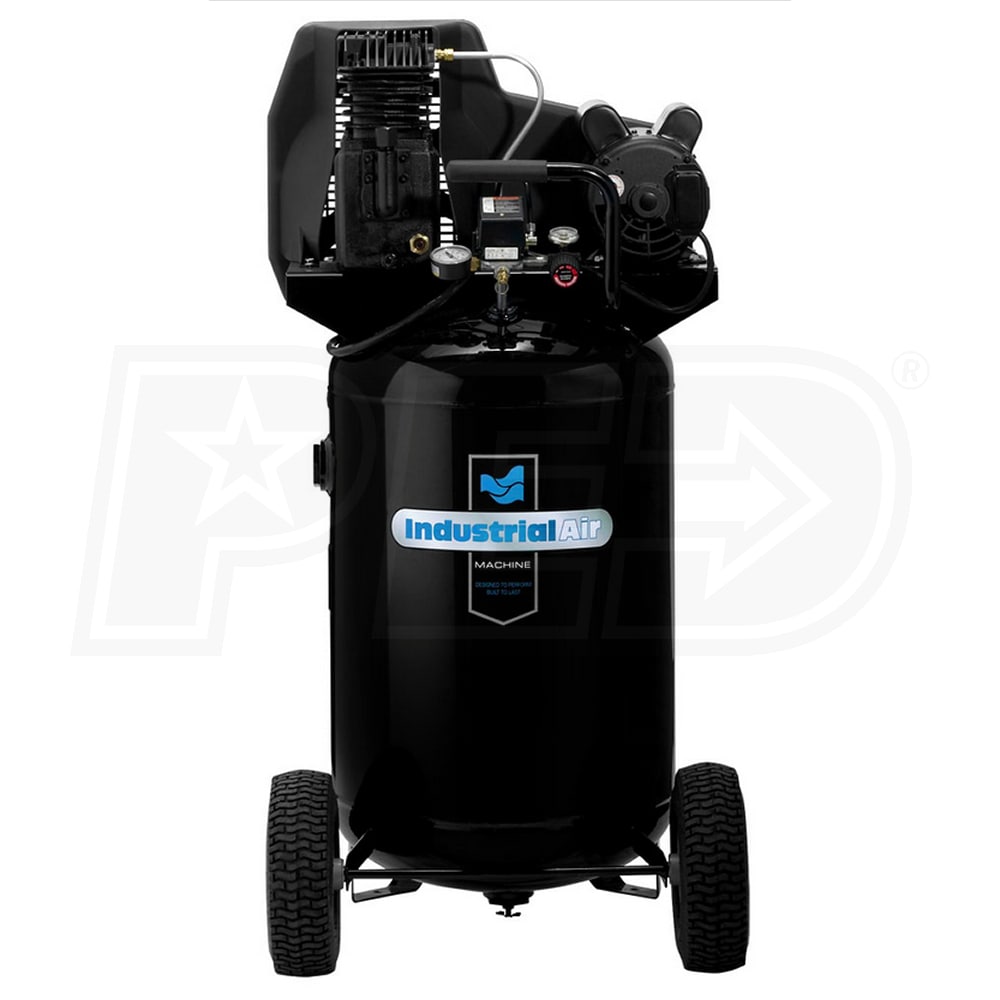

Industrial Air 1.9-HP 30-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor
Model:
ILA1883054
+
Share This Product
Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.7
Tank Size
30
- Cast Iron, Twin-Cylinder, Oil Lubricated Pump
- One-piece cast iron crankcase
- Thermally stable cast iron cylinder body
- Aluminum head & valve plate and automotive style ball bearings
- Durable Swedish stainless steel reed valves
- Oil level sight glass and easily accessible oil fill
- 12" cast iron balanced fly wheel
- Heavy Duty 1.9-HP Induction Motor
- Designed for maximum performance and efficiency
- 155 PSI Max Pressure
- Designed for optimum tool performance
- 30-Gallon Vertical Portable Tank Design
- Optimizes storage space & pneumatic tires make moving easy
- Dual-Voltage Motor
- Wired for standard 120-Volt outlet, can be converted to 240-Volt
- Synthetic Oil Included
- Designed for optimum performance and long life
- 1/4" NPT Air Outlet & On/Off Switch
- Quick-set regulator, tank & working pressure gauges
- Factory warranty: 1 year residential use, 90 days commercial use
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ILA1883054
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Engine
HP
1.9
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.7
CFM Rated @
90 PSI
CFM @ 40 PSI
7.1
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
190 Pounds
Certification
CSA
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
24.75 Inches
Product Width
24.75 Inches
Product Height
49.75 Inches
Power Type
Electric
UPC
846212001554
Reviews
(37)
Industrial Air ILA1883054 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Melissa, the Air Compressor Expert
Is this compressor rated for continuous duty
Bob
from Connecticut
March 01, 2013
I'm looking for an upright wheeled portable compressor with an aluminum, stainless, or other rust-free tank that produces at least 5 cfm at 90 psi and that won't trip a 15-amp breaker if used with an extension cord.
Tim
from California
August 11, 2011
