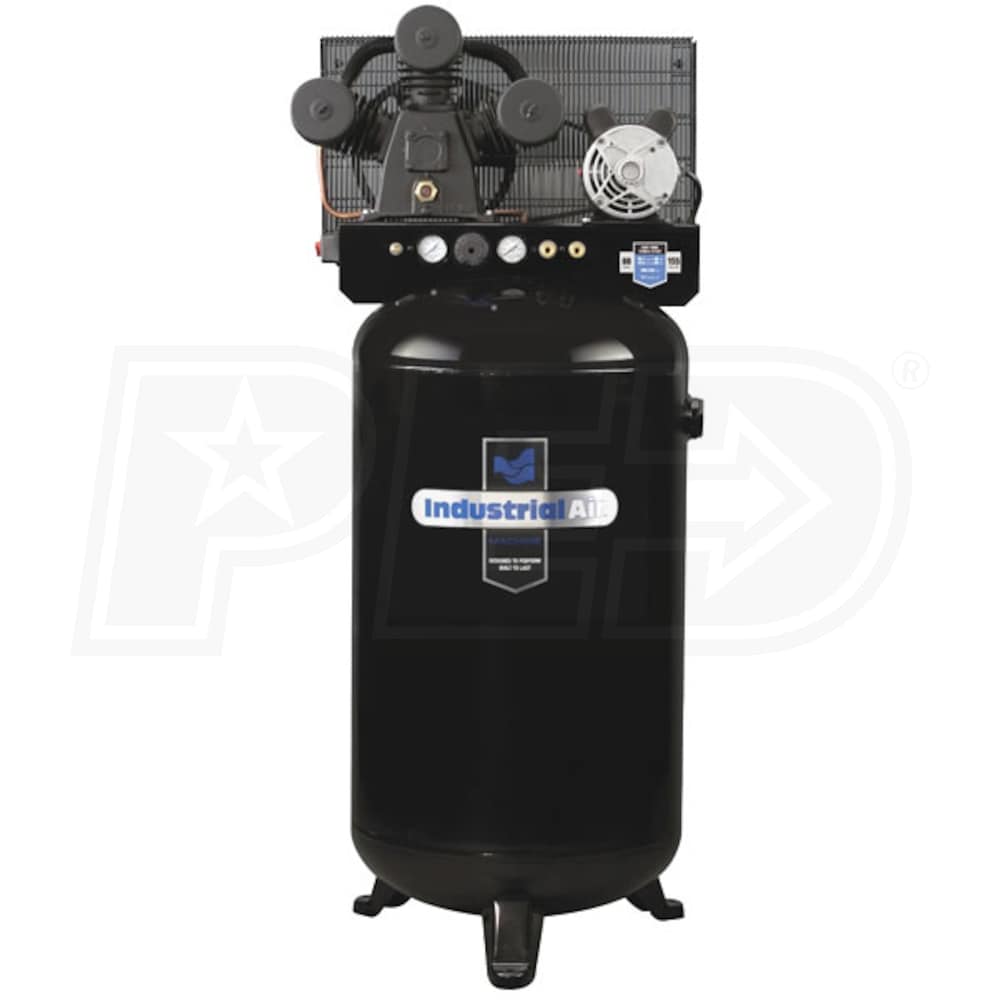

Industrial Air 4.7-HP 80-Gallon (Belt-Drive) Single Stage Air Compressor (230V 1-Phase)
Model:
ILA4708065
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
9
$180.90
In-Stock
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
Model: 21999-0390-Z-FD
$180.90
Only 2 In-Stock
$783.33
Factory-Direct
Model: DXCM024-0400
$209.00
Factory-Direct
Model: 072-0030IA
$107.99
Factory-Direct
Model: 018-0059CT
$4.99
Factory-Direct
Model: 21999-0390-AC
$171.00
Only 2 In-Stock
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
14
Tank Size
80
- Heavy Duty, Single Stage Compressor
- Powers a wide variety of air tools
- High air flow, single stage unit for hobbyists & contractors

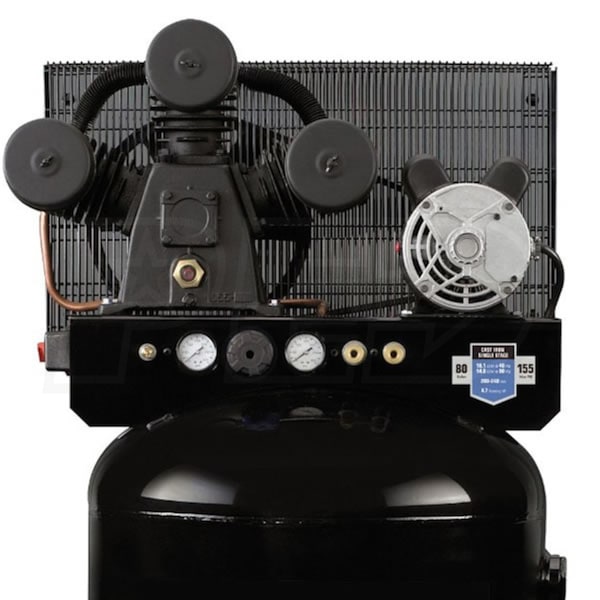

- Cast Iron 3 Cylinder Pump
- Oil lubricated & sight glass for smooth operation & maintenance
- Delivers 16.1 CFM's @ 40 PSI & 14 CFM's @ 90 PSI
- 155 PSI max pressure for optimum tool performance
- Integrated Control Panel
- Easy access 2 quick connects, tank & tool pressure, relief valve
- Large Capacity 80 Gallon Air Receiver
- More air for longer run times; ASME approved for safety
- Easily powers ratchets, impacts, spray guns, hammers, etc.
- Shipped With Synthetic Oil
- Provides optimum performance & long pump life
- Vertical Tank
- 31.5L x 34.75W x 77H takes up less floor space
- Limited Factory Warranty
- 1-yr parts and service warranty
- 2-yr warranty on pumps reed valves, crankcase, bearings and units tank
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ILA4708065
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
4.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
354 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
77 Inches
Power Type
Electric
UPC
846212002599
Reviews
(2)
Industrial Air ILA4708065 Reviews & Ratings
Good So Far
By Kevin N
Colorado
Purchased 04/16/2023 |
Review Posted 05/30/2023
Showed up undamaged (big win). Fired up for the first time and the air hose inlet from the pump blew off. Re-seated it and tightened fitting. Still holding. Its not quiet, and its not that loud either. Seems to make air pretty fast. Hoping it serves me for a long time.
Kevin N Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Easy To Use, Features
Cons:
Expensive
Industrial Air Compressor Experience
By Fred S.
Lynden, Washington
Purchased 02/23/2021 |
Review Posted 04/25/2021
I wanted a compressor that was belt-driven, oiled and with a sufficiently large tank to eliminate the need for constant cycling. The device is in a workshop that has homes to the rear that have small children who go to sleep early. Quiet was important and was a product that was North American made. This compressor seems to satisfy those criteria. Initially, the compressor's motor had the unfortunate habit of blowing the breaker when air pressure got too low. When there was no pressure in the tank, there were no issues but with partial pressure, the motor would not spin the belt and the breaker would trip.
Sanborn Manufacturing, the home office, was helpful especially Thomas Ferk but he was notably suspicious of my electrical connections. All was done according to the manual and finally, he was satisfied. He sent out a new switch and motor and found a warranty tech ninety minutes away. Not high on the mechanic's importance list, he arrived on a Friday evening and stayed until 8:30 PM. He just elected to change the switch. Saturday morning, same problem. The next Saturday, he came out again and changed out the motor. That did the trick. It's worked flawlessly since. I wish he had changed out the motor that first Friday evening. Would have saved me a lot of aggravation and him a three hour trip.
Stuff happens, I guess. Bad motor. Shouldn't happen with a compressor selling for a thousand dollars but that's life!
Sanborn Manufacturing, the home office, was helpful especially Thomas Ferk but he was notably suspicious of my electrical connections. All was done according to the manual and finally, he was satisfied. He sent out a new switch and motor and found a warranty tech ninety minutes away. Not high on the mechanic's importance list, he arrived on a Friday evening and stayed until 8:30 PM. He just elected to change the switch. Saturday morning, same problem. The next Saturday, he came out again and changed out the motor. That did the trick. It's worked flawlessly since. I wish he had changed out the motor that first Friday evening. Would have saved me a lot of aggravation and him a three hour trip.
Stuff happens, I guess. Bad motor. Shouldn't happen with a compressor selling for a thousand dollars but that's life!
Fred S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
5/5
4/5
Pros:
Easy To Use, Quiet, Price, Reliable
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
When using the compressor, at what PSI does the motor kick on to refill, and what is the duty cycle of the pump?
