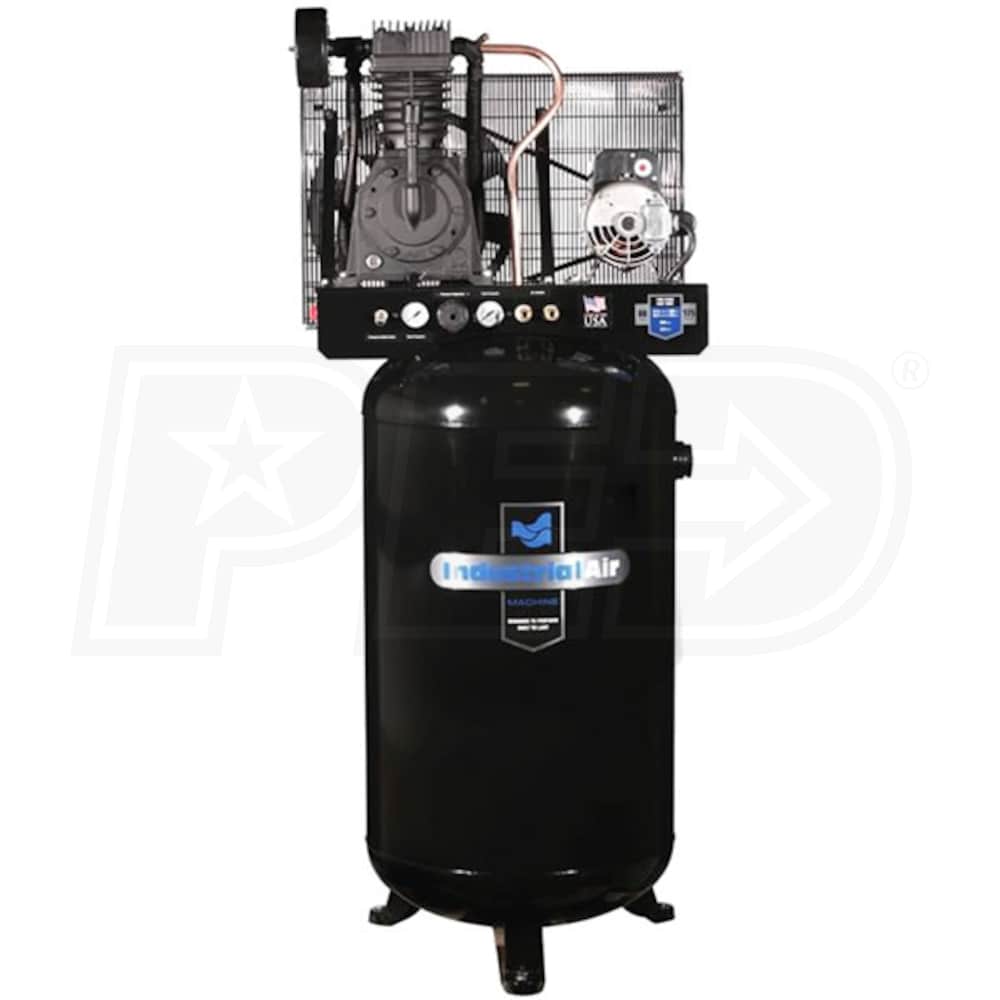

Industrial Air 5-HP 80-Gallon Two-Stage Air Compressor (240V 1-Phase)
Model:
IV5048055
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
17.9
Tank Size
80
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Industrial Air Two-Stage Air Compressor
- Provides enough power to operate more than one air tool or device at one time
- 5-HP Electric Motor With Thermal Overload Protection
- Improved compression efficiency and low pump RPM
- T.O.P.S. protects the motor from voltage fluctuations; Magnetic starter not required

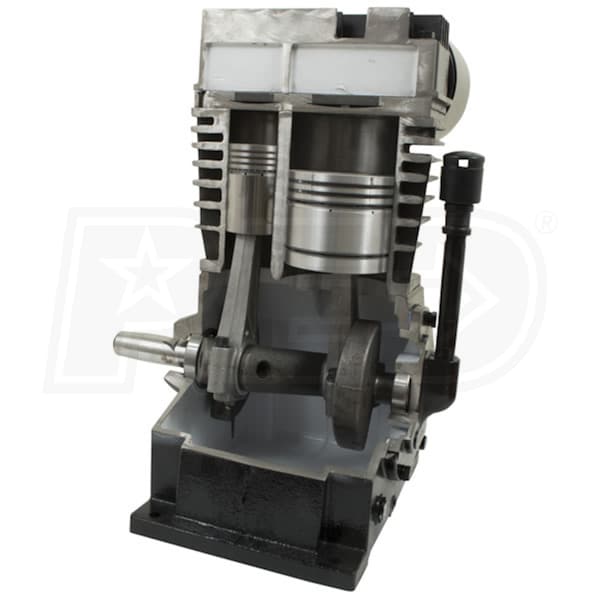

- Patented Cast Iron Pump & Piston Design

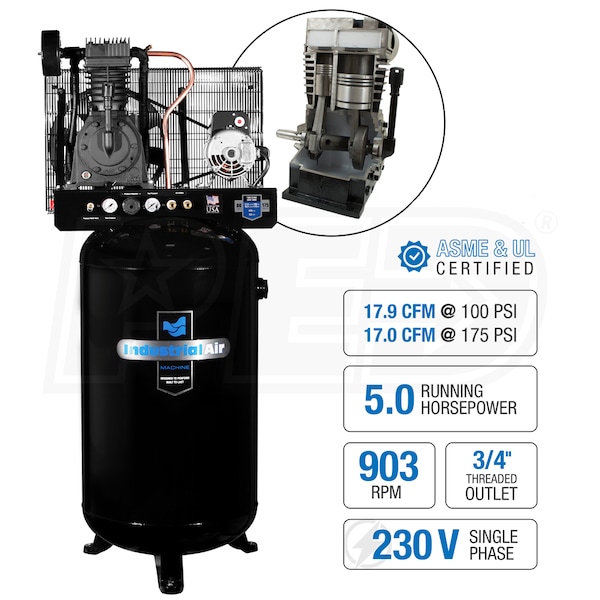

- Delivers 17.9 CFM at 100 psi and 17.0 CFM at 175 psi
- Industrial style air intake filter and large oil level sight glass for easy maintaining
- Integrated Control Panel
- Two large pressure gauges and air outlets for convenience
- Air flow regulator with pressure relief valve for safe operation
- Patented Cast Iron Flywheel & Asymmetrical Deep Groove Cooling Fins
- Large fins for low pump RPM, improved cooling, longer pump life
- Cooler pumps last longer & run more effectively with patented fins
- 80-Gallon Air Tank
- ASME rated for safety; 175 PSI maximum pressure
- Manual oil drain with 4" extension simplifies maintenance
- 2 Year Limited Factory Warranty
- Protects your investment
- Purchase & use of maintenance kit doubles the pump warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
IV5048055
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17.9
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Product Category
Air Compressor - Stationary
Weight
470 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212008669
