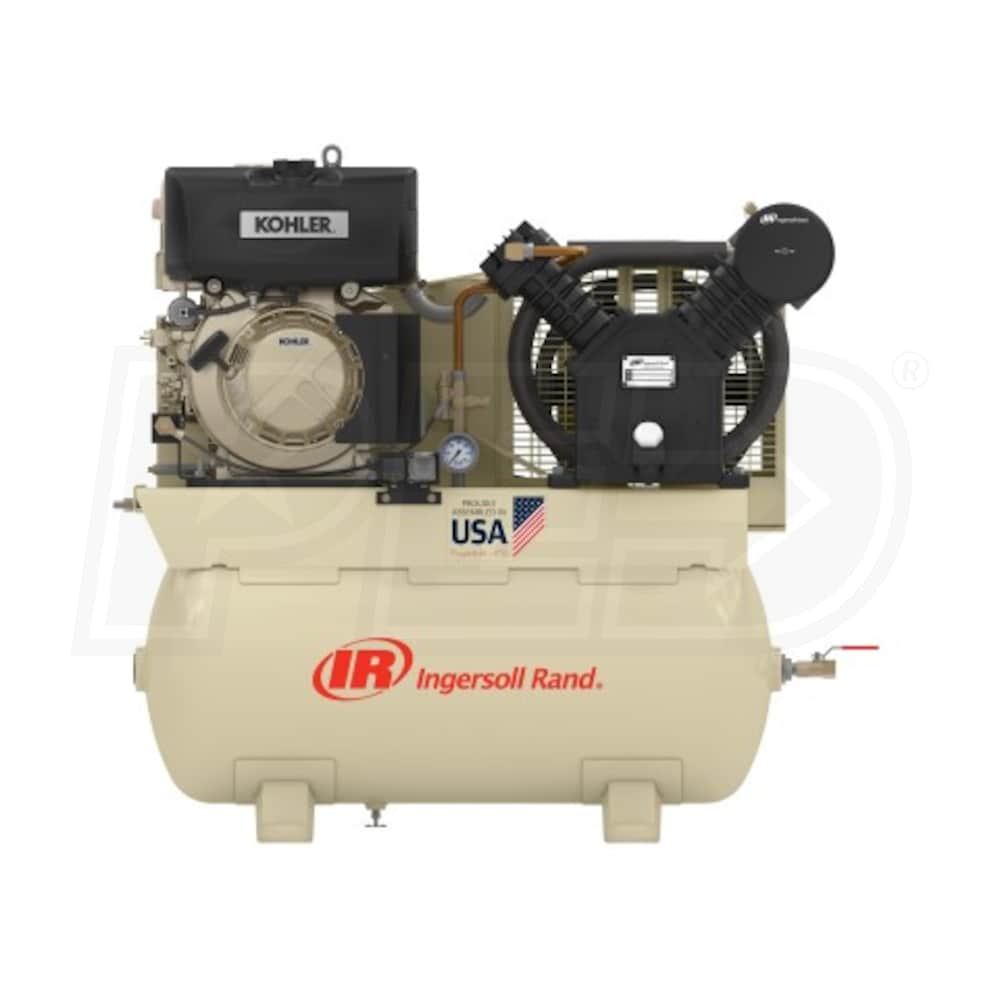

Ingersoll Rand 10-HP 30-Gallon Two-Stage Diesel Truck Mount Air Compressor w/ Electric Start Kohler Diesel Engine
Model:
2475F10DK
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Kohler
CFM
22.9
Tank Size
30
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

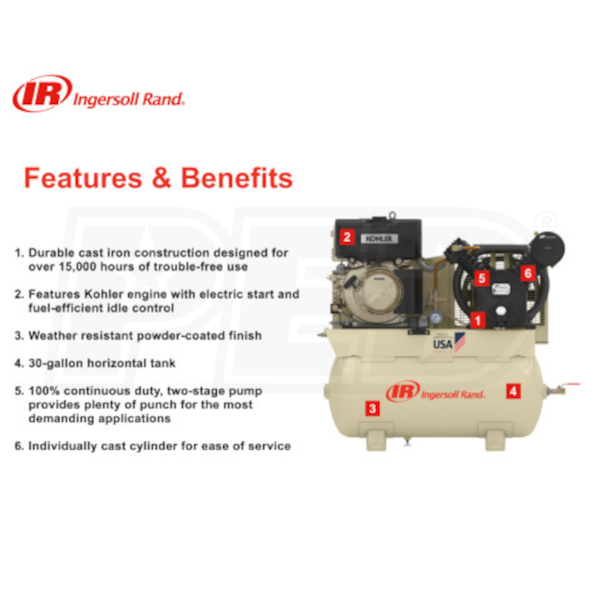

- IR Two-Stage Diesel Driven Truck Mount
- Ideal for situations where electrical power is scarce
- Designed for over 15,000 hours of trouble-free use
- Cast-Iron Construction
- 100% continuous duty, reliable performance that's built to last
- Two-stage pump produces 22.9 CFM @ 90 PSI; Max 175 PSI
- Kohler 10-HP Air-Cooled Diesel Engine
- High power, low noise and easy operation
- Direct injection technology offers low fuel consumption
- Idle control saves on fuel and allows for quieter operation
- Electric Start
- Start your air compressor with a turn of a key
- Extra back up with recoil start in case of power failure
- Battery and cables not included; must be purchased separately
- 30-Gallon ASME Air Tank
- Large pressure gauge lets you monitor easily
- Enclosed belt guard for extra protection
- Weather-Resistant Paint
- Perfect for fleet and field service applications
- Powder-coated finish is tough and stands up to the elements
- American Pride
- Proudly built in the U.S.A.
- 2-year warranty available with purchase of All-Season Lubricant Start-Up Kit Model: 47732403001
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

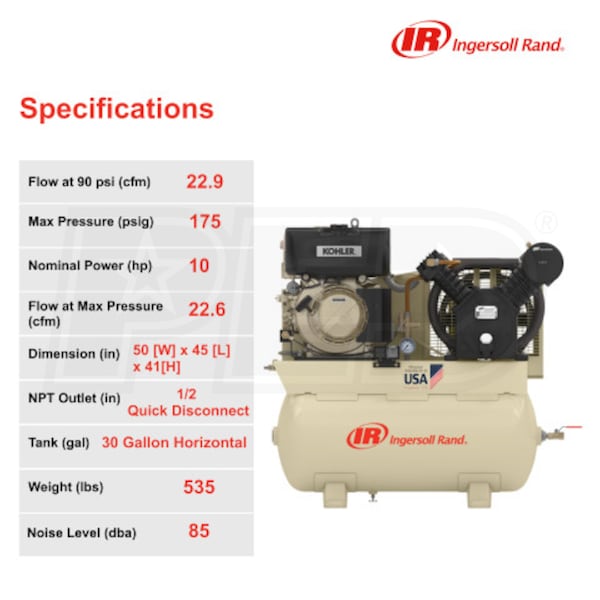

Specifications
2475F10DK
General Information
Product Category
Air Compressor - Portable
Engine
HP
10
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22.9
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
535 Pounds
CARB Compliant
Yes
Certification
ASME
Consumer Warranty
1 Year
Product Length
45 Inches
Product Width
50 Inches
Product Height
41 Inches
Power Type
Diesel
UPC
678384780018
