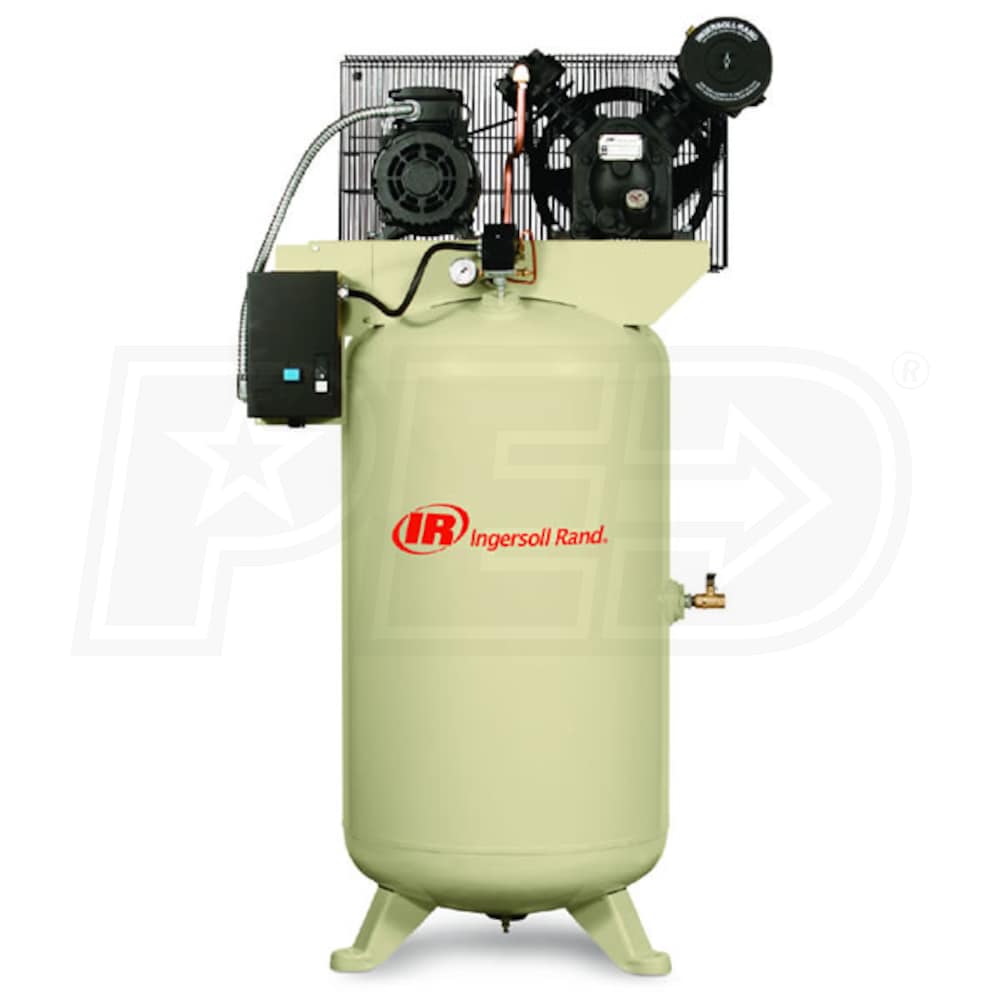

Ingersoll Rand Type 30 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)

Model:

2475N5-230.3

Write A Review
$3,149.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks

Ingersoll Rand Type 30 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Ingersoll Rand Type 30 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: 2475N5-230.3
$3,149.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 1
These accessories are required to properly setup/install this product.
Learn More
Subscribe to Save
Increase kit quantity to receive better savings per kit.
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quantity
$169.99
In-Stock
Optional Accessories 12
$19.25
Factory-Direct
$191.00
Factory-Direct
$2,449.00
Only 2 In-Stock
$399.00
In-Stock
$372.00
Factory-Direct
$1,763.00
Factory-Direct
$783.33
Factory-Direct

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

16.8

Tank Size

80

Ingersoll Rand Type 30 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • High Efficiency Parts
  • High-efficiency stainless steel valves
  • High-efficiency intercooler
  • High-efficiency inlet air filters with sound attenuation baffles
  • 2-Piece Connection Rods
  • Less moving parts increases reliability
  • High-Efficiency Intercooler
  • Lowers compressed air temperature and reduces condensation
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and thoroughly tested prior to shipment
  • 1-Year Warranty (Unit Ships Dry)
  • 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2475N5-230.3
specs product image PID-736
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
15.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Product Category
Air Compressor - Stationary
Weight
597 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
48 Days
Commercial Warranty
40 Days
Product Length
48 Inches
Product Width
40 Inches
Product Height
76 Inches
Power Type
Electric
UPC
663023031002

Reviews

(4)
Ingersoll Rand 2475N5-230.3 Reviews & Ratings
Customer Photos and Videos
review image 1
Dale, the Power Equipment Expert
Expert Recommended Review
2475N5-230.3
By Dale V.
Power Equipment Expert
Review Posted 04/26/2019
Efficiency and quality construction are the hallmarks of this 2-stage compressor from Ingersoll Rand.

High-efficiency is what Ingersoll Rand strives for. These high-efficiency features include: an intercooler that lowers compressed air temperature and reduces condensation, stainless steel valves, and inlet air filters with sound attenuation baffles. With all these components, you're looking at a longer pump life.

This unit is perfect for applications where air demands need to be consistent. The over sized bearings and belt wheel deliver 100% duty cycle air power when and where you need it.

As always with IR, you can count on all units being thoroughly tested prior to shipment.

Lastly, take Ingersoll Rand's 1 year Factory Warranty and bump it to 2 years with the purchase of their start-up kit. You're going to need the oil since these compressors ship dry. Why not kill to birds with one stone?
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Can't go wrong highly recommended
By Roger G.
Fontana, California
Purchased 03/16/2021 |
Review Posted 04/16/2021
review 1 image 1
I finally got it hooked up I was amazed how quickly tank filled up very quiet operation more than I need for my 3 bay shop
Roger G. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Quiet, High Quality, Id Buy It Again
Verified Buyer
Verified Buyer
Nice Product
By Alan K.
Talihina, Oklahoma
Purchased 08/12/2014 |
Review Posted 09/04/2014
Very efficient. Recovery time is amazing. Super quiet. Runs a six bay repair shop with no issues.
Alan K. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Quiet, Fast, Reliable, High Quality
Verified Buyer
Verified Buyer
Pro thumbs up
By Reid H.
Weatherford, Texas
Purchased 07/12/2012 |
Review Posted 08/03/2012
We purchased our Rand compressor, refrigerant dryer and the Rapid Air 3/4" Max line from Air Compressors Direct.com for use in our Rhino Lining and Auto Accessory shop.

All the products have proven to be very useful and fit our needs well. The Rapid line is easy to use as long as you follow the directions and use the beveling tool before putting the fittings and air line together (oops).

We have plenty of nice dry air and spent minimal time plumbing air to several spots throughout the shop. I give Air Compressors Direct a thumbs up for carrying great equipment at fair prices.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
