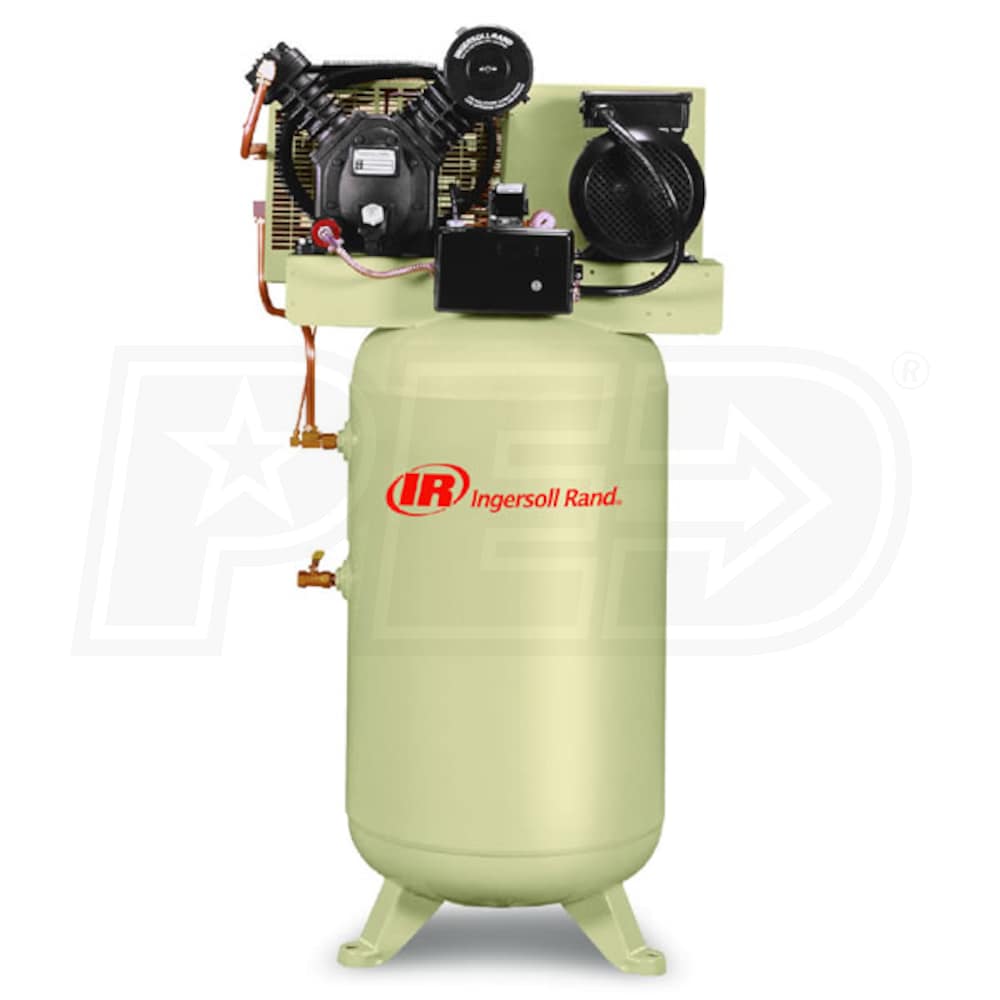

Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase) Fully Packaged

Model:

2475N7.5-460.3-FP

Write A Review
$4,029.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Jan 23rd
Shipping to60601

Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase) Fully Packaged
Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase) Fully Packaged
Model: 2475N7.5-460.3-FP
$4,029.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 1
These accessories are required to properly setup/install this product.
Learn More
Subscribe to Save
Increase kit quantity to receive better savings per kit.
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quantity
$169.99
In-Stock
Optional Accessories 9
$19.25
Factory-Direct
$1,499.00
In-Stock
$191.00
Factory-Direct
$399.00
In-Stock
$1,763.00
Factory-Direct

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

24

Tank Size

80

Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase) Fully Packaged


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Fully Packaged
  • Designed for 460V, 3-phase power
  • E-Series Motor Starter
  • Already installed to protect the motor
  • Cast Iron Cylinders & Pump
  • Electric drain valve (mounted & piped)
  • Continuous-Duty Operation
  • Automatic start/stop control with pressure switch
  • Reliable oversized bearings & cast-iron balanced belt wheel
  • V-Block Deep Finned Cylinders
  • Provides 360° cooling for lower operating temperature
  • Low oil level shutdown switch protects the pump
  • Air cooled aftercooler produces drier air
  • 80 Gallon ASME Receiver
  • Electric drain valve reduces maintenance
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully tested & UL/CSA certified
  • 1-Year Warranty (Unit Ships Dry)
  • 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2475N7.5-460.3-FP
specs product image PID-6637
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
11
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Overview
Product Category
Air Compressor - Stationary
Weight
611 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
48 Inches
Product Width
40 Inches
Product Height
76 Inches
Power Type
Electric
UPC
678384655644
