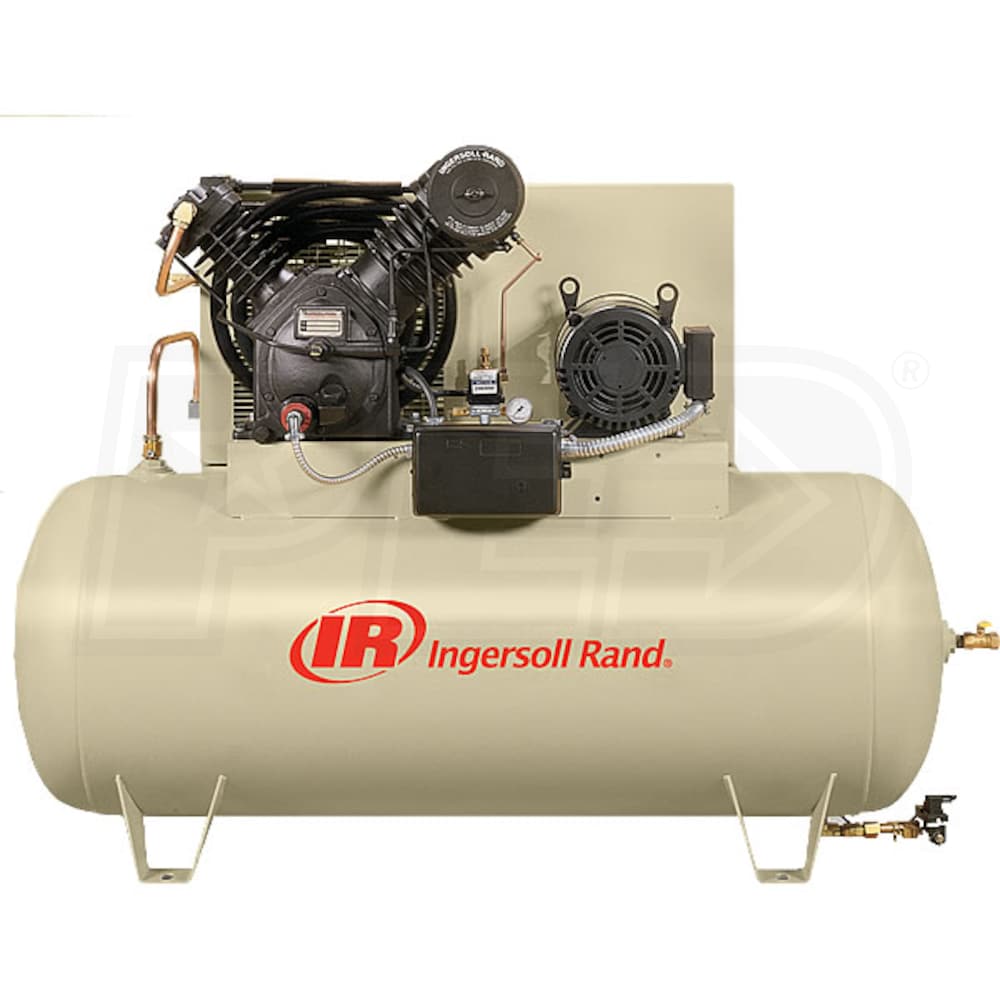

Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase) Fully Packaged
Model:
2545E10-FP-460
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
35
Tank Size
120
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Fully Packaged
- E-series motor starter (mounted & wired)
- Relief valve & discharge ball valve (mounted & piped)
- Air-cooled aftercooler (mounted & piped)
- Low oil level shutdown switch (mounted & wired)

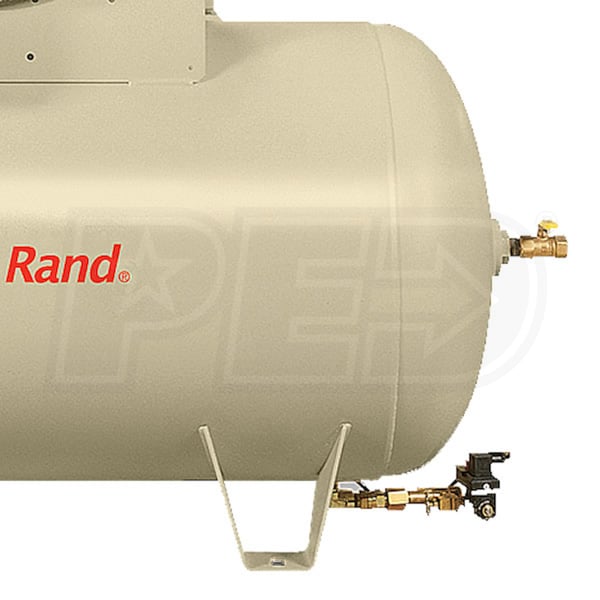

- Electric drain valve (mounted & piped)
- Dual control - start/stop or constant speed
- Continuous-Duty Operation

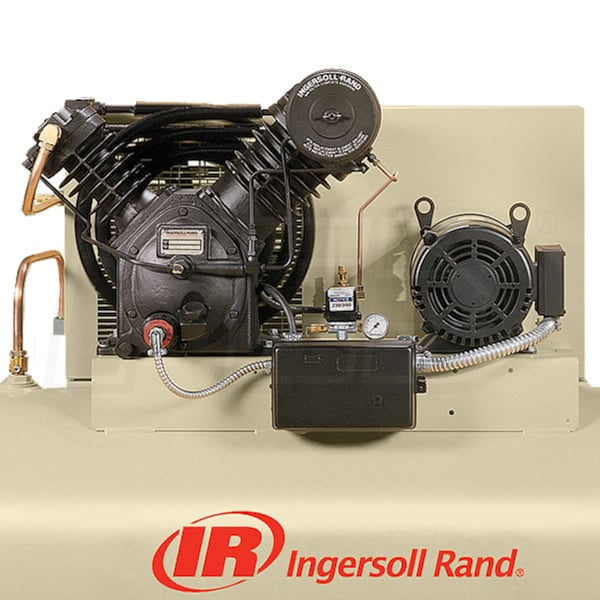

- 100% cast-iron cylinders and pump
- Pump life designed for over 15,000 hours of trouble-free use
- Oversized cast-iron balanced belt wheel & industrial-grade bearings
- V-Block Deep Finned Cylinders
- Provides 360 degrees cooling for lower operating temperature
- Individually cast cylinders and overhung crankshaft simplifies maintenance
- Reliable Operation
- Fully enclosed flywheel, belt and motor sheave
- One-piece connecting rod for minimized downtime
- American Pride
- Proudly built in the U.S.A.
- All units are prewired, OSHA compliant and thoroughly tested prior to shipment
- 1-Year Warranty (Unit Ships Dry)
- 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
2545E10-FP-460
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
175 PSI
CFM @ 90 PSI
35.6
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Overview
Product Category
Air Compressor - Stationary
Weight
1104 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
83 Inches
Product Width
36 Inches
Product Height
65 Inches
Power Type
Electric
UPC
678384659376
