Ingersoll Rand 2545K10-VP2
Ingersoll Rand 2545K10-VP2
Ingersoll Rand 2545K10-VP2
Ingersoll Rand 2545K10-VP2
Ingersoll Rand 2545K10-VP2
Ingersoll Rand 2545K10-VP2
Hover to zoom
1 of 3
Ingersoll Rand 2545K10-VP2
Ingersoll Rand 2545K10-VP2
Ingersoll Rand 2545K10-VP2

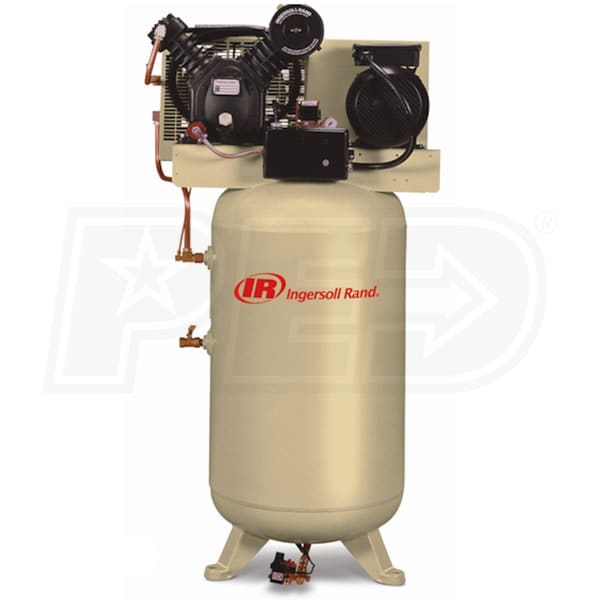

Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Value Plus Package

Model:

2545K10-VP2

Write A Review
$5,069.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Value Plus Package
Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Value Plus Package
Model: 2545K10-VP2
$5,069.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 1
These accessories are required to properly setup/install this product.
$179.99
Only 5 In-Stock
Optional Accessories 11
$19.25
Factory-Direct
$191.00
Factory-Direct
$2,299.00
Backordered
$219.00
Factory-Direct
$399.00
In-Stock
$1,763.00
Factory-Direct
Learn More
Subscribe to Save
Increase kit quantity to receive better savings per kit.
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quantity
$299.00
Only 3 In-Stock

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

35

Tank Size

120

Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Value Plus Package


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

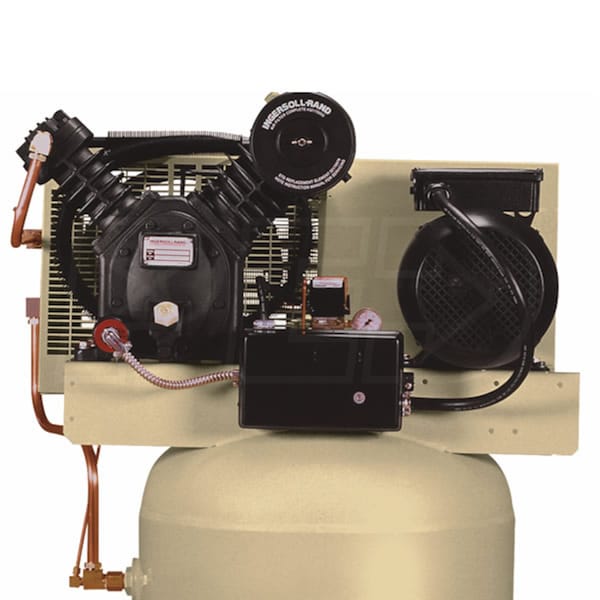

  • Durable Cast Iron Design
  • Provides 100% duty operation
  • Precision Engineered Components
  • Deliver maximum performance & reliability
  • Individually Cast Cylinders & Overhung Crankshaft
  • One-piece connecting rod for easy maintenance & service
  • High efficiency finger valves provide consistent air delivery
  • Value Pro Package

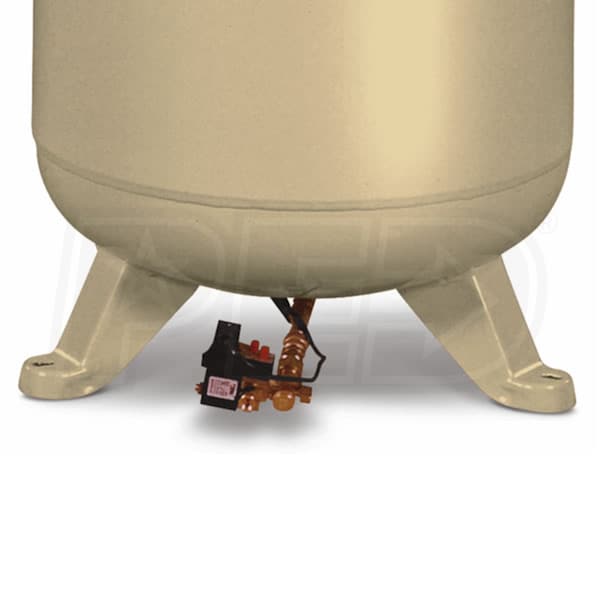

  • Electric drain keeps condensation to a minimum
  • Air cooled aftercooler extends pump life
  • 175 PSIG Maximum Operating Pressure
  • Ideal for applications requiring high air capacity & pressure
  • 1-Year Warranty (Unit Ships Dry)
  • 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
  • Mounted Motor Starter Included
  • No need to purchase an additional starter
  • Vibration Isolators Sold Separately
  • IR Installation Kit also includes foundation bolts & hose
  • Extends tank warranty to 5 years when added at time of purchase
  • Ingersoll Rand Reciprocating Compressors Ship Dry
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2545K10-VP2
specs product image PID-9369
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
32.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Overview
Product Category
Air Compressor - Stationary
Weight
1104 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
46 Inches
Product Height
83 Inches
Power Type
Electric
UPC
654955798521
Additional Model Numbers

2545K10VP-200, 2545K10-VP2

Reviews

(7)
Ingersoll Rand 2545K10-VP2 Reviews & Ratings
Customer Photos and Videos
review image 1
Verified Buyer
Verified Buyer
Purrs Like A Kitten
By James B.
California
Purchased 04/03/2024 |
Review Posted 04/30/2024
We love this compressor, purrs like a kitten, had to swap out the auto shutoff with a 125 psi, this shuts off at 175 psi and is not adjustable, was 30 bucks for the part was super easy to swap.
James B. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
None
Verified Buyer
Verified Buyer
Good Product
By Taylor M.
Litchfield Park, Arizona
Purchased 10/25/2017 |
Review Posted 11/24/2017
Great product. First paid with echeck, but they wanted to wait to ship it so I had to cancel and then pay with credit card. I think they still waited to ship it, but it got here mostly quick and now my plant is up and running again. Great value.
Taylor M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
The Good And The Not-So Good
By Chris G.
Rancho Cordova, California
Purchased 12/07/2015 |
Review Posted 03/14/2017
For the most part, I love this compressor. I bought it just over a year ago and it has been a work horse for me.

As I've seen in other reviews, there does seem to be a little lag in the delivery time from IR but 1 day seems like an eternity when your production is cut because of a lack of working equipment. The other bad thing is the tube from the Compressor head to the after-cooler was bent and damaged in shipping. As I thought this was only cosmetic and I needed to get up and running, I straightened it and got on with my life.

Here we are, 14 months from the date I received it, and the tube has failed at one end. This is due to the stress that was created when it was bent in shipping then bent back by me. The part is an unbelievable $85 locally and as I need the compressor and can't seem to find this part online I have to do it.

IR really needs to firm up their packaging at soft parts like the copper lines, it's a liability.
Chris G. Recommends This
Was this review helpful?
Expert Response
I'm sorry you had a couple issues with your purchase. We say that this unit will ship from IR in 7 to 14 business days (that's Monday thru Friday, excluding holidays). You chose to send us a check which, as we explain on our Pay By Check page starts the countdown once we receive your check and it clears.

The check delay pushed your ship date into the Christmas holiday, when many manufacturers shut down for the week between Christmas & New Year's. We updated you about that, and emailed you with the tracking information once the IR folks returned.

There is a very short window to report shipping damage; typically about 10 days. That's why our invoices ask our customers to check and report any damage as soon as possible. Unfortunately that window has closed.

We appreciate your business, and apologize for any inconvenience.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
5/5
icon-review-marker
Quality
3/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Features, Reliable, High Quality, I'd Buy It Again
Cons:
Packaging, Durability
Verified Buyer
Verified Buyer
Wrong Product Shipped & Super Poor Shipping
By Drew P.
Las Vegas, Nevada
Purchased 04/11/2016 |
Review Posted 05/09/2016
review 4 image 1
Ordered compressor due to an urgent need as our old compressor failed. Waited approximately 2-3 weeks for new compressor to arrive. When it did finally arrive it had shipping damage to the main copper fill line. Called to report damage. After having to take several more photos of all the serial numbers on the unit, I was informed that not only did i have shipping damage, but they had shipped me the wrong unit.

When I asked exactly what was wrong with the unit they would not tell me, only to have them ask me if i was happy with the unit and wanted to keep it. As it was damaged that answer was no, but also since the said something else was wrong, why would I want to keep it.

Unit was re-prepped for shipment and sent back.

About a week later the second unit arrived and it was shipment damaged in the same copper tube as the first unit only in a different place.

As I inspected the unit further.......looking for why they said they sent the wrong item I discovered that the entire cooling condenser assembly was left off the first unit. Why could they not of said that in the first place instead of asking me if I wanted to keep the unit? Seems a bit deceptive at this point.

We have now been down over a month. So this time they just sent out the bad part and we installed it ourselves to help save more down time.

There was no offer of a discount for all the time and trouble spent on getting the correct and good unit to arrive. Not to mention the month of production down time all this lack of quality control and poor shipping practice called.
Drew P. Does Not Recommend This
Was this review helpful?
Expert Response
Our website says this unit ships from Ingersoll Rand in 7 to 14 business days (Monday thru Friday, excluding holidays). You placed your original order on 4/11, and the compressor shipped on 4/14, the 3rd business day after you placed your order- faster than promised. Your compressor was delivered on 4/20, 7 business days after you placed your order.

The confirmation email we sent to you, and our Return Policy ask that customers "Do not sign for damaged products. If your product arrives damaged, please (a) REFUSE DELIVERY and (b) Call Us Immediately so we can process the appropriate claims and coordinate an exchange for you." This is because shipping damage isn't part of the Factory Warranty on the unit, and we want to get a replacement sent out to you as soon as possible.

Ingersoll Rand overnighted the part you needed to you at their expense, even though they could have insisted on your filing a damage claim with Conway. I understand your frustration, but Ingersoll Rand has done what they could to help in the circumstances.

We appreciate your business, and apologize for any inconvenience.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
4/5
icon-review-marker
Quality
1/5
icon-review-marker
Value
1/5
icon-review-marker
Cons:
Low Quality, Packaging
Verified Buyer
Verified Buyer
Great installation kit
By Chuck
California
Purchased 04/22/2013 |
Review Posted 05/14/2013
Great kit, I would recommend it.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
On the right foot
By Chuck
California
Purchased 04/22/2013 |
Review Posted 05/14/2013
A very convenient kit to get started out on the right foot with preventative maintainance.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Specification Update
By Chuck
California
Purchased 04/22/2013 |
Review Posted 05/14/2013
We just went on-line today (5/14/13) with our new IR compressor and are very happy with it so far.

However, we do have one bone to pick with Air Compressors Direct. In the features listed for the Model # 2545K10-VP (Value Plus Package) we ordered, Air Compressors Direct lists that this model has " Low Oil Shut-off: Yes " and the unit came from the IR factory without a low oil level switch. Air Compressors Direct needs to correct their website to stop misleading their customers. We looked on the IR website and only the "Premium Package" compressors come with a Low Oil Level switch.

Besides that oversight we are glad we bought this IR compressor from Air Compressors Direct.
Was this review helpful?
Expert Response
We have changed the Specs for this unit so that it matches the 230V & 460V listings for this part number. Back in September we did an item by item review with our Ingersoll Rand sales rep, and we all missed this- please accept our apologies for the oversight and any disappointment you've experienced.

We appreciate your business and thank you for letting us know!
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
