Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Value Plus Package
Model:
2545K10VP-230
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
11
Model: 32321002
$19.25
Factory-Direct
$41.00
Factory-Direct
$2,299.00
Only 2 In-Stock
Model: FA75IH
$306.99
Only 5 In-Stock
$306.99
Only 2 In-Stock
Model: R37451-600
$219.00
Factory-Direct
Model: 38335410
$399.00
In-Stock
$74.99
Factory-Direct
Model: 22890214
$1,763.00
Factory-Direct
Model: F28070
$489.99
Factory-Direct
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$299.00
Only 3 In-Stock
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
3-Phase
CFM
35
Tank Size
120

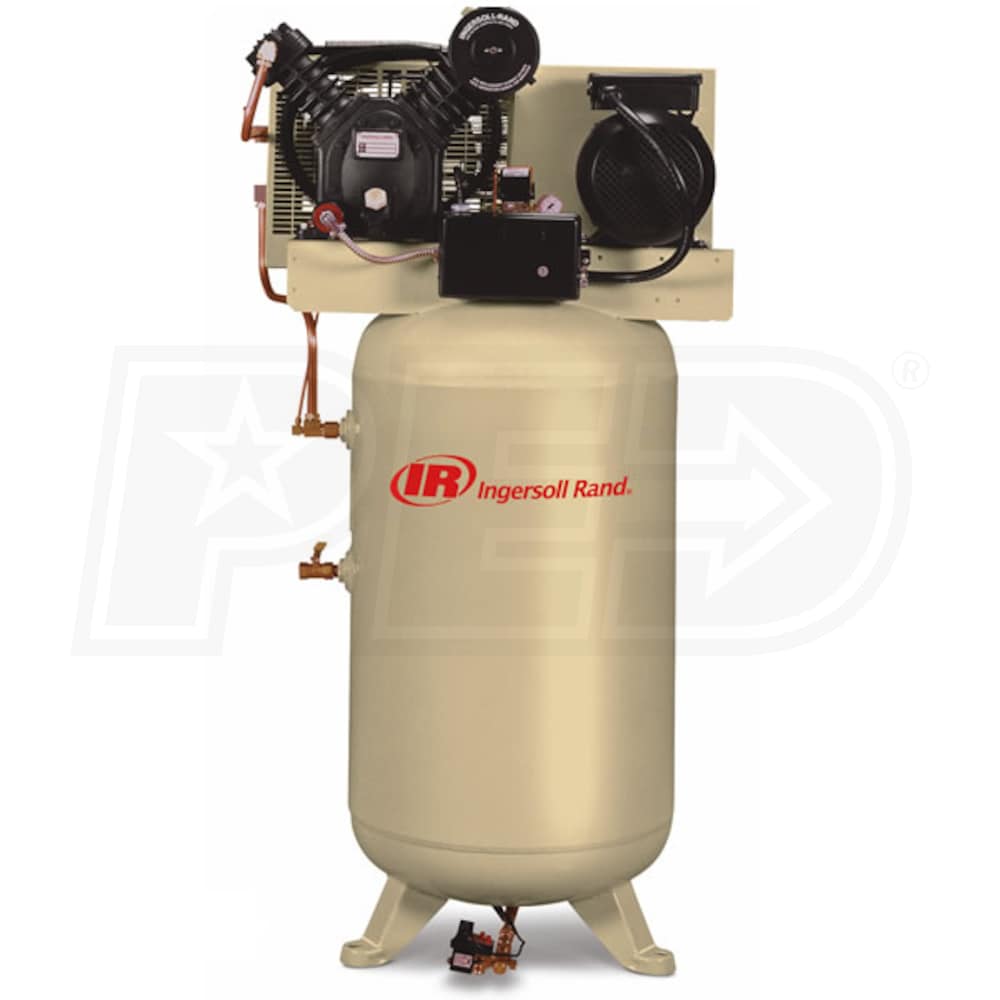

Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Value Plus Package
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Durable Cast Iron Design
- Provides 100% duty operation
- Precision Engineered Components
- Deliver maximum performance & reliability

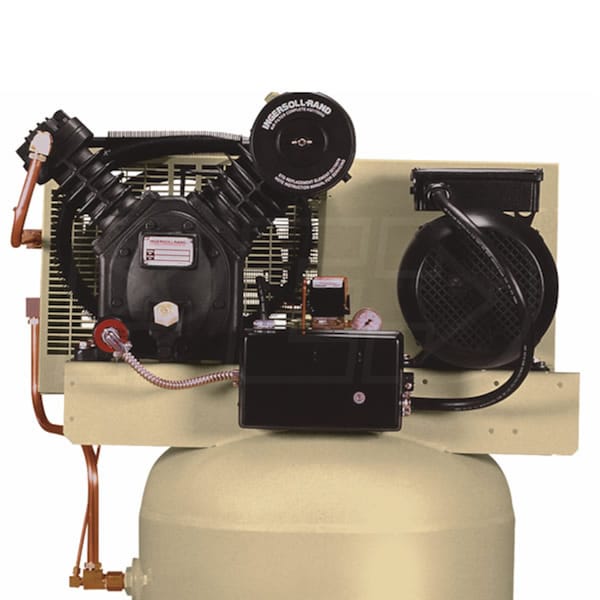

- Individually Cast Cylinders & Overhung Crankshaft
- One-piece connecting rod for easy maintenance & service
- High efficiency finger valves provide consistent air delivery
- Value Plus Package

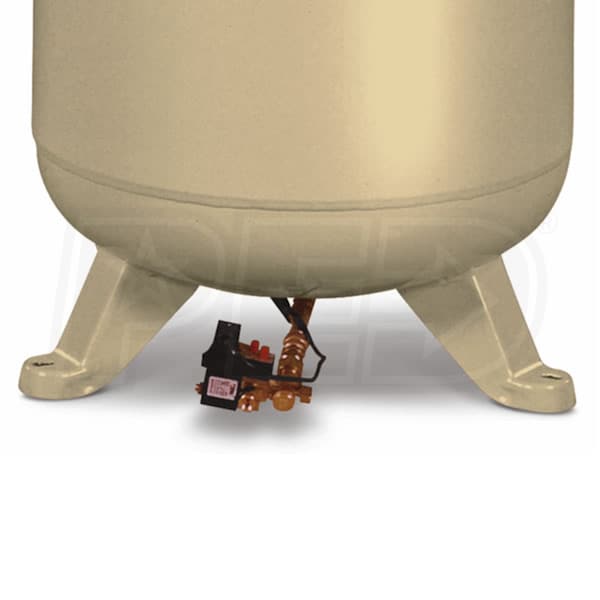

- Electric drain keeps condensation to a minimum
- Air cooled aftercooler extends pump life
- 175 PSIG Maximum Operating Pressure
- Ideal for applications requiring high air capacity & pressure
- 1-Year Warranty (Unit Ships Dry)
- 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
- Mounted Motor Starter Included
- No need to purchase an additional starter
- Vibration Isolators Sold Separately
- IR Installation Kit also includes foundation bolts & hose
- Extends tank warranty to 5 years when added at time of purchase
- Ingersoll Rand Reciprocating Compressors Ship Dry
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
2545K10VP-230
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
28
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Overview
Product Category
Air Compressor - Stationary
Weight
1104 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
46 Inches
Product Height
83 Inches
Power Type
Electric
UPC
654955798521
Reviews
(2)
Ingersoll Rand 2545K10VP-230 Reviews & Ratings
Great Air Compressor
By Robert R.
Worland, Wyoming
Purchased 07/07/2018 |
Review Posted 08/22/2018
Our only complaint is you can’t get a technical person to answer a question. We just keep getting passed around to different # or nobody answers the phone. Wouldn’t want to have a major problem! No one to help?!?!?!!
Robert R. Recommends This
Was this review helpful?
Expert Response
We are very sorry to hear you are experiencing problems with reaching a technical person at Ingersoll Rand. I was able to search for Ingersoll Rands Authorized Distributors and found a service center that can also assist with technical questions.
Ingersoll Rand Rocky Mountain District – Casper Office
7421 6 WN Road
Casper
WY ,82604 USA
Casper Customer Center
Please accept our apologies for your disappointment and inconvenience!
Ingersoll Rand Rocky Mountain District – Casper Office
7421 6 WN Road
Casper
WY ,82604 USA
Casper Customer Center
Please accept our apologies for your disappointment and inconvenience!
Dale V.
Power Equipment Expert
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, High Quality, I'd Buy It Again
Cons:
Heavy, Need lots of help to move
The Compressor Meets All Our Expectations
By Allen C.
Marietta, Georgia
Purchased 11/11/2016 |
Review Posted 01/03/2017
We have a shop that uses mostly air tools in our manufacturing process. Occasionally, we have a need to perform air-arc cutting.
The new compressor supplies all the air we need for both operations simultaneously, without a drop in working pressure or loss of CFM.
The new compressor supplies all the air we need for both operations simultaneously, without a drop in working pressure or loss of CFM.
Allen C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
3/5
Pros:
Durable, Exceeded Expectations, High Quality
