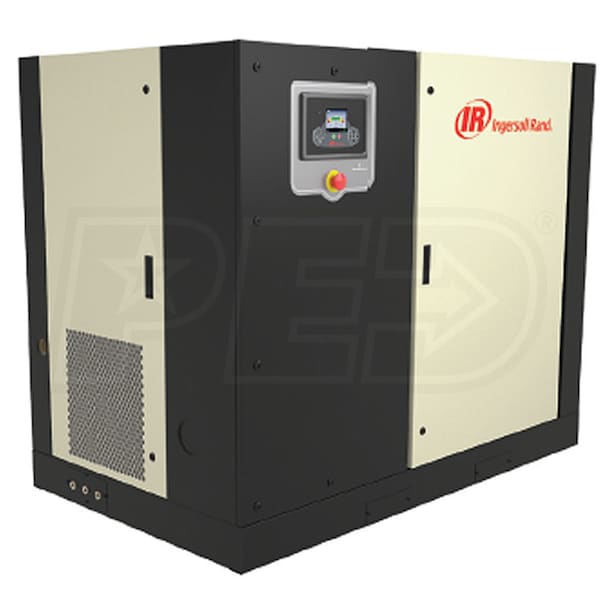

Ingersoll Rand Next Generation R-Series 50-HP Rotary Compressor w/ Total Air System Dryer (200V 3-Phase 118PSI)
Model:
RS37I-A118-TAS.200V3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208 Volt AC
Phase
3-Phase
CFM
220
Tank Size
0
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Next Generation R-Series 50-HP Rotary Screw Air Compressor
- Boosts productivity, lowers operating expenses and extends equipment life
- Total Air System (TAS) Package
- Includes space-saving, ready-to-run, pre-mounted dryer and filters for cleaner, dryer air
- State Of The Art Airend
- Delivers as much as 18% improved efficiency and best-in-class airflow capacity
- Provides up to 220 CFM at 118 PSI with 100% duty cycle
- Programmable Xe-Series Color Controller With Remote Connectivity
- Intuitive, high-resolution color display offers remote access with any common, current web browser
- Built-in optimization sequencer for up to four units; programmable start/stop operation & remote connectivity
- PAC™ Protection
- Scans & adjusts operation in response to filtration changes; real-time maintenance indicators & shutdown protection
- Free-Floating Cooling System Rated For 115°F (46°C) Ambient
- Optimized, energy-efficient & low-noise centrifugal blower with electronic no-loss condensate drain
- V-Shield™ Technology
- Stainless steel air piping & metal-flex hoses have leak-free connections with superior elastometric seals
- High-efficiency TEFC IP55 Motor
- Class F insulation with B rise, Star-delta reduced voltage starter, & NEMA 4/IP55 electronics provide reliable service
- Noise attenuation enclosure & vibration isolation pads reduce workplace noise
- Simple single air inlet & single air outlet design incorporates easily into varied applications
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RS37I-A118-TAS.200V3
General Information
Product Category
Air Compressor - Stationary
Engine
HP
50
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
220
CFM Rated @
118 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
118 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
2646 Pounds
Commercial Warranty
1 Year
Product Length
76 Inches
Product Width
42 Inches
Product Height
60 Inches
Power Type
Electric
