Ingersoll Rand 5-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)
Model:
SS5L5
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
1
These accessories are required to properly setup/install this product.
Model: 47853635002-R
$119.99
Factory-Direct
Optional Accessories
12
$191.00
Factory-Direct
$2,449.00
Only 1 In-Stock
Model: DXCM024-0400
$209.00
Factory-Direct
Model: DXCM024-0434
$153.99
Only 1 In-Stock
Model: FA40IH
$231.99
In-Stock
$235.00
Only 4 In-Stock
$249.00
Factory-Direct
Model: 38335402
$395.00
Factory-Direct
$1,379.00
Factory-Direct
$44.00
Factory-Direct
Model: 22890214
$1,763.00
Factory-Direct
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$192.00
Factory-Direct
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
18.1
Tank Size
60

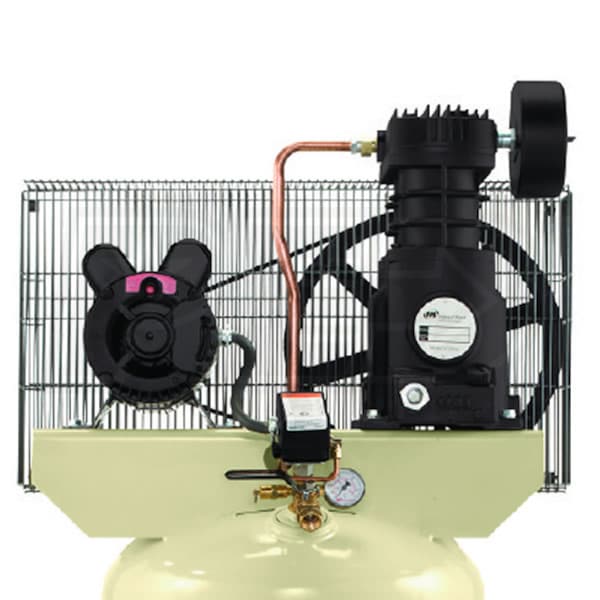

- 100% Cast-Iron Cylinders and Frame
- Designed for the toughest 100% continuous duty applications
- Manual Thermal Overload Protection
- No magnetic starter needed and protects motor from damage
- Oil Sight Gauge
- Easily check compressors pump oil level
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- Fully Tested
- All units are prewired and thoroughly tested prior to shipment
- American Pride
- Proudly built in the U.S.A.
- 1-Year Warranty (Unit Ships Dry)
- 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
SS5L5
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
21.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
310 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20 Inches
Product Width
30 Inches
Product Height
71 Inches
Power Type
Electric
UPC
678384031721
Reviews
(14)
Ingersoll Rand SS5L5 Reviews & Ratings
Customer Rating
3.50
(13 Ratings)
5
(5)
(5)4(3)
(3)3(0)
(0)2(2)
(2)1(3)
(3)
Ingersoll Rand has been building reliable air compressors for 100 years and this built in the USA unit is no exception.
A 100% duty cycle meets the needs of both professionals and dedicated do-it-yourselfers. The cast iron cylinders and frame are precision engineered to Ingersoll Rand's exacting standards so your investment works for you year after year.
The SS5L5 unit puts out 18.1 CFM at 90 PSI, so it will run a wide variety of pro-grade tools like air hammers and metal cutters.
Don't forget to grab a start-up kit for this compressor. Since Ingersoll Rand piston compressors ship dry you will need their All-Select lubricant to get this up and running. With this add-on, Ingersoll will extend your pump warranty by an additional year.
A 100% duty cycle meets the needs of both professionals and dedicated do-it-yourselfers. The cast iron cylinders and frame are precision engineered to Ingersoll Rand's exacting standards so your investment works for you year after year.
The SS5L5 unit puts out 18.1 CFM at 90 PSI, so it will run a wide variety of pro-grade tools like air hammers and metal cutters.
Don't forget to grab a start-up kit for this compressor. Since Ingersoll Rand piston compressors ship dry you will need their All-Select lubricant to get this up and running. With this add-on, Ingersoll will extend your pump warranty by an additional year.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Good Unit But Not Perfect
By Keith J.
Grand Island, New York
Review Posted 04/19/2022
I bought this because of the air volume at 125 PSI. Yes it does make a lot of air and for a single guy in the shop using air tools it's the best bang for your buck IMO BUT, I have had to replace the head gasket. It was under warranty and Ingersoll rand service came to my home to fix it. The tech said it's a common problem - the gasket blows out between the cylinders. To reduce the chance of it happening again, he prick punched 5 marks at the narrow point between the cylinders to help keep the gasket from moving. NO problems since with the head gasket. After about 10 years of use the valve assembly crapped out. Replaced then and no problems since. Finally, after about 13 years of use, the pressure switch quit working. It's not exactly what I had hoped for but it's still a good value. Even my 15HP commercial Qunicy compressor at work has needed a rebuild and I thought those were the very best you could buy.
Keith J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
3/5
5/5
5/5
Pros:
Id Buy It Again, Features, Price
Delivery
By George F.
Goodview, Virginia
Purchased 01/16/2019 |
Review Posted 03/28/2019
I've only had this Compressor for a short time, But it's doing a great job, builds pressure fast, no leaks, and for what it is pretty quiet.
George F. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
2/5
Pros:
Easy To Use, Quiet, Fast
Cons:
Packaging
Great Air Compressor
By Brenda S.
Atlanta, Georgia
Purchased 07/29/2014 |
Review Posted 08/20/2014
Air Compressor's Direct has the best price and great service.
Brenda S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, Reliable, Features, Price
Unhappy
By Charles F.
Omaha, Nebraska
Review Posted 11/23/2013
When my unit was about 2 years old the pressure valve went to hell, now about 1 1/2 years later it's going bad again. Other than this problem the unit has worked well.
You would think they would come up with a better pressure valve with others having similar problems. The pressure valves aren't cheap. I bought my compressor at a chain store.
You would think they would come up with a better pressure valve with others having similar problems. The pressure valves aren't cheap. I bought my compressor at a chain store.
Charles F. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
4/5
4/5
Pros:
Easy To Use
Cons:
Durability
Fantastic
By John
Illinois
Review Posted 11/11/2013
Bought mine 4 years ago from a chain store. I got it because of the high CFM at 90 psi. I didn't want to spend more money for a two stage with less CFM.
Once the air in your tank is gone, CFM is everything. Works great for my bead blaster. I don't think anything is going to tax an air compressor more than a sand or bead blaster.
Once the air in your tank is gone, CFM is everything. Works great for my bead blaster. I don't think anything is going to tax an air compressor more than a sand or bead blaster.
John Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Exceeded Expectations, Fast, Reliable, I'd Buy It Again
Poor Quality
By Eric H.
Coloma, Michigan
Review Posted 11/03/2013
I bought this compressor based on good reviews and the Ingersoll Rand name. The pump lasted 22 months of light residential use.
Now I look around and the reviews are terrible. Many problems with the pumps. Mine is still under warranty and Ingersoll Rand is supposed to be sending me a new pump. Wonder how long this one will last. I would not buy Ingersoll Rand again.
Now I look around and the reviews are terrible. Many problems with the pumps. Mine is still under warranty and Ingersoll Rand is supposed to be sending me a new pump. Wonder how long this one will last. I would not buy Ingersoll Rand again.
Eric H. Does Not Recommend This
Was this review helpful?
Rating Breakdown
1/5
1/5
1/5
1/5
Pros:
Features
Cons:
Low Quality
Great compressor
By Gerald B.
Kennerdell, Pennsylvania
Review Posted 09/23/2013
I opened a new auto repair shop and the compressor runs tools 8 hrs a day. Have had it 4 months and no complaints.
I feel it was a great purchase.
I feel it was a great purchase.
Gerald B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Easy To Use, Quiet, Reliable, I'd Buy It Again
By Jim
Wisconsin
Review Posted 09/22/2013
I bought it 3 years ago and because of work I did not get it wired up until last year. When I first turned it on, it did not run until I flipped the pressure switch several times.
I pumped up 6 lawn mower tires and recently tried to use an HVLP sprayer to paint a truck frame when the pump started making a loud knocking noise and tripped the breaker- and yes the oil level was fine.
The head gasket is blown out and Ingersoll said it is out of warranty. If you want a compressor to last more than 2 hours of run time do not buy an Ingersoll.
I pumped up 6 lawn mower tires and recently tried to use an HVLP sprayer to paint a truck frame when the pump started making a loud knocking noise and tripped the breaker- and yes the oil level was fine.
The head gasket is blown out and Ingersoll said it is out of warranty. If you want a compressor to last more than 2 hours of run time do not buy an Ingersoll.
Jim Does Not Recommend This
Was this review helpful?
Expert Response
Factory Warranties start when the unit is delivered, not when you start using them. It is always in the customer's best interest to check out a new unit thoroughly right at the start to get the best service.
Letting a unit sit for years without being used can result in corrosion on the connectors and dry rot in the gaskets and o-rings.
Letting a unit sit for years without being used can result in corrosion on the connectors and dry rot in the gaskets and o-rings.
Dale V.
Power Equipment Expert
Rating Breakdown
1/5
1/5
1/5
1/5
Cons:
Low Quality, Unreliable, Durability
Get another brand
By Paul C.
North Carolina
Review Posted 07/20/2013
I bought mine several years ago. It ran great for about 2 months and then I had to replace the pump, a year later a new pressure switch, next year another pressure switch, and now the pump is making noise again.
The pressure release valve also went bad after 2 years. I have had mine for only 4 years, and I am not happy with it at all. The only good thing on it is the motor.
The pressure release valve also went bad after 2 years. I have had mine for only 4 years, and I am not happy with it at all. The only good thing on it is the motor.
Paul C. Does Not Recommend This
Was this review helpful?
Expert Response
This unit has a 1 year Factory Warranty, so the initial repairs would have been covered as long as they were the result of a defect in materials or workmanship.
If the failure is from improper installation or not doing the recommended maintenance at the correct intervals, then the warranty would not cover the repair, and the problems will continue.
You may want to give the folks at Ingersoll Rand a call, toll free, at (800) 866-5457 for their advice on getting the best performance from your air compressor.
If the failure is from improper installation or not doing the recommended maintenance at the correct intervals, then the warranty would not cover the repair, and the problems will continue.
You may want to give the folks at Ingersoll Rand a call, toll free, at (800) 866-5457 for their advice on getting the best performance from your air compressor.
Dale V.
Power Equipment Expert
Rating Breakdown
3/5
1/5
1/5
1/5
Disappointed to say the least
By Allen
South Carolina
Review Posted 09/03/2012
For as long as I can remember Ingersoll Rand was the "good stuff". " You want high quality, you get Ingersoll Rand".
I ordered my SS5L5 3 years ago and paid a little extra for the start up kit that added a year to the 1 year warranty. It worked like a champ until the last couple weeks. Then the pump starts knocking and trips the breaker. I never ran it very hard or long and kept the oil and filter changed,but now the pump is shot.
I replaced a 20 year old Campbell Hausfield unit with this one and now wish I hadn't. This one was much more powerful, but 3 years- c'mon!
I haven't talked to anyone about a replacement pump yet but it's not gonna be cheap. I'm very disappointed and plan to relate my experience to all the guys I work with at Michelin Tire (37 years).
No more Ingersoll Rand for me.
I ordered my SS5L5 3 years ago and paid a little extra for the start up kit that added a year to the 1 year warranty. It worked like a champ until the last couple weeks. Then the pump starts knocking and trips the breaker. I never ran it very hard or long and kept the oil and filter changed,but now the pump is shot.
I replaced a 20 year old Campbell Hausfield unit with this one and now wish I hadn't. This one was much more powerful, but 3 years- c'mon!
I haven't talked to anyone about a replacement pump yet but it's not gonna be cheap. I'm very disappointed and plan to relate my experience to all the guys I work with at Michelin Tire (37 years).
No more Ingersoll Rand for me.
Was this review helpful?
Rating Breakdown
2/5
2/5
2/5
2/5
Product Q&A
(2)
Product Questions
Answered by Melissa, the Air Compressor Expert
How many amps does the SS5L5 pull?
Mike Work
from Texas
October 11, 2016
Hi Steve, looking at the IR SS5L5 single stage and the Quincy 2V41C60VC two stage. Wanting to run a plasma cutter and a sand blaster and not sure which would be better. The IR produces more CFM but the Quincy has higher maximum PSI. Also want to run various air tools in my shop. What are the pros and cons for single vs two stage? Which would you suggest for my needs? Thanks
Steve Wang
from Oklahoma
December 30, 2014
