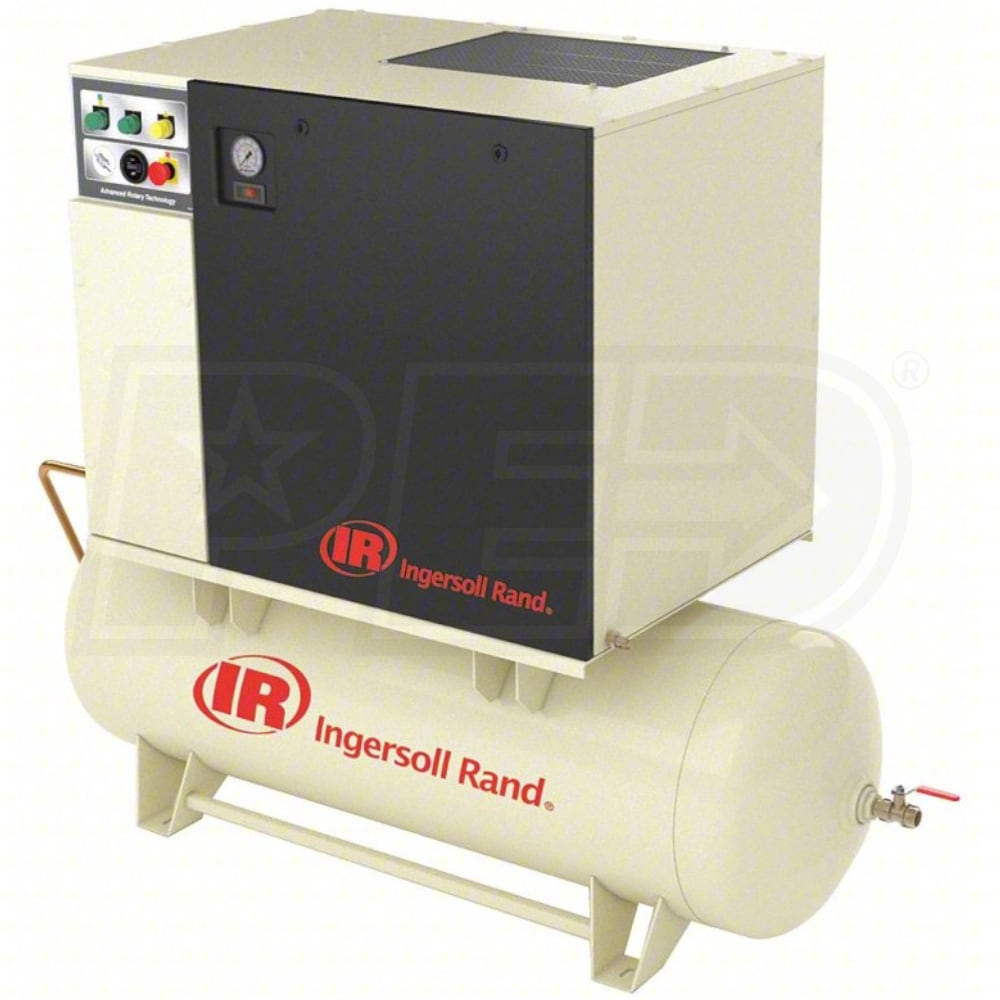

Ingersoll Rand 7.5-HP 80-Gallon Rotary Screw Air Compressor (230V 1-Phase 125PSI)
Model:
UP6-7.5-125.230-1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
1
These accessories are required to properly setup/install this product.
Model: 23352131
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$181.99
Factory-Direct
Optional Accessories
10
$816.00
Factory-Direct
Model: 24121212
$263.00
Factory-Direct
$692.00
Factory-Direct
Model: 38335410
$399.00
In-Stock
Model: 22890214
$1,763.00
Factory-Direct
Model: M1406-5
$22.99
Factory-Direct
Model: F28070
$472.49
Factory-Direct
Model: TRI-GD-3046RS-GL
$95.00
Factory-Direct
Model: TRI-GD-4046RS-GL
$108.00
Factory-Direct
$3,099.00
Only 1 In-Stock
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
28
Tank Size
80
Ingersoll Rand 7.5-HP 80-Gallon Rotary Screw Air Compressor (230V 1-Phase 125PSI)
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Energy Efficient
- More air for less horsepower reducing yearly energy cost
- Smart Energy Controls
- Eliminate running unloaded by cycling the compressor on/off
- Whisper Quiet Operation
- Allows for installation closer to point-of-use
- Sound levels as low as 68dBa
- Compact Footprint Design
- Frees up valuable floor space and reduces install costs
- Fewer Connections
- Eliminates leaks and pressures drops maximizing reliability
- Simple Diagnostics
- Displays operating status and run hours reducing downtime
- Poly-V Belt Drive
- Drive system eliminates belt stretch and increases air output
- High-Efficiency Filter
- Clean air quality to run tools and equipment long term
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
UP6-7.5-125.230-1
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
28
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
925 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
UPC
678384030953
Reviews
(3)
Ingersoll Rand UP6-7.5-125.230-1 Reviews & Ratings
AIRLESS
By Billy H.
Louisiana
Review Posted 06/13/2022
Received unit stepped up to rotary because this unit had to be inside shop and didn't want all of the noise a regular compressor makes. Hooked unit up and ran, and was impressed with how quiet unit is even with access panel off. Unit ran for about 15 minutes but does not make any air pressure. After checking all the obvious things called Ingersoll Rand. Had to wait for several people to call back before we got to someone that could help us. Ran us through the diagnosis and found a sol valve that is not working. Great I thought, wrong! Part is not available. It's been 30 days still no compressor. I asked for a replacement compressor, they said that was not an option! Seems like a company this big would have a little bit better support for their products. In fairness to Air Compressor Direct, I did not contact them because the compressor never worked from the start and figured it was a manufacturer problem.
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We appreciate you taking the time to provide us with your feedback, and we can certainly understand your aggravation. We will forward your review to the manufacturer, so they are aware of the situation. We have followed up with the IR on this issue. They informed us this is a warranty issue and they are offering the part, however, it was back ordered. Unless the MFG will provide a new unit or credit us back for a defective unit they are going to have to proceed through the warranty process. Please let us know if there is anything else we can assist you with.
We do appreciate your business and apologize for any inconvenience.
We do appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Rating Breakdown
5/5
2/5
1/5
1/5
Pros:
Easy To Use
Cons:
Expensive
Broken At 211 Hours Of Use
By David A.
Canyon Country, California
Purchased 08/28/2014 |
Review Posted 12/09/2016
Worked amazing till it shut off one day, now I'm jumping through hoops trying to find the parts to repair it and Ingersoll local service center wants to charge me almost $1000 to come replace an electrical component that plugs in and has a few wires attached.
I ended up finding the part through local electrical parts distributor for 135% cheaper and fixed it myself. Lets see how long it lasts now.
I ended up finding the part through local electrical parts distributor for 135% cheaper and fixed it myself. Lets see how long it lasts now.
David A. Recommends This
Was this review helpful?
Rating Breakdown
3/5
3/5
5/5
3/5
Pros:
Easy To Use, Quiet, Fast
Cons:
Unreliable, Expensive
Huge upgrade over traditional compressor and so quiet!
By Michael Pierson
Phoenix, Arizona
Purchased 08/08/2013 |
Review Posted 11/04/2013
It's awesome! I would recommend to all.
Michael Pierson Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Easy To Use, Price, Reliable
