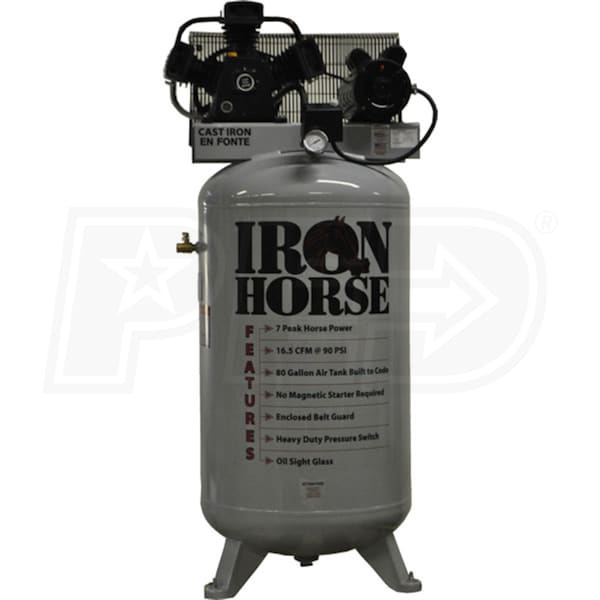

Iron Horse 5-HP 80-Gallon Single Stage Air Compressor (208/230V 1-Phase)
Model:
IHD7180V1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
16
Tank Size
80

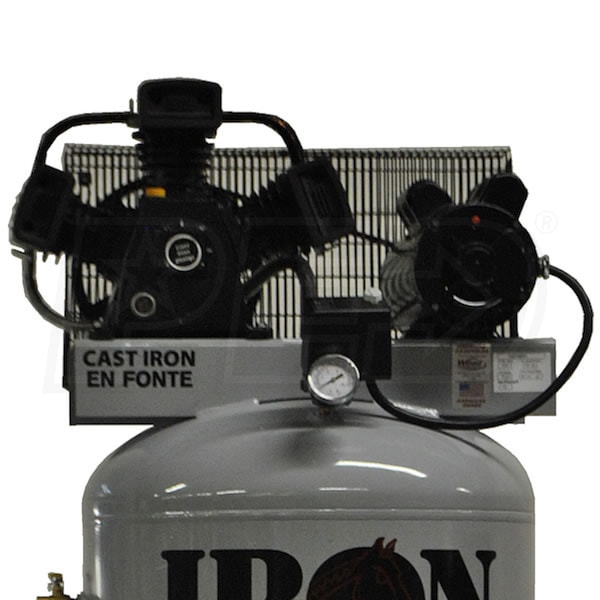

- Rugged Compressor With 3 Cast Iron Cylinders
- "V" design minimizes vibration, improves cooling, extends life
- High efficiency reed valves provide maximum performance
- Individual & Removable Cylinders
- Smoother & cooler operation for optimum durability
- No Magnetic Motor Starter Needed
- Improved performance with less expense
- Heavy-Duty Pressure Switch With On/Off Control
- 50% duty cycle delivers 16 CFM at 90 PSI; 150 PSI maximum
- 5 HP Run, 7 HP (Peak) 208-230 Volt, Single Phase Electric Motor
- Protected against overheating; requires 22.5 amp circuit
- Easy-View Oil Sight Gauge
- Lets you check oil level at a glance for easy maintenance
- Efficient Heat Removal From Fly Wheel
- Cooler running & longer compressor life
- Sturdy Metal Belt Guard
- Protects both the belt & the operator
- 80 Gallon ASME Registered Tank
- Rated to 150 PSI; sturdy 1/2" ball valve air outlet included
- CSA certified for increased assurance of quality and safety
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
IHD7180V1
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
330 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
36 Inches
Product Width
23.5 Inches
Product Height
68 Inches
Power Type
Electric
UPC
020791500206
