Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.5
Tank Size
20
- Space Saving Portable Compressor
- Rugged vertical 20 gallon tank is easier to move & store
- Cast Iron Pump Cylinders
- Durable and dependable
- Oil Lubricated Pump
- Tough enough for professional use
- 1.5 Running Horsepower Electric Motor
- Thermally protected for longer life
- Runs on 115 volt power
- CSA/US approved for your safety
- Easy Access Front Control Panel
- Comes with regulator, gauge, and quick coupler connections
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
IHVP1520L
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
Amp Draw
11.9
Engine
HP
1.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Product Category
Air Compressor - Portable
Weight
144.5 Pounds
Certification
CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
21 Inches
Product Width
21 Inches
Product Height
41 Inches
Power Type
Electric
UPC
777589004810
Reviews
(4)
Iron Horse IHVP1520L Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We've all heard that Rome wasn't built in a day, but then again the R...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

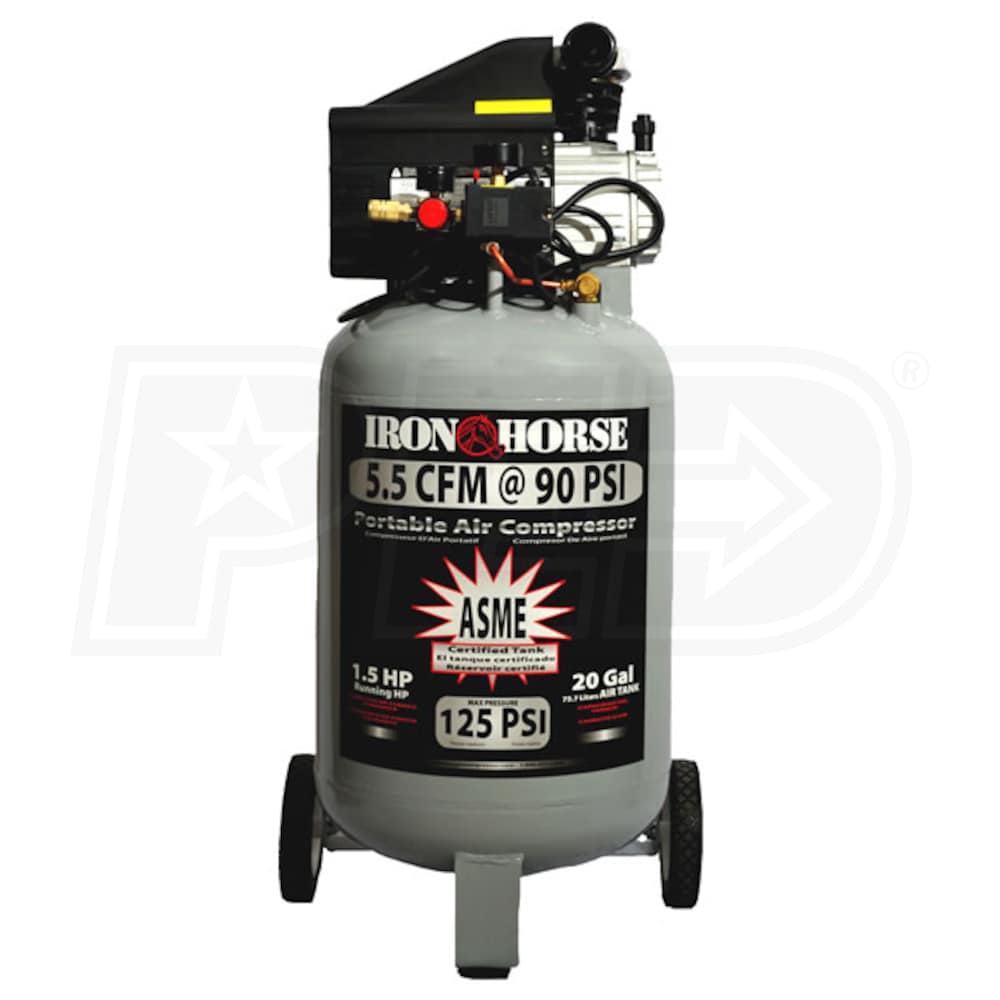

Iron Horse 1.5-HP 20-Gallon (Direct Drive) Cast-Iron Air Compressor
