JobSmart TA-25100VB
JobSmart TA-25100VB
Hover to zoom
1 Of 5



Product Discontinued Product Discontinued

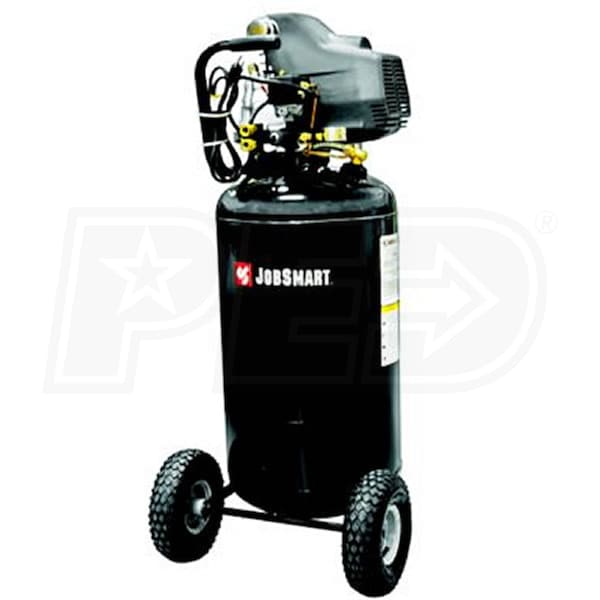

JobSmart 1.5-HP 26-Gallon Air Compressor
JobSmart 1.5-HP 26-Gallon Air Compressor
Model: TA-25100VB
Features
Specifications
Reviews
How-To Articles
Share

Features

  • Oil Lubricated Portable Air Compressor
  • Runs cooler & lasts longer than oil-free units
  • 5 CFM At 40 PSI; 4 CFM At 90 PSI
  • Inflate tires, run brad nailers, air ratchets, etc.
  • 26-Gallon ASME Tank & Safety Valve
  • Plenty of reserve for hobbyists & craftspeople; 125 PSI maximum
  • Cast Iron Cylinder
  • Provides sturdy & reliable performance
  • Central Control Panel
  • Dual quick connects let you run 2 tools at once
  • Tank & outlet pressure gauges are easy to monitor
  • Non-Flat Hard Rubber Tires
  • Heavy duty tires roll easily from task to task
  • Vertical Space-Saving Design
  • Lets you transport & store the compressor efficiently
  • 1 Year Factory Warranty
  • Protects your investment

Specifications

TA-25100VB
specs product image PID-15269
Motor
Voltage
120 Volt AC
Phase
1-Phase
Engine
HP
1.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
26 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Weight
106 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
20 Inches
Product Height
48.3 Inches
Power Type
Electric
UPC
749394017989
