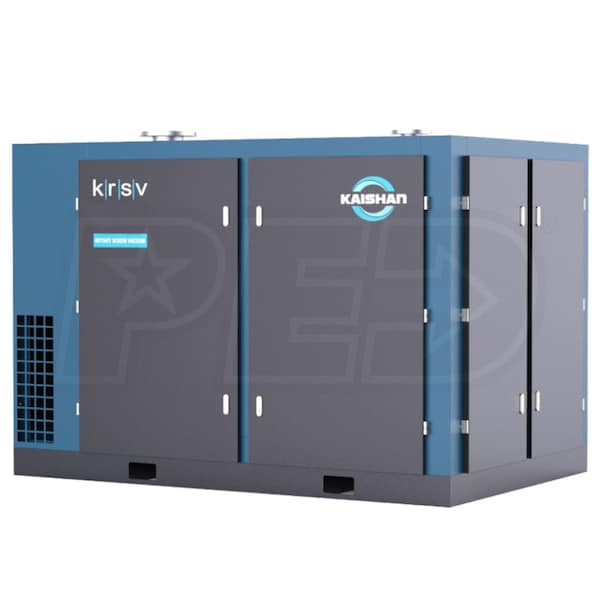

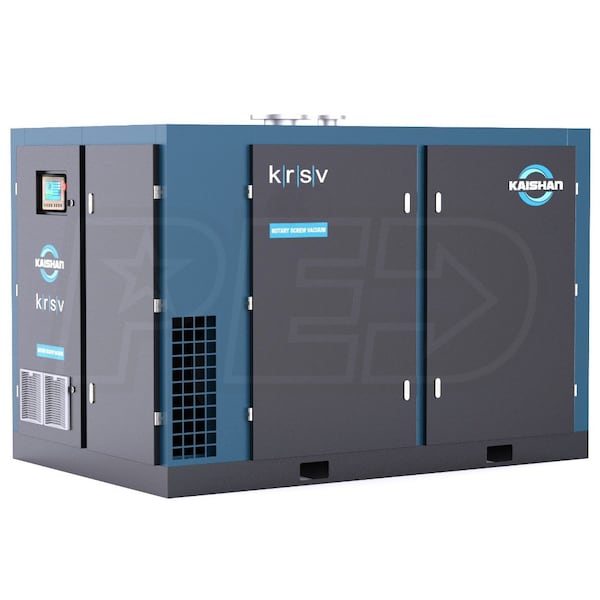

Kaishan 10-HP Tankless Variable Speed Rotary Screw Vacuum Pump (460V 3-Phase)
Model:
KRSV-010AV4S8U
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
286
Tank Size
0
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- KRSV Industrial Rotary Screw Variable Speed Vacuum Pump
- Highly reliable, world-class efficiency, and big cost savings
- Ideal for medical, woodworking, food/beverage, printing & many more applications
- Rotary Screw Positive Displacement Vacuum Pump Technology
- Creates vacuum by drawing air or gas from the chamber
- Discharging back into the atmosphere through intermeshing rotary screws
- Continuous process flow moves gas at a constant speed for stability
- High-Efficiency TEFC (IP54) Electric Direct Drive Motor w/ Variable Speed
- Long operating life, lower power, and major cost savings
- Operates efficiently by matching flow to demand while maintaining pressure control
- Direct-drive vacuum motor couples directly to vacuum driveshaft powers vacuum airend
- Performance Data - 15 to 29.9 Inlet Pressure HgV (See Flow Chart)
- 15 PSI, 2640 Max RPM, 184 CFM, 8.2 Input Power KW
- 27 PSI, 3325 Max RPM, 282 CFM, 7.4 Input Power KW
- 29.9 PSI, 3580 Max RPM, 86 CFM, 7.3 Input Power KW

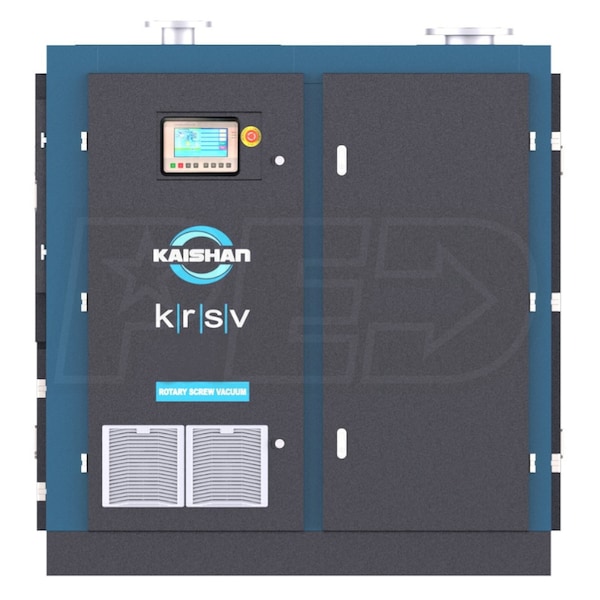

- MAM-6090 Digital Smart Control Panel
- Protects in the event of a fault and alerts with built-in alarms
- Large display screen with icon touch display monitors & controls key functions
- Premium SKYv Series Air End & Variable Discharge Port
- Asymmetric 5/6 rotor profile and precision ground rotor machining
- 100% SKF bearing for longer life expectancy averaging 100,000 hours
- Achieves maximum efficiency by adjusting internal compression ratio
- Heavy-Duty Low Sound Enclosure
- Ensures quiet operation, easy access for serviceability, and advanced electricals
- 316 stainless steel control tubing and brass fittings or longer life & less downtime
- Reliable System Operation
- High-efficiency intake filter captures dust without impeding airflow
- Laminar flow inlet valve for minimum pressure drop and increased output
- Cast aluminum oil cooler increases life expectancy in harsh environments
- 3-Stage Tangential Oil Separation
- Residual oil carryover limited to 3 PPM
- Lower particle contact results in lower pressure drop and energy
- Optimized mechanical pre-separation, reduced direct oil impingement on element
- Limited Manufacturer Warranty
- Air End, Main Motor, Motor, Major Components - 5 Years & Entire Package - 1 Year
Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
KRSV-010AV4S8U
Engine
HP
10
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Amp Draw
16.2
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
286
CFM Rated @
27.7 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
29.9 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
2-1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
2138 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
66 Inches
Product Width
42 Inches
Product Height
44 Inches
Power Type
Electric
