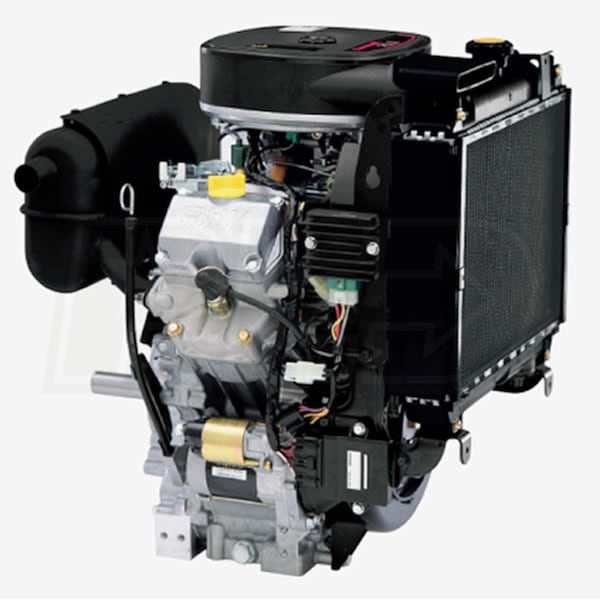

Kawasaki FD791D DFI 745cc 26HP Liquid-Cooled Electric Start Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft

Model:

FD791D-S00S

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kawasaki FD791D DFI 745cc 26HP Liquid-Cooled Electric Start Horizontal Engine, 1-1/8
Kawasaki FD791D DFI 745cc 26HP Liquid-Cooled Electric Start Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft
Model: FD791D-S00S
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Kawasaki FD791D-NS00S DFI 745cc 26HP Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft
  • Small space power from a digital fuel injected, liquid-cooled 90° V-Twin
  • For use on lawn tractors and scissor lifts, trenchers, and trash pumps
  • Overhead Valve (OHV) Technology & Mechanical Governor
  • For maximum power, quiet operation & ensures low emissions
  • Produces maximum 40.5 ft./lbs torque @ 2,800 RPM; 26 HP @ 3,600 RPM
  • Multi-Port Digital Fuel Injection
  • Precision-designed for power at the ready
  • High Pressure Electric Fuel Pump
  • Provides greater fuel efficiency and cleaner emissions
  • Pressurized Lubrication System
  • Cast-iron cylinder liner & chrome plated piston rings for increased longevity
  • Liquid Cooled Engine
  • High mount radiator & water temperature switch
  • Easy Choke Free Operation & Electronic Altitude Compensation
  • Takes out the guess work; eliminates need to choke and prime engine
  • Electronic Cold Operation Enrichment
  • Electronic ignition with spark advancement
  • 20-AMP Electric Bendix Starter
  • Magneto spark ignition for consistant ease in starting
  • Heavy Duty Canister Air Filter
  • Prevents dirt and debris from clogging essentials and causing decreased performance
  • Low Tone Muffler
  • Oil filter side mounted, provides quieter operation for more operator comfort
  • Note - Fuel-Tank Not Included
  • 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FD791D-S00S
specs product image PID-67483
Engine
Engine Series
Kawy FD
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
122 Lbs
CC
745 CCs
HP
26 HP
Max Torque
40.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.07 Inches
Stroke
3.07 Inches
Compression Ratio
9.0:1
Systems
Charging System
20 Amps
Starting System
12-Volt (No Key)
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-3/4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-3/4"
Overview
Weight
122 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers

FD791D-NS00S, FD791D-S00S
