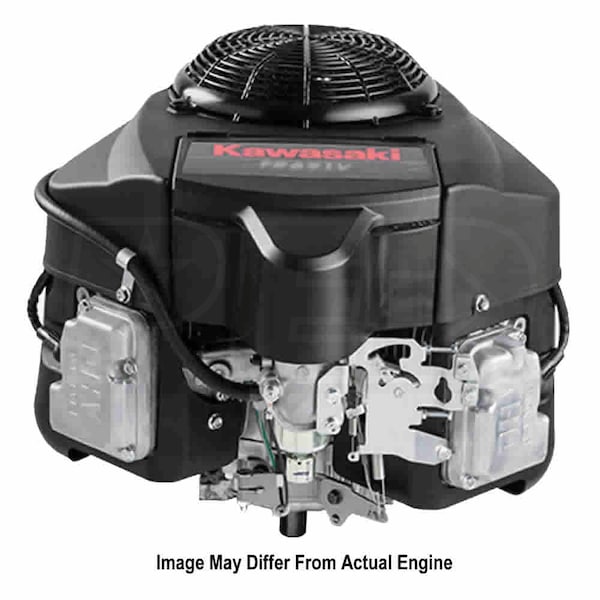

Kawasaki FR691V 726cc 23 HP OHV V-Twin Electric Start Vertical Engine, 1" x 80mm Crankshaft
Model:
FR691V-S00S
+
Share This Product
Features
- FR691V-FS00S - 726cc 23 HP OHV V-Twin Electric Start Vertical Engine, 1" x 3-5/32" (80mm) Crankshaft
- Drilled & Tapped 7/16"-20 ; 3-Year Consumer Warranty
- For Zero-turn riders, lawn tractors & wide-area walk behind mowers
- Kawasaki FR691V Series Air-Cooled OHV V-Twin Critical Power Engine
- SAE Certified for consistent, accurate horsepower; Produces 23 HP @ 3600 RPM
- 90° V-Twin Cylinder Engineering
- Smooth, well-balanced power output in a compact package
- Cast Iron cyclinder liners provide increased protection & longevity
- Overhead V-Valve (OHV) Technology
- For maximum power, quiet operation & ensures low emissions
- Pressurized Lubrication System w/ Spin-On Oil Filter
- 100-Hour Oil & 200-hour filter change intervals for less maintenance
- Single-Element Air Filtration System
- Primary paper filter for more air-particle removal
- Two-Channel Forced Air-Cooling & Rotating Grass Screen
- Prevents overheating while boosting efficiency on even those HOT days
- Recoil Starter & Electronic Spark Ignition
- For reliable, consistent starting and years of dependable usage
- Auto-Compression Release
- Internally vented carburetor with fuel shut-off solenoid
- 15-Amp charging system instead of the clutch coil
- There Is No Muffler Or Fuel Tank On This Engine
- 50-State CARB Compliant
Specifications
FR691V-S00S
Engine
Engine Series
Kawy FR
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
88.2 Lbs
CC
726 CCs
HP
23 HP
Max Torque
39.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
3.0 Inches
Compression Ratio
8.2:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
70.4 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dry (Paper)
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32" (80mm)
Crankshaft End Tapped Size
7/16"-20
PTO Height
10.16 Inches
Overview
Weight
88.2 Pounds
Consumer Warranty
3 Years
Product Length
19.61 Inches
Product Width
18.15 Inches
Product Height
15.44 Inches
Additional Model Numbers
FR691V-FS00S, FR691V-S00S
